| Model No | COB807-A20 |

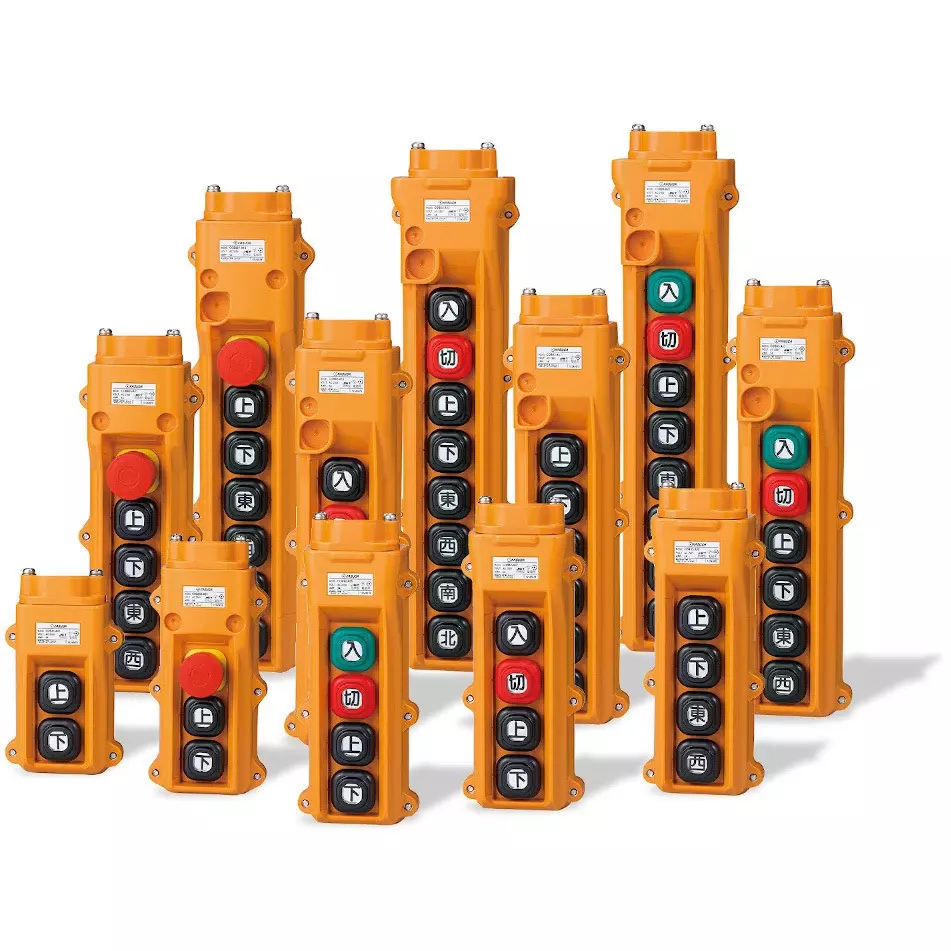

| Type of Product | Operation Push Button Switch |
| Shape | Rainproof type |
| Protection Class | IP65 (JIS C0920) Rainproof type * When using a compatible cable bush, NEMA TYPE 4X |
Model No |
COB807-A20 |
Type of Product |
Operation Push Button Switch |
Shape |
Rainproof type |
Protection Class |
IP65 (JIS C0920) Rainproof type * When using a compatible cable bush, NEMA TYPE 4X |
Standard |
JIS C8201-5-1, NECA C4520, Electrical Appliance and Material Safety Law |
No. of Buttons |
7 |
Monotaro ID |
65104385 |
Contact Configuration |
UN80MK01R (1b), UN80D40 (2A-2A with mechanical interlock), UN80C20 (1A-1A with mechanical interlock)x2 With internal wiring between UN80D40 and UN80C20 |
Country of Origin |
Japan |
Letters on Button |
Release of latch identification direction Top Bottom East West South North |
Rated Operating Current (A) |
2 / 220V, 1 / 440V (AC15 / inductive load) |
Import Country |
Direct Import from Japan |
Rated Operating Voltage (V) |
AC 220/440 |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Correction |
For indirect motor operation |
