| Model No | COB 64 |
| Type of Product | Pushbutton Switch |
| No. of Contacts | 8 |
| Shape | Rainproof type |
Model No |
COB 64 |
Type of Product |
Pushbutton Switch |
No. of Contacts |
8 |
Shape |
Rainproof type |
Protection Class |
IP65 |
Material |
Case tightening screw: Stainless steel (± screw), Cable bushing: Synthetic rubber / Black |
Shock Resistance |
500 m/s |
Monotaro ID |
35058904 |
Contact Configuration |
1a-off-1a-1a-1a-1a-1a-1a |
Relative Humidity |
45 to 85% |
Rated Insulation Voltage (V) |
AC500 |
Country of Origin |
Japan |
Case Material |
High impact ABS resin / orange (equivalent to Munsell 7.5YR7 / 13) |
Conformed Standard |
JIS C 8201-5-1, NECA C4520, JIS C 0920, Electrical Appliance and Material Safety Law PSE (compliant product) |
Mass (Kg) |
0.55000000000000004 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
441-6201 |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Insulation Resistance (MOhm) |
over 100 |
Specifications |
Built-in button packing, for indirect operation, with mechanical interlock |

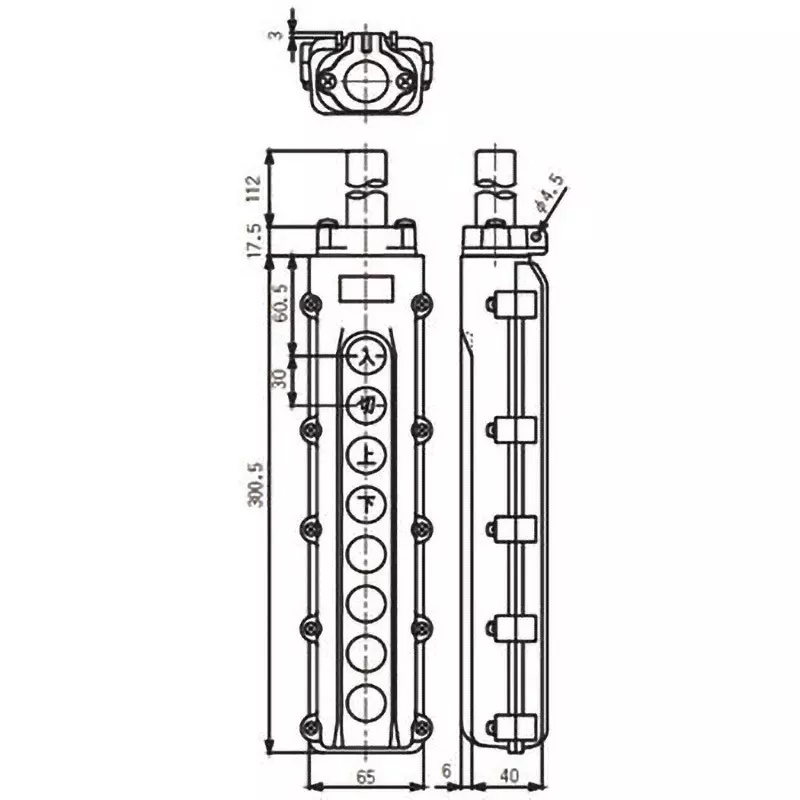

Outer Dimensions (mm) |
H430xW60xD46 |
Correction |
For indirect operation |
Suitable Cable Outer Dia. (Φmm) |
15.7 to 17.1 |
Bushing Part Number |
C17 |
