| Model No | COB83-A14 |
| Type of Product | Operation Push Button Switch |
| Shape | Rainproof type |
| Protection Class | IP65 (JIS C0920) Rainproof type * When using a compatible cable bush, NEMA TYPE 4X |
Model No |
COB83-A14 |
Type of Product |
Operation Push Button Switch |
Shape |
Rainproof type |
Protection Class |
IP65 (JIS C0920) Rainproof type * When using a compatible cable bush, NEMA TYPE 4X |
Standard |
JIS C8201-5-1, NECA C4520, Electrical Appliance and Material Safety Law |
No. of Buttons |
6 |
Monotaro ID |
65104324 |
Contact Configuration |

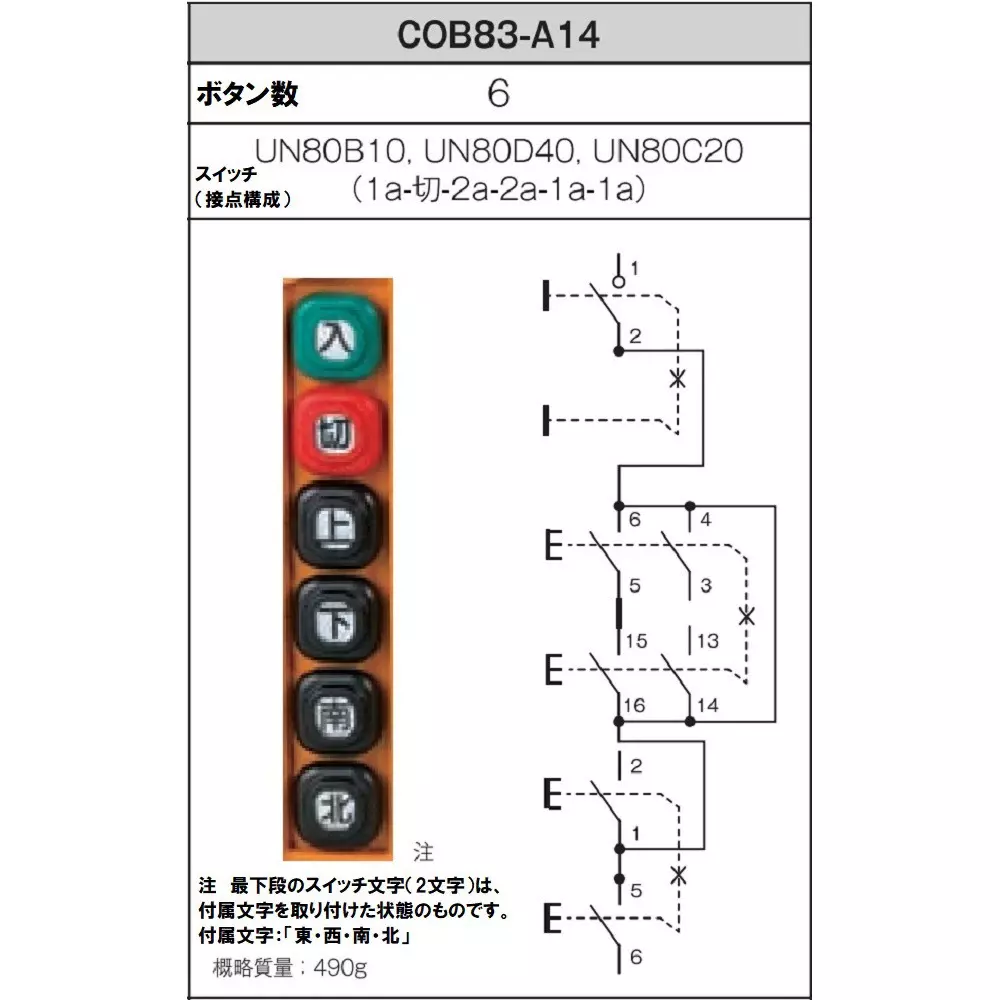

UN80B10 (1A-off), UN80D40 (2A-2A with mechanical interlock), UN80C20 (1A-1A with mechanical interlock) With internal wiring between switch units |
Country of Origin |
Japan |
Letters on Button |
On Off Top Bottom (East West South North is included) |
Rated Operating Current (A) |
2 / 220V, 1 / 440V (AC15 / inductive load) |
Import Country |
Direct Import from Japan |
Rated Operating Voltage (V) |
AC 220/440 |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Correction |
For indirect motor operation |
