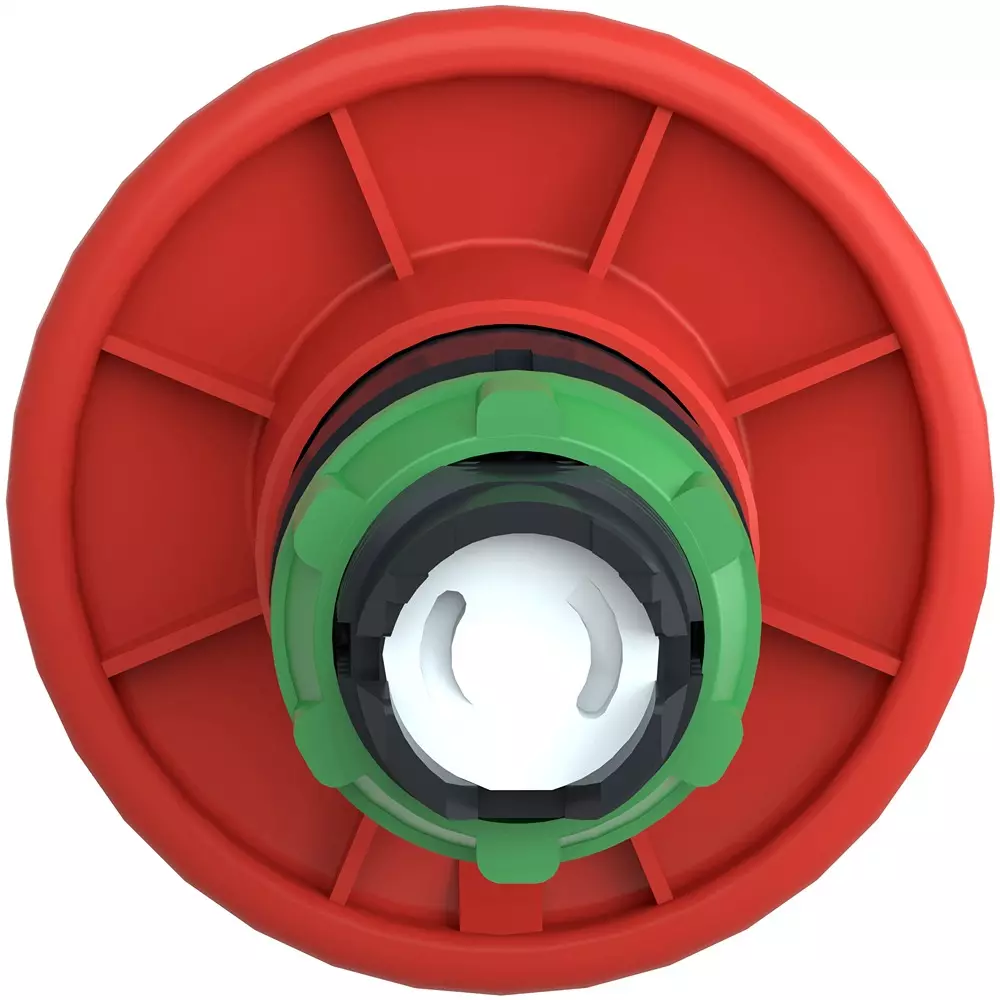

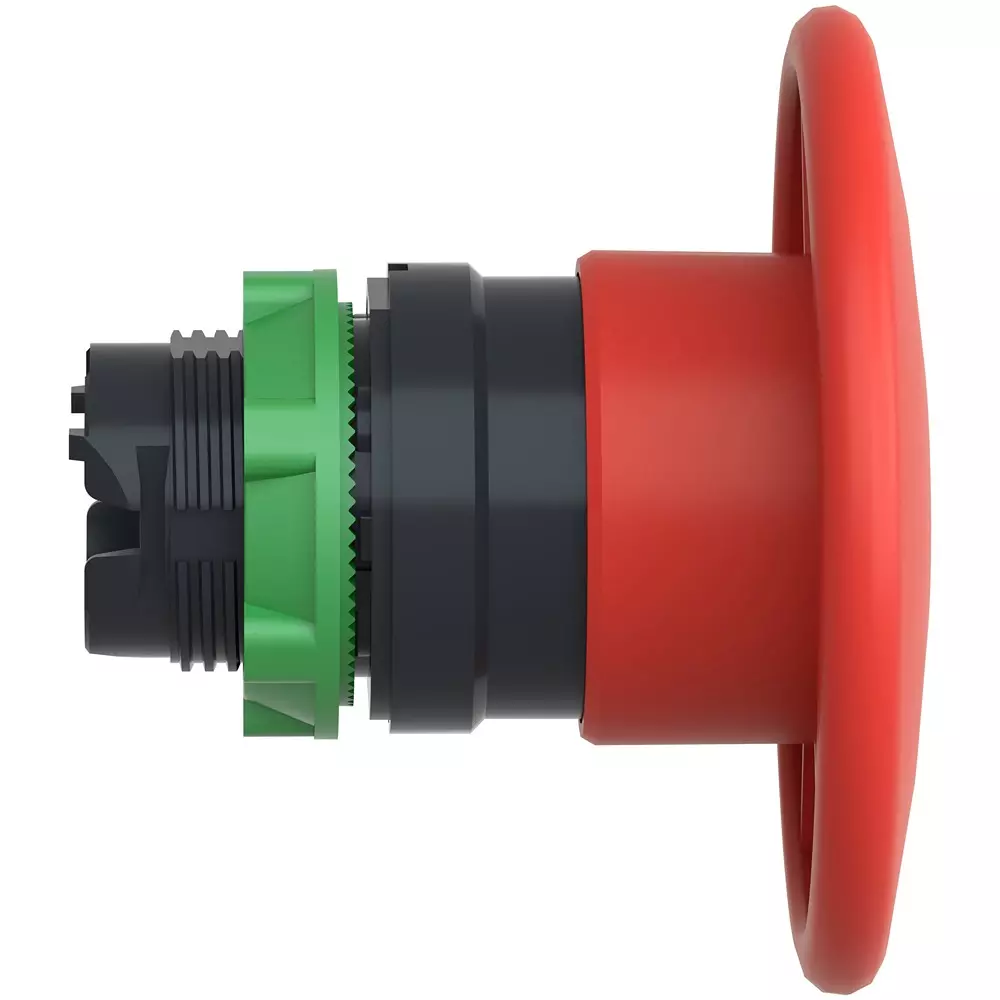

Pro-face Wireless Switch Plastic Head -40 to 70℃ Operating Ambient Temperature 500000.0 Mechanical Life, ZB5AR4

Name: Pro-face Wireless Switch Plastic Head -40 to 70℃ Operating Ambient Temperature 500000.0 Mechanical Life, ZB5AR4
Brand: Pro-face
SKU: IND.PUS.342995265
Price: 2595 INR
Availability: InStock

Visit the Pro-face Store

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Model No	ZB5AR4
Type of Product	Wireless Switch Plastic Head
Vibration Resistance	5gn (f=2 to 500 Hz) Compliant with IEC60068-2-6
Protection Class	(IP) IP66 compliant with IEC 60529, IP67, IP69, IP69K / (NEMA) 13, 4X / (IK) IK03 compliant with IEC 50102

More Pro-face Push Button Switches products More Push Button Switches products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Model No	ZB5AR4
Type of Product	Wireless Switch Plastic Head
Vibration Resistance	5gn (f=2 to 500 Hz) Compliant with IEC60068-2-6
Protection Class	(IP) IP66 compliant with IEC 60529, IP67, IP69, IP69K / (NEMA) 13, 4X / (IK) IK03 compliant with IEC 50102
Standard	JIS, C8201-5-1, CSA, C22.2No14, IEC60947-1, IEC60947-5-1, IEC60947-5-4, UL508, JIS, C8201-1
Series	Harmony XB5
Shock Resistance	30gn (duration = 18 ms) for half-sine acceleration in accordance with IEC60068-2-27; 50gn (duration = 11 ms) for half-sine acceleration in accordance with IEC60068-2-27
Monotaro ID	79445225
Mechanical Life	500000
Protection	TH
Country of Origin	Japan
Import Country	Direct Import from Japan
Head Shape	round
Name of Manufacturer/Packer/Importer	Schneider Electric Holdings Co., Ltd.
Width (mm)	60
Height (mm)	60
Depth (mm)	52
Operation Ambient Temperature (°C)	-40 to 70
Specifications	●Operator type: Spring return ●Operator profile: Red mushroom ●60 mm, unmarked ●Electrical configuration code: C1: For less than 9 contacts using a single block with front mounting, C2: For less than 9 contacts using single and double blocks with front mounting, C11: For less than 3 contacts using a single block with front mounting, C15: For less than 1 contact using a single block with front mounting ●High-pressure washer resistance: 7000000Pa, 55●, distance: 0.1m
Correction	Non-illuminated push button head
Mounting diameter (Φmm)	22
Operating Ambient Temperature	-40 to 70℃
Various Certifications	CSA, DNV, BV, LROS, UL listed
Over Voltage Protection	Class II according to IEC60536
