| Model No | ZB5AA72124 |
| Type of Product | Wireless Switch Plastic Head |
| Protection Class | IP67, IP69, IP69K |
| Standard | JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60947-1, IEC 60947-5-4, JIS C8201-1 |
Model No |
ZB5AA72124 |
Type of Product |
Wireless Switch Plastic Head |
Protection Class |
IP67, IP69, IP69K |
Standard |
JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60947-1, IEC 60947-5-4, JIS C8201-1 |
Series |
ZB5 |
Operating Temperature Range |
-25 to 70℃ |
Monotaro ID |
79445469 |
Mechanical Durability |
1,000,000 cycles |
Compatibility |
Integral LED |
Country of Origin |
Japan |
Mass (Kg) |
2.3E-2 |
Import Country |
Direct Import from Japan |
Head Shape |
Shape of signaling unit/Rectangular |
Storage Temperature Range |
-40 to 70℃ |
Name of Manufacturer/Packer/Importer |
Schneider Electric Holdings Co., Ltd. |
Width (mm) |
30 |
Height (mm) |
50 |
Depth (mm) |
35 |
Specifications |
Number of transmitters: 2 |
Correction |

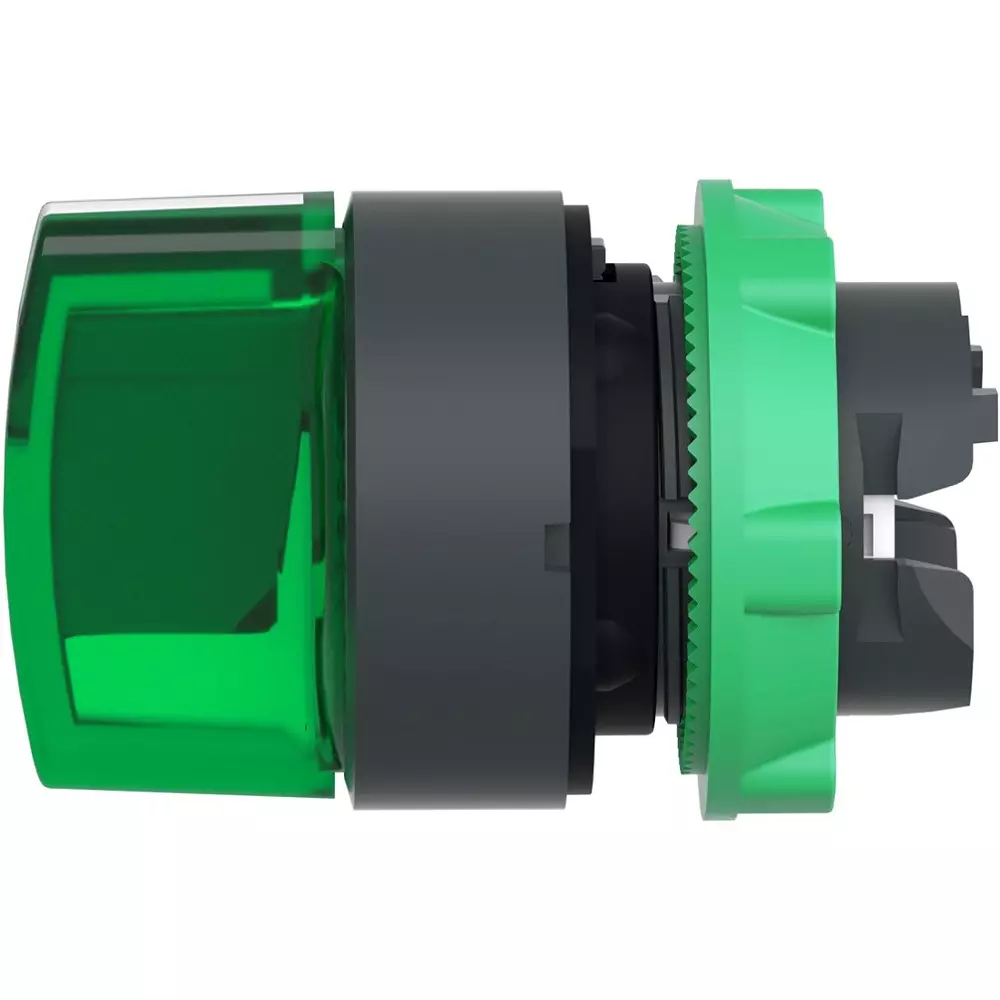

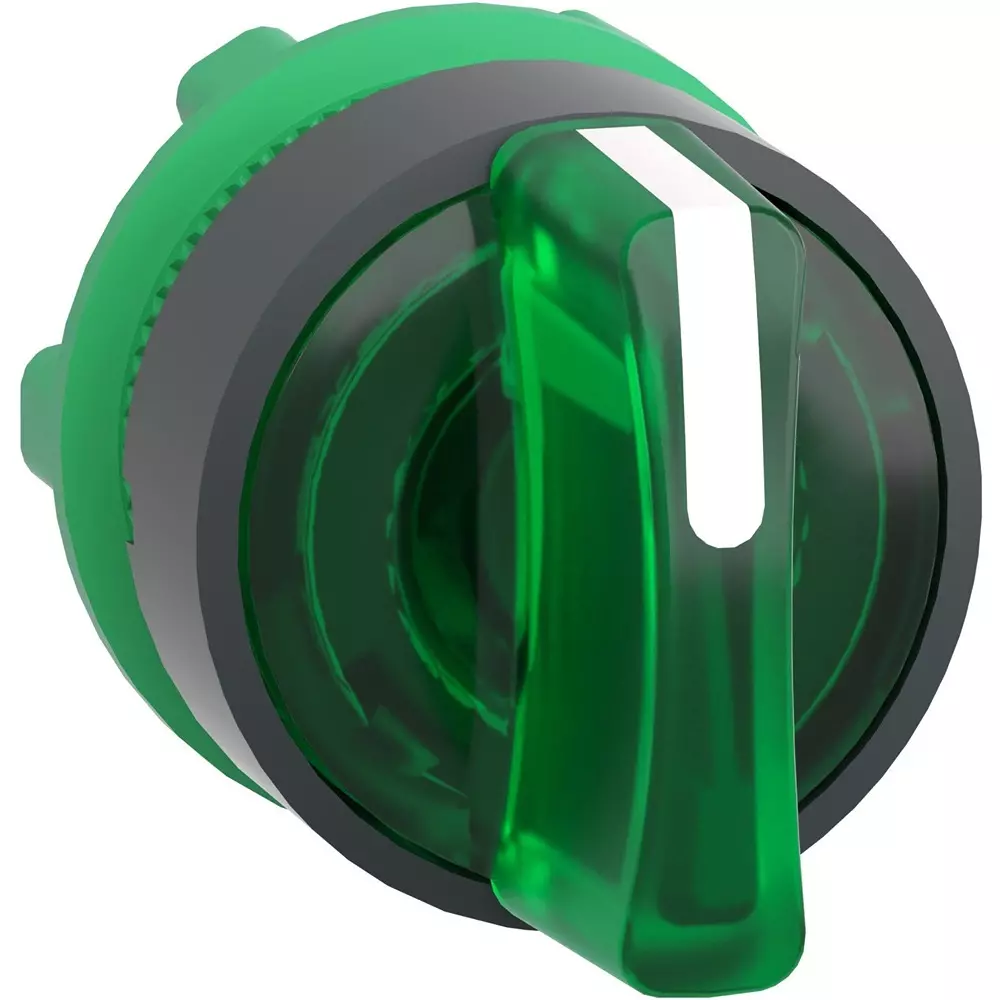

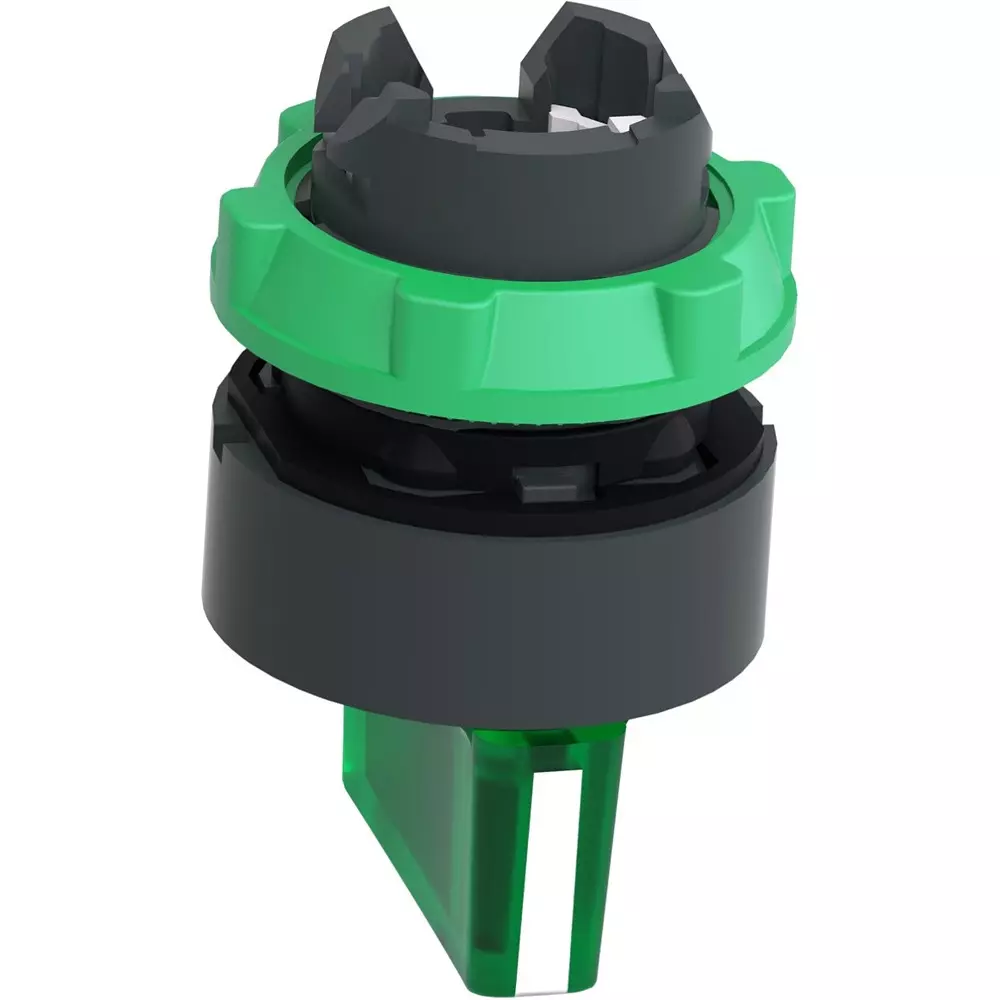

Plastic Head Illuminated Selector Switch |
Conform to |
ZBRV1 |
Mounting dimensions (max rb) (mm) |
22 mm |
operations type |

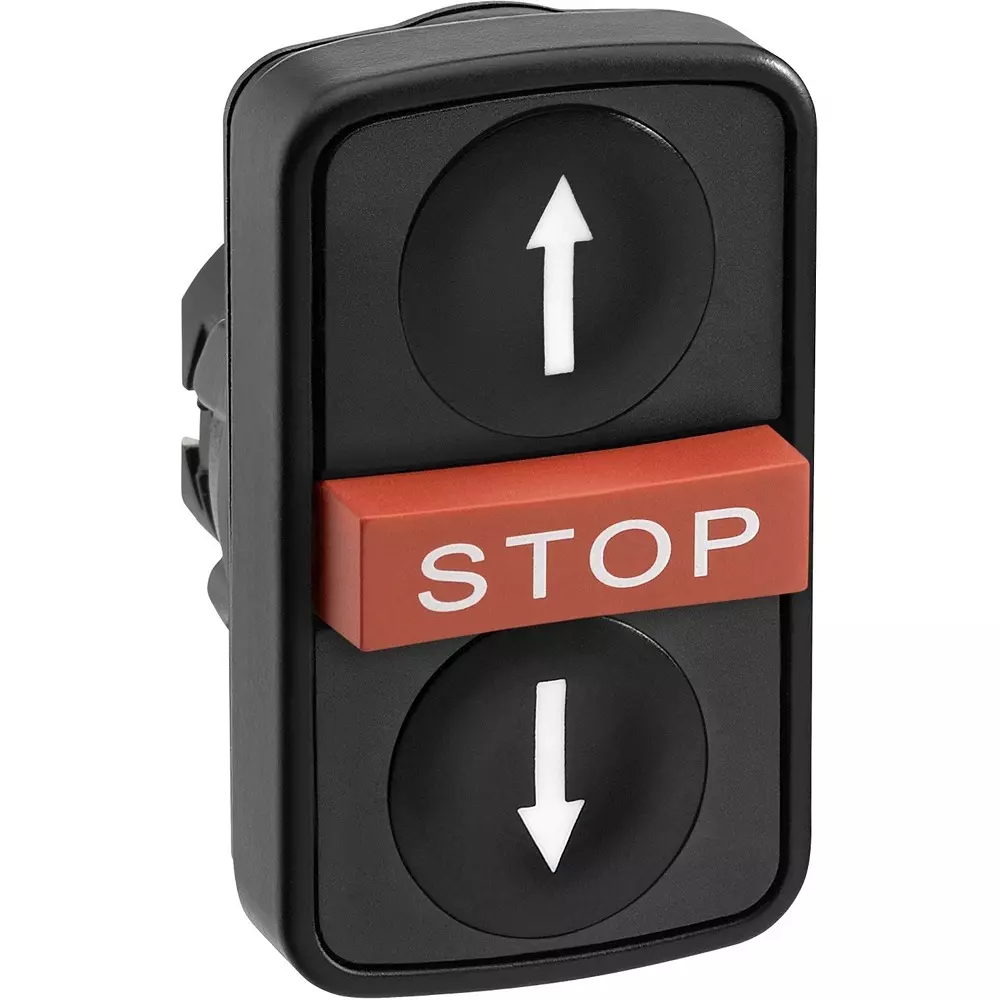

description, Black ''up arrow''-black ''down arrow''-red ''STOP'' |
