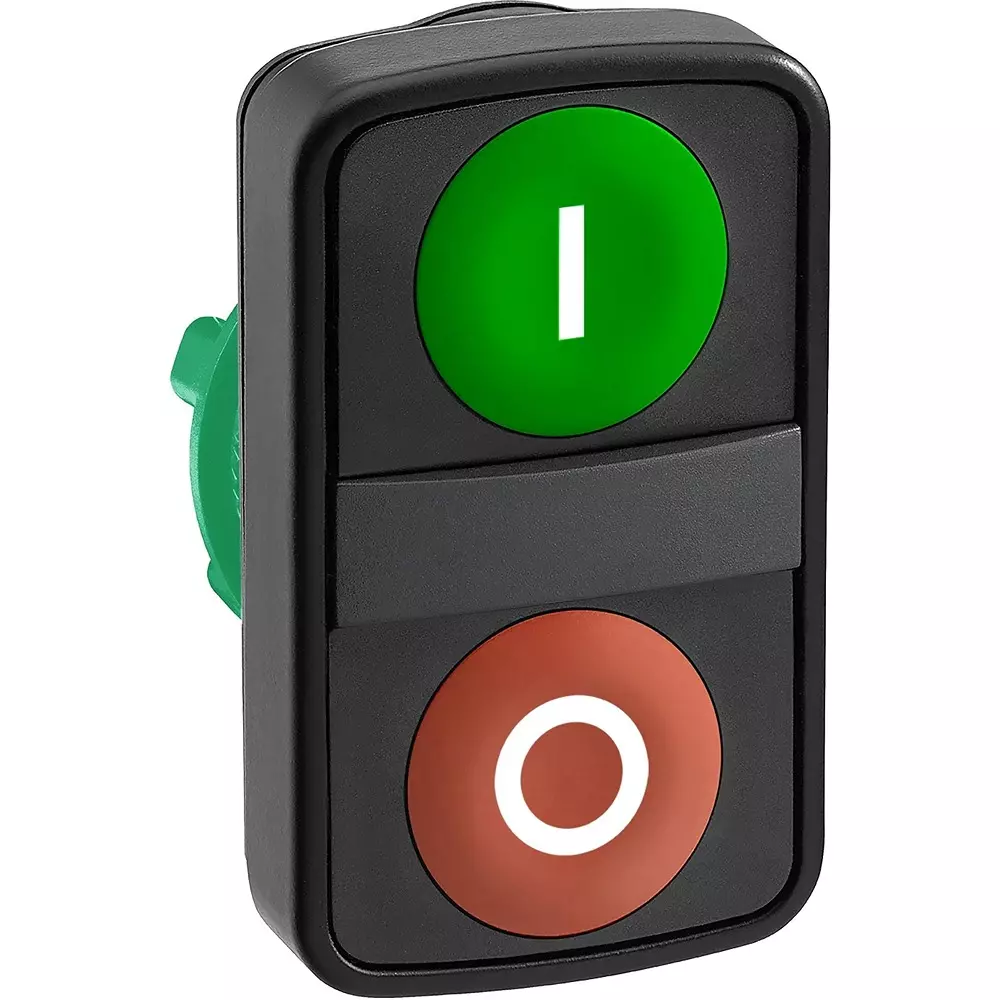

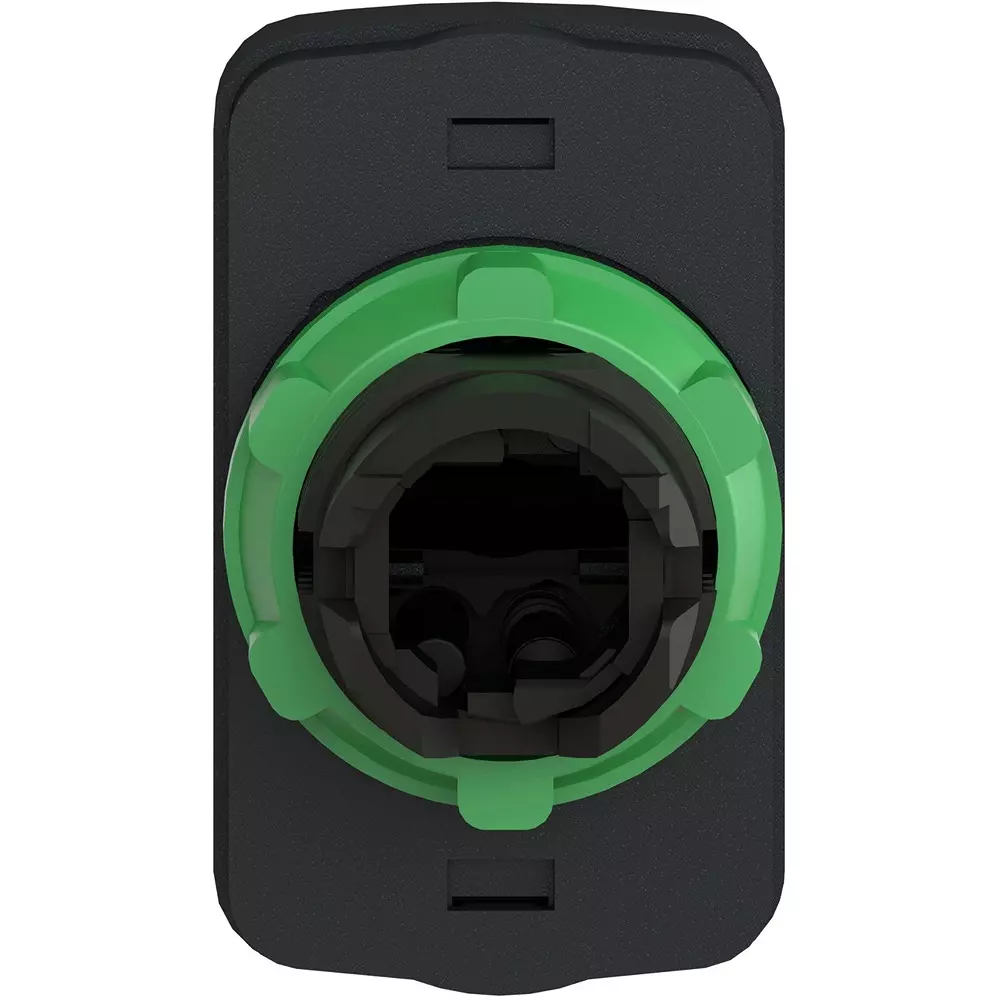

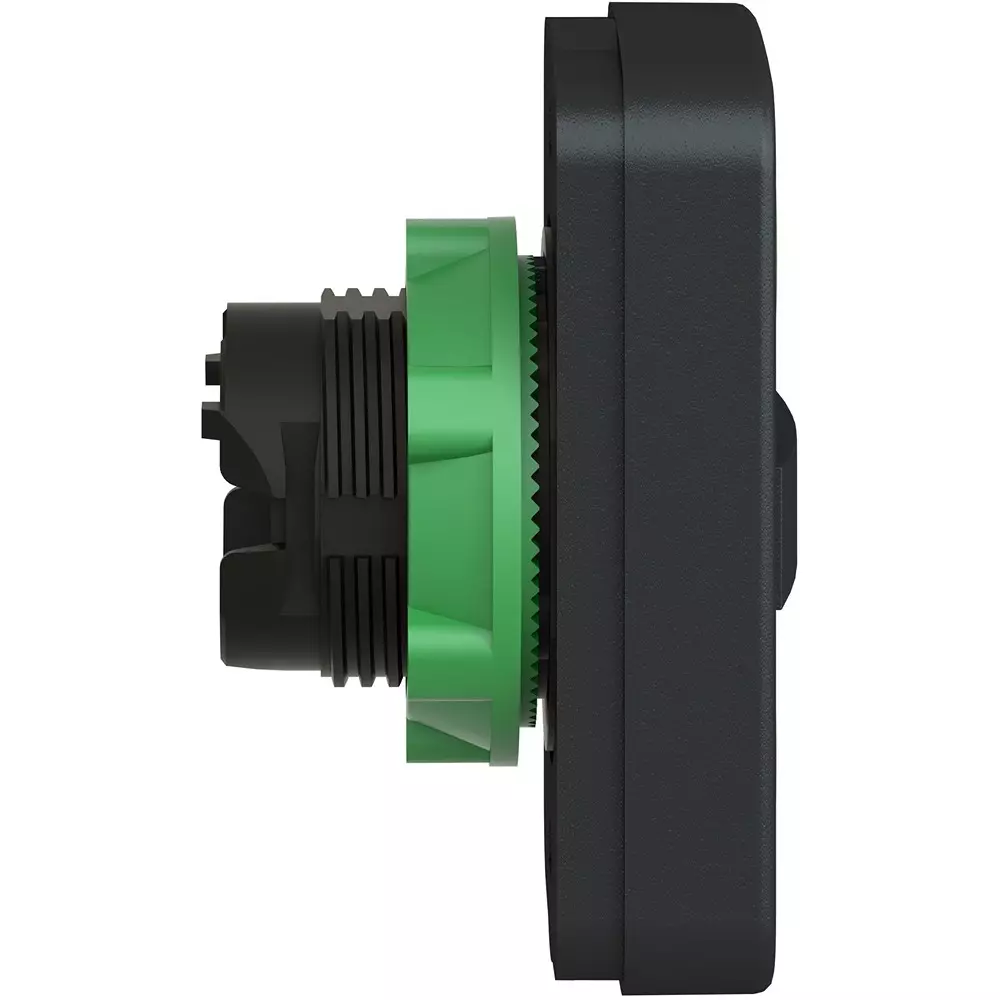

| Model No | ZB5AA7341 |
| Type of Product | Wireless Switch Plastic Head |
| Protection Class | IP66 IEC 60529, IP69K IEC 60529 |
| Standard | JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, UL 508, IEC 60947-5-4, JIS C8201-1 |
Model No |
ZB5AA7341 |
Type of Product |
Wireless Switch Plastic Head |
Protection Class |
IP66 IEC 60529, IP69K IEC 60529 |
Standard |
JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, UL 508, IEC 60947-5-4, JIS C8201-1 |
Series |
ZB5 |
Operating Temperature Range |
-25 to 70℃ |
Monotaro ID |
79445530 |
Mechanical Durability |
1,000,000 cycles |
Country of Origin |
Japan |
Operation Mechanism |
2 flush push-buttons |
Mass (Kg) |
2.3E-2 |
Import Country |
Direct Import from Japan |
Head Shape |
Shape of signaling unit/Rectangular |
Storage Temperature Range |
-40 to 70℃ |
Name of Manufacturer/Packer/Importer |
Schneider Electric Holdings Co., Ltd. |
Width (mm) |
30 |
Height (mm) |
50 |
Depth (mm) |
30 |
Specifications |
●Depth: 30 mm●Height: 50 mm●Width: 30 mm●Number of transmitters: 2●Not compatible with ZBRV1 |
Correction |
Plastic head x2 |
Mounting dimensions (max rb) (mm) |
22 mm |
operations type |
Green ''I''-Red ''O'' |
