| Model No | ZB5AK1513 |

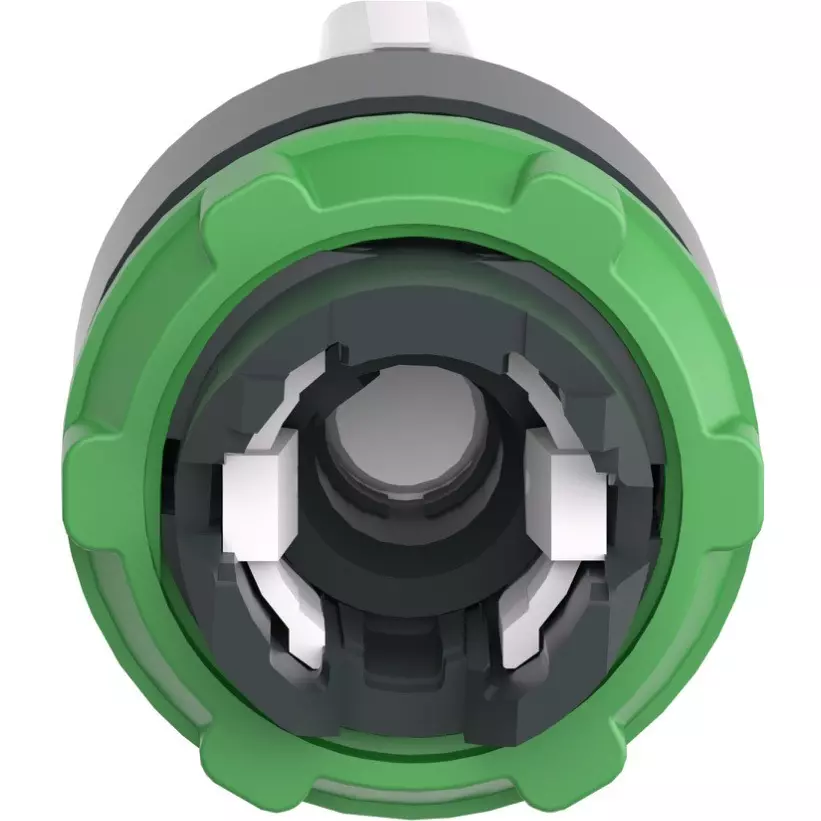

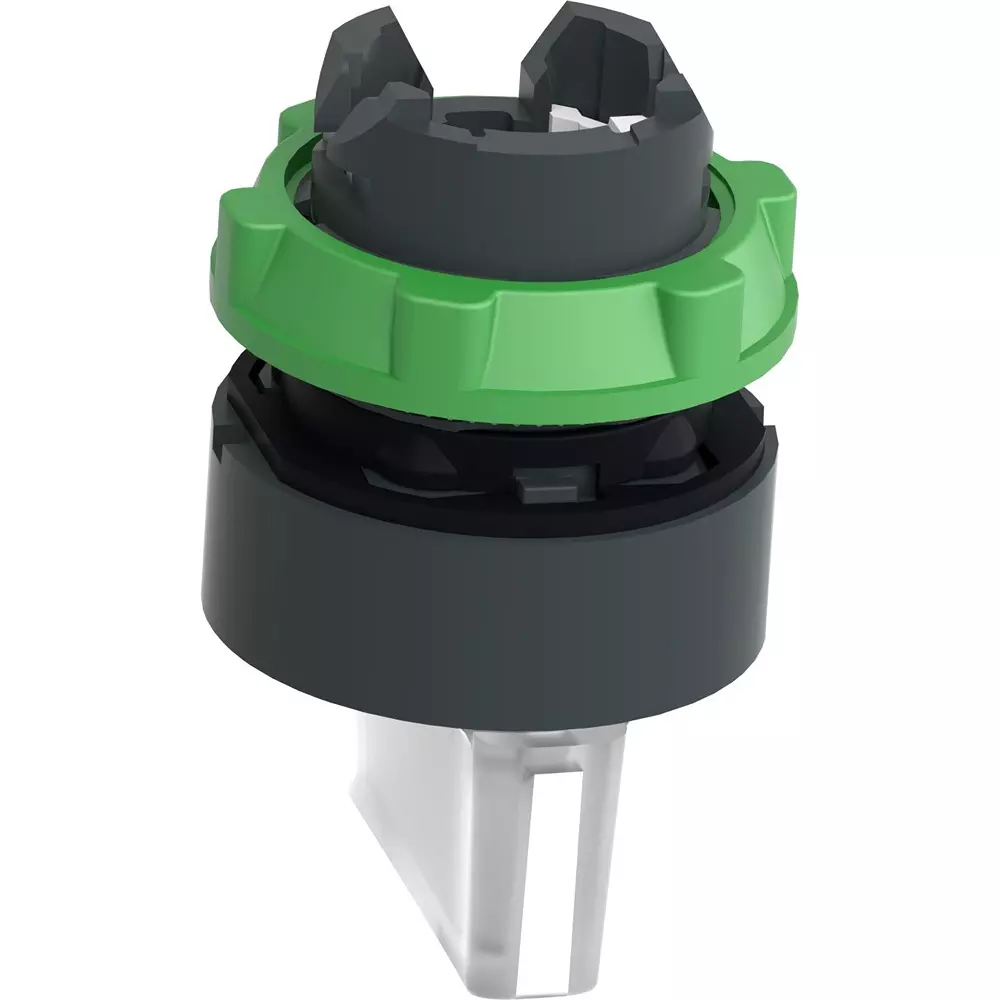

| Type of Product | Wireless Switch Plastic Head |
| Protection Class | IP66 IEC 60529, IP67, IP69, IP69K |
| Standard | EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-5-5, EN/IEC 60947-1, UL 508, JIS C8201-1 |
Model No |
ZB5AK1513 |
Type of Product |
Wireless Switch Plastic Head |
Protection Class |
IP66 IEC 60529, IP67, IP69, IP69K |
Standard |
EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-5-5, EN/IEC 60947-1, UL 508, JIS C8201-1 |
Series |
ZB5 |
Operating Temperature Range |
-40 to 70℃ |
Monotaro ID |
79445584 |
Mechanical Durability |
500,000 cycles |
Compatibility |
Integral LED |
Country of Origin |
Japan |
Mass (Kg) |
1.6E-2 |
Import Country |
Direct Import from Japan |
Head Shape |
Shape of signaling unit/Round |
Storage Temperature Range |
-40 to 70℃ |
Name of Manufacturer/Packer/Importer |
Schneider Electric Holdings Co., Ltd. |
Width (mm) |
29 |
Height (mm) |
29 |
Depth (mm) |
43 |
Specifications |
Number of transmitters: 2 |
Diameter (Φmm) |
28.5 |
Correction |

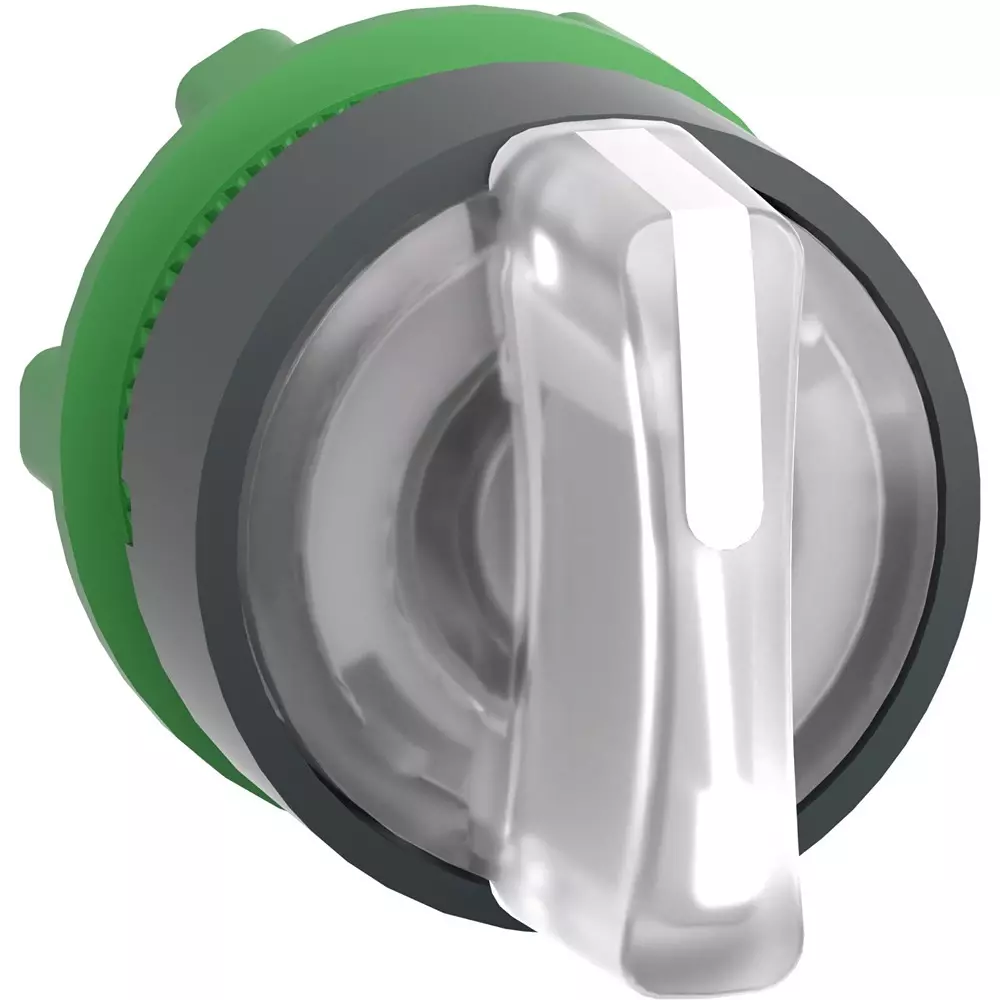

Plastic Head Illuminated Selector Switch |
Conform to |
ZBRV1 |
Mounting dimensions (max rb) (mm) |
22 mm |
