| Model No | PFXZCCEUSG1 |
| Type of Product | Illumination Switch |
| Vibration Resistance | JISB3502, IEC/EN61131-2 compliant, 5-9Hz single amplitude: 3.5 mm, 9-150Hz constant acceleration: 9.8m/s2, 10 cycles each in X, Y, Z directions (100 minutes) |
| Protection Class | IP65 equivalent NEMA#250TYPE4X/13 (front surface when panel is embedded) |
Model No |
PFXZCCEUSG1 |
Type of Product |
Illumination Switch |
Vibration Resistance |
JISB3502, IEC/EN61131-2 compliant, 5-9Hz single amplitude: 3.5 mm, 9-150Hz constant acceleration: 9.8m/s2, 10 cycles each in X, Y, Z directions (100 minutes) |
Protection Class |
IP65 equivalent NEMA#250TYPE4X/13 (front surface when panel is embedded) |
Shock Resistance |
Compliant with IEC/EN61131-2, 147m/s ², 3 times each in X/Y/Z directions |
Mass (g) |
110 or less |
Allowable Voltage Range |
DC 4.75 to 5.25 V |
Monotaro ID |
19435352 |
Pollution Degree (Environment to Use) |
Pollution degree 2 |
Country of Origin |
Japan |
Rated Voltage (V) |
DC5 (USB bus power) |
Power Consumption (W) |
2 or less |
Import Country |
Direct Import from Japan |
Durability |
[Switch] More than 1 million times |
Name of Manufacturer/Packer/Importer |
Schneider Electric Holdings Co., Ltd. |
No. of Switches |

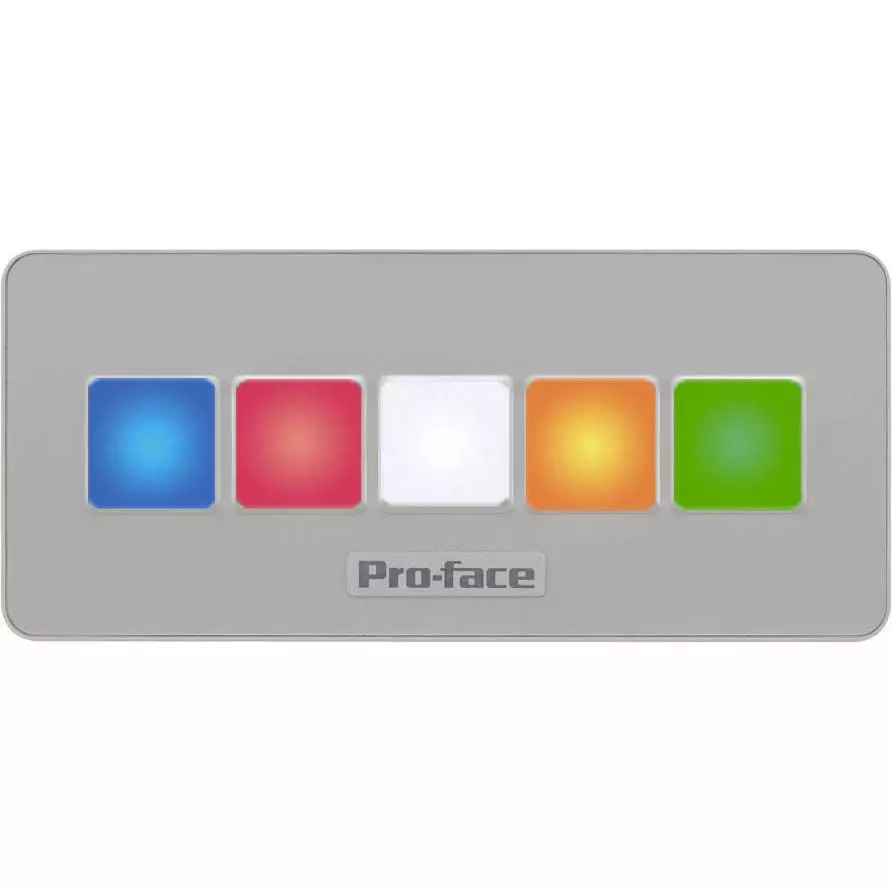

5 LED illuminated switches |
Specifications |
[Dust] 0.1 mg/m <sup>3</sup> or less (no conductive dust), [Fast transient/burst noise] IEC61000-4-4//Power port: 2kV/(display power supply section)/Co mmunication port: 1kV, [Nameplate sheet] Printable/replaceable |
Cable Length (m) |
[Included USB cable] 1 |
Temperature/Humidity Range for Storage |
-20 to 60°C / 10 to 90% RH (non-condensing / wet-bulb temperature below 39°C) |
Operating Temperature / Humidity Range |
0 to 55?/10 to 90%RH (no condensation/wet bulb temperature 39? or less) |
Altitude (m) |
2000(6,561ft) or less |
Electrostatic Discharge Resistance |
IEC/EN61000-4-2 Contact discharge: 6kV Air discharge: 8kV |
Outer Dimensions |
122x28x54 mm |
Compatible Software |
GP-ProEXVer.3.1 or higher (GP4000, GP4000M)/GP-ProEXVer.3.12 or higher (LT4000M)/GP-ProEXVer.4.0 or higher (SP5000, WinGP) |
Connector Specifications |
USBI/F: TypeB (socket), USB2.0 |
Dimming Method |
[Led Illuminated Switch] Can Be Set From 6 Colors: Red, Green, Yellow, Blue, White, And Orange |
