| Model No | 820-7521 |
| Type of Product | Miniature Push Button Switch |
| Contact Material | Copper Alloy |
| Monotaro ID | 40922438 |
Model No |
820-7521 |
Type of Product |
Miniature Push Button Switch |
Contact Material |
Copper Alloy |
Monotaro ID |
40922438 |
Button Color |
Clear |
Contact Configuration |
Spst |
Country of Origin |
Japan |
Rated Voltage (V) |
DC 30 |
RoHS Directive |
Correspondence |
Case Color |
Black |
LED Color |
Red |
Import Country |
Direct Import from Japan |
Cutout Diameter |
(Panel) 8 mm |
Operating Patterns |
Momentary |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Contact Rated Current |
100 mA @30 mA V DC |
Surface Mount Device |
PCB |
Specifications |

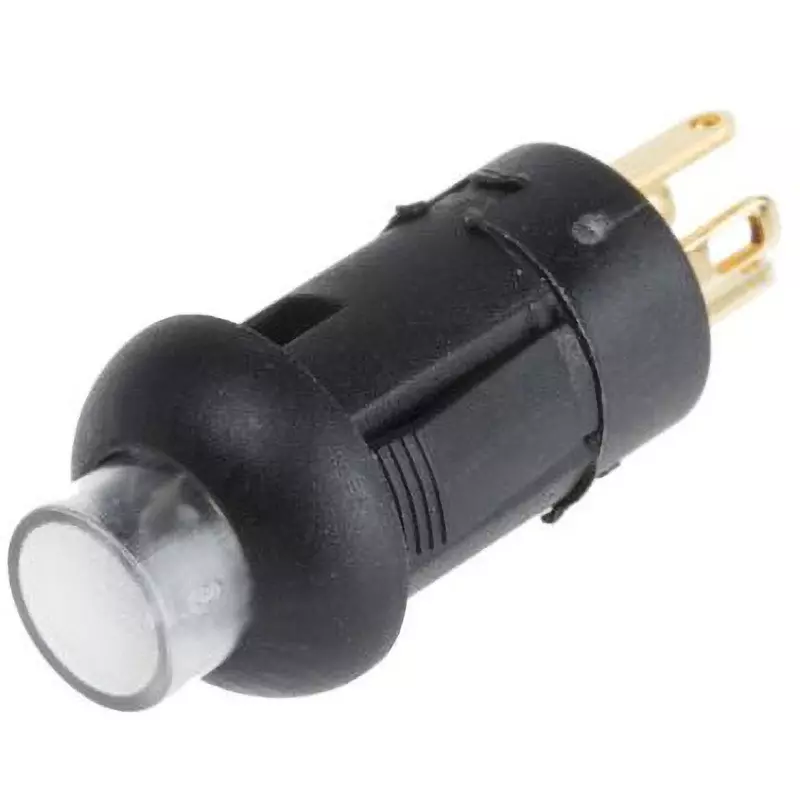

Miniature pushbutton switch, a small snap-in pushbutton switch with an overall length of 23 mm. Available with a solid black or illuminated clear actuator. Illuminated versions are available in blue, green, yellow, white, and red. A two-color version is also available in blue and green. Features and Benefits: Gold-plated copper alloy contacts, 8 mm panel cutout diameter, normally open contacts |
Contact Rated Voltage (V) |
DC 30 |
Belt-End Finish |
Pc Pin |
Lighting |
Yes |
