| Model No | 111-5786 |
| Type of Product | Push Button Switch |
| Actuator Type | Round Type |
| Protection Class | Ip67 |
Model No |
111-5786 |
Type of Product |
Push Button Switch |
Actuator Type |
Round Type |
Protection Class |
Ip67 |
Contact Material |
Copper |
Operating Temperature Range |
-20 to 55℃ |
Monotaro ID |
41200697 |
Button Color |
Silver |
Contact Configuration |
Dpdt |
Country of Origin |
Japan |
Rated Voltage (V) |
AC 250 |
RoHS Directive |
Correspondence |
Contact Current Rating |
5 Amp |
Case Color |
Natural |
LED Color |
Blue |
Import Country |
Direct Import from Japan |
Cutout Diameter |
(Panel) 19.2 mm |
Operating Patterns |
Momentary |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Surface Mount Device |
Panel Mount |
Specifications |

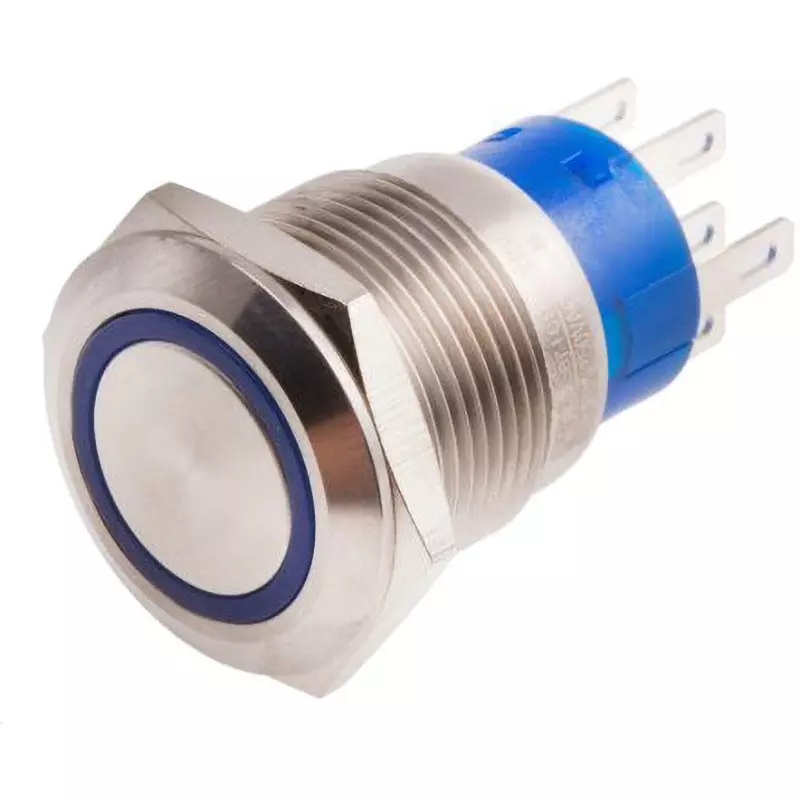

RS Pro 19mm Stainless Steel DPDT Momentary Push Button, Features and Benefits: IP67 rated, short length for space-constrained applications, silver-plated copper contacts for a secure connection. Typical applications: medical equipment, industrial control equipment, communications equipment, high-end hobby switches. |
Contact Rated Voltage (V) |
AC 250 |
Belt-End Finish |
Solder Pin |
Lighting |
Yes |
