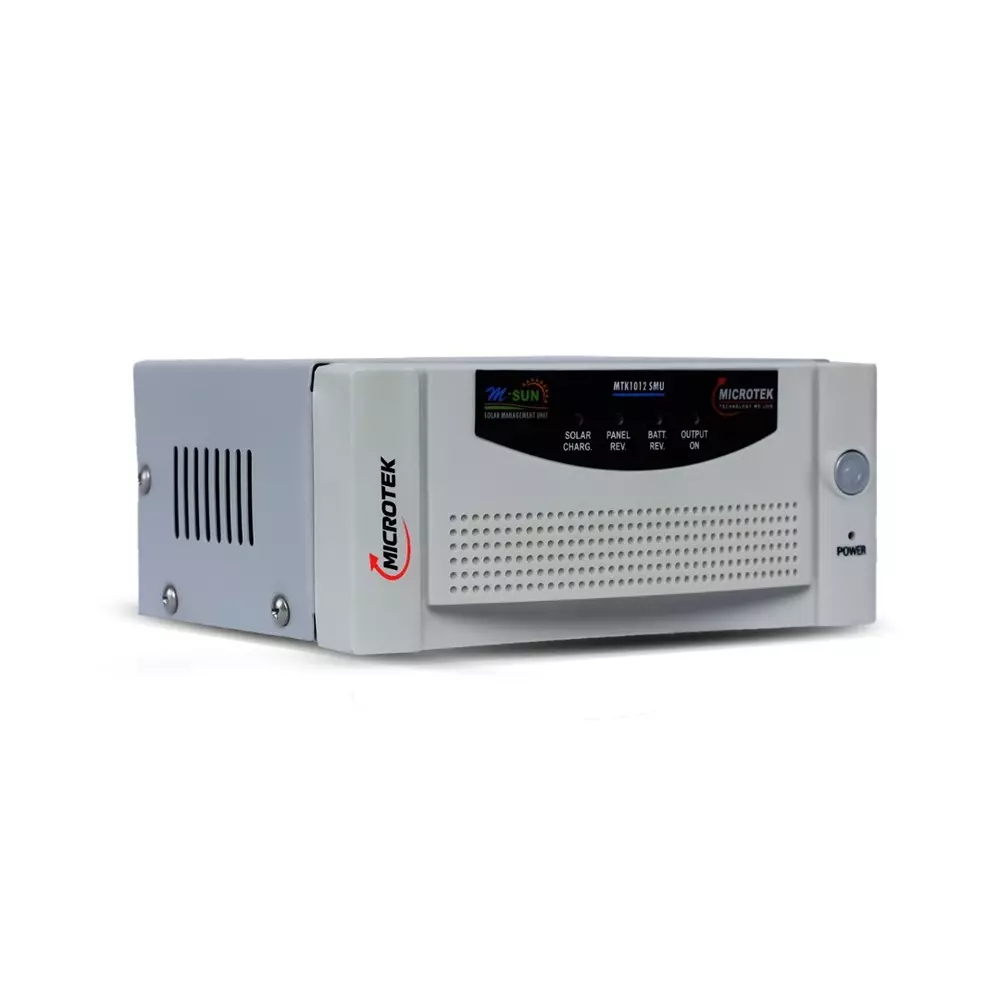

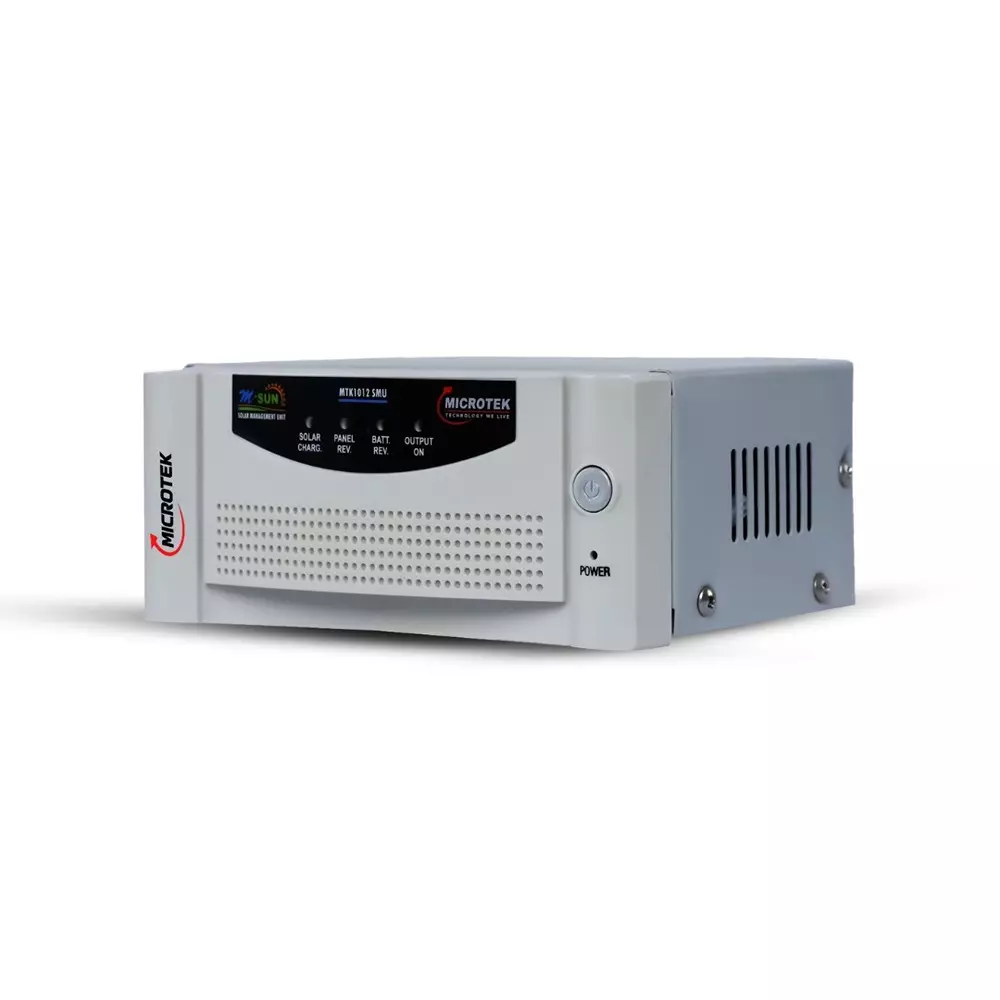

| Type of Product | Solar Management Unit |
| Model No | SMU M-SUN 1012 |
| LED Indicator | Solar Charging, Panel Reverse, Battery Reverse, Output ON |
| Features | Automatic voltage selection for 12V or 24V, Mosfet Switching System |
Type of Product |
Solar Management Unit |
Model No |
SMU M-SUN 1012 |
LED Indicator |
Solar Charging, Panel Reverse, Battery Reverse, Output ON |
Features |
Automatic voltage selection for 12V or 24V, Mosfet Switching System |
Efficiency (%) |
99% Peak Charger |
Weight |
1.4 Kg |
Charging Current |
10 A |
Item Code |
899-200-1012 |
Front Panel Switches |
NORMAL: Default Position, Solar Charging & Mains Control BYPASS: Solar Charging & Main Bypass |
System Voltage |
12 VDC |
Connection |
TERMINAL BLOCK: For Solar Panel & Battery Connections MAINS IN: 1mm Power Cord With 16A Molded PlugMain Out:15A Power Outlet |
Warranty Duration |
1 Year |
Country of Origin |
India |
Output Voltage |
12VDC |
Name of Manufacturer/Packer/Importer |
Sharma Trading Company |
Open Circuit Voltage |
22 V |
Compatibility |
120 Wp Max.Solar Panel Capacity |
