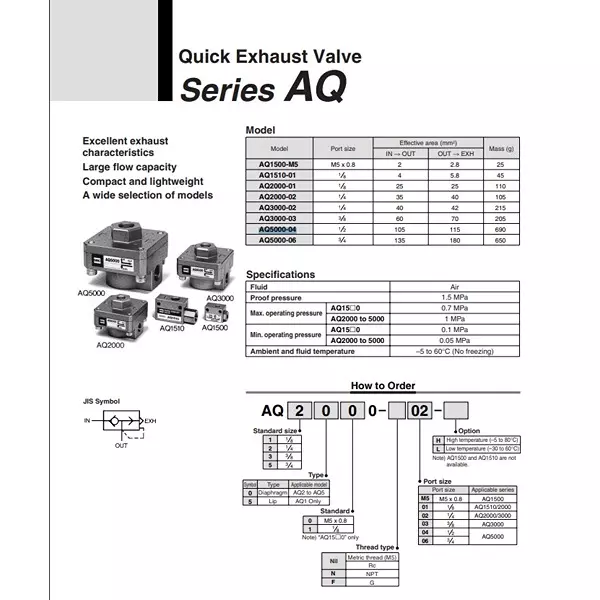

| Type of Product | Quick Exhaust Valve |
| Model No | AQ2000-01 |
| Port size | 3.175 mm |
| Size | 1/4 inch |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Quick Exhaust Valve |
Model No |
AQ2000-01 |
Port size |
3.175 mm |
Size |
1/4 inch |
Material |
Aluminum Diecast |
Type |
Diaphragm |
Connection Size |
M5X0.8 |
Operating Pressure Range |
0.05～1 MPa |
Operating Temperature Range |
Standard (-5 to 60°C) |
Effective Section Area |
25 mm² |
Input Side |
Female Thread Port Type P (P1) |
Exhaust |
Female Thread (Exhaust Side, Port Type R) |
Thread Type |
Metric Thread (M5)/Rc |
Sonic Conductance |
5 dm³/(s/bar) |
Output Side |
Female Thread (Port Type A) |
Seal Material |
Nitrile Rubber |
Size (mm) |
6.35 mm |
