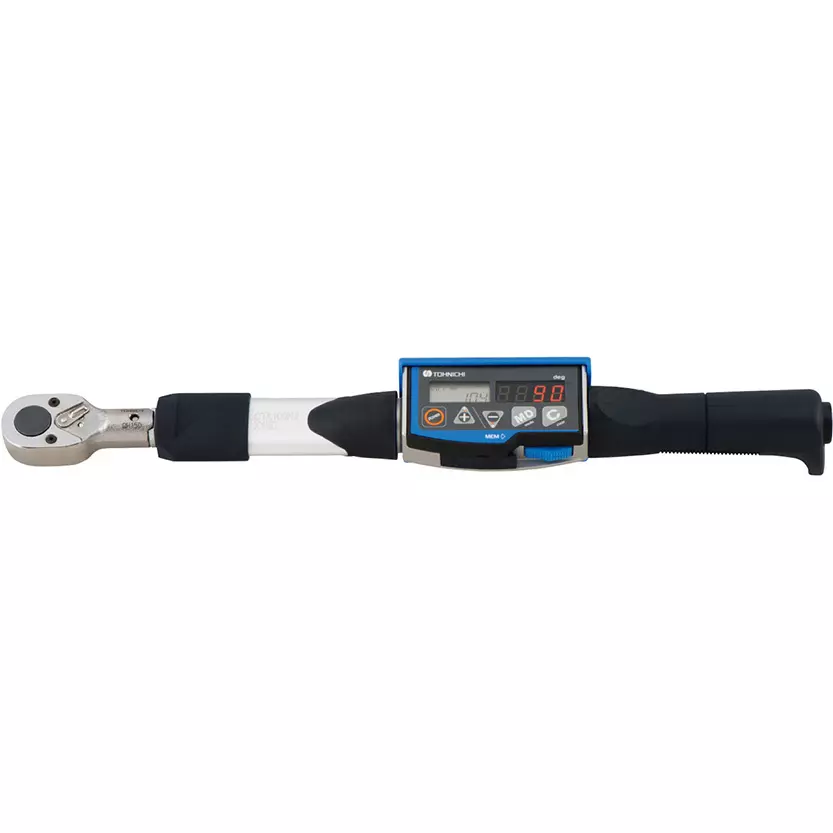

| Type of Product | Digital Angle Wrench |
| Model No | CTA100N2X15D |
| Country of Origin | Japan |
| Application | Rotation angle method Small rod production, maintenance, and after-sales service for tightened parts |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Digital Angle Wrench |
Model No |
CTA100N2X15D |
Country of Origin |
Japan |
Application |
Rotation angle method Small rod production, maintenance, and after-sales service for tightened parts |
Name of Manufacturer/Packer/Importer |
Tohnichi Manufacturing Co., Ltd. |
Overall Length (mm) |
384 |
Monotaro ID |
65400589 |
Mass (Kg) |
About 0.63 |
RoHS Directive |
Correspondence |
Accuracy (%) |
Torque: ± 1 |
Compatible replacement head |
(SH/RH/QH/RQH/HH/DH)15D |
Import Country |
Direct Import from Japan |
Torque Adjustment Range (Nm) |
(5)20 to 100 |
Angle Measurement Range |
0 to 999°, (1digit)1 |
Angular Accuracy (°) |
± 2 + 1digit (However, when 90 rotations are performed from 30 / s to 180 / s) |
Torque Adjustment Per 1 Scale (Nm) |
0.1 |
Operation Force at Maximum Torque (N) |
275.5 |
Effective Length (mm) |
363 |
