| Model No | 10226-6202PL |
| No. of Pole | 26 |
| Monotaro ID | 8581273 |

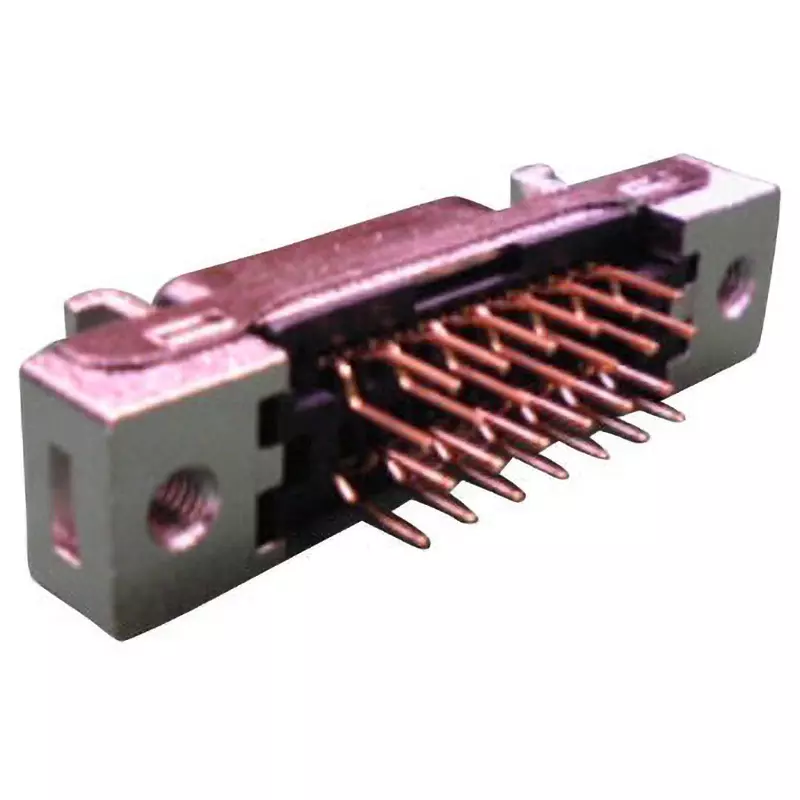

| Type of Product | Receptacle |
Model No |
10226-6202PL |
No. of Pole |
26 |
Monotaro ID |
8581273 |
Type of Product |
Receptacle |
Type |
Miniature Delta Ribbon System |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Voltage |
AC 150 / DC 200 V (max) |
Material |
Contact: Copper alloy, nickel base gold plating (tail flash gold plating), Body and contact alignment plate: Glass reinforced polyester shroud: Steel nickel plating Lock stand: Zinc alloy die cast nickel plating |
Name of Manufacturer/Packer/Importer |
3M Japan Limited |
Dimension H (Φmm) |
27.6 |
Dimension F (Φmm) |
24.8 |
Dimension B (Φmm) |
31.26 |
Dimension E (Φmm) |
27.2 |
Specifications |
Contact part gold plating thickness 0.2μm or more |
Ambient Temperature (℃) |
-55 to +85 (Temperature range that can be used continuously under maximum load conditions) |
Dimension C (Φmm) |
37.200000000000003 |
Current (A) (50/60Hz) |
Up to 0.5 |
Installation |
Panel: Screw fixing M2.6, Base: Screw fixing M2.6 |
Applicable Connector |
MDR plug |
Suitable Circuit Board Thickness (mm) |
1.6 to 2.4 |
Dimension A (Φmm) |
15.24 |
Dimension D (Φmm) |
20.2 |
Dimension G |
17.2 mm |
