| Model No | D/MS3102A16S-5P |
| No. of Pole | 3 |
| Monotaro ID | 34596606 |

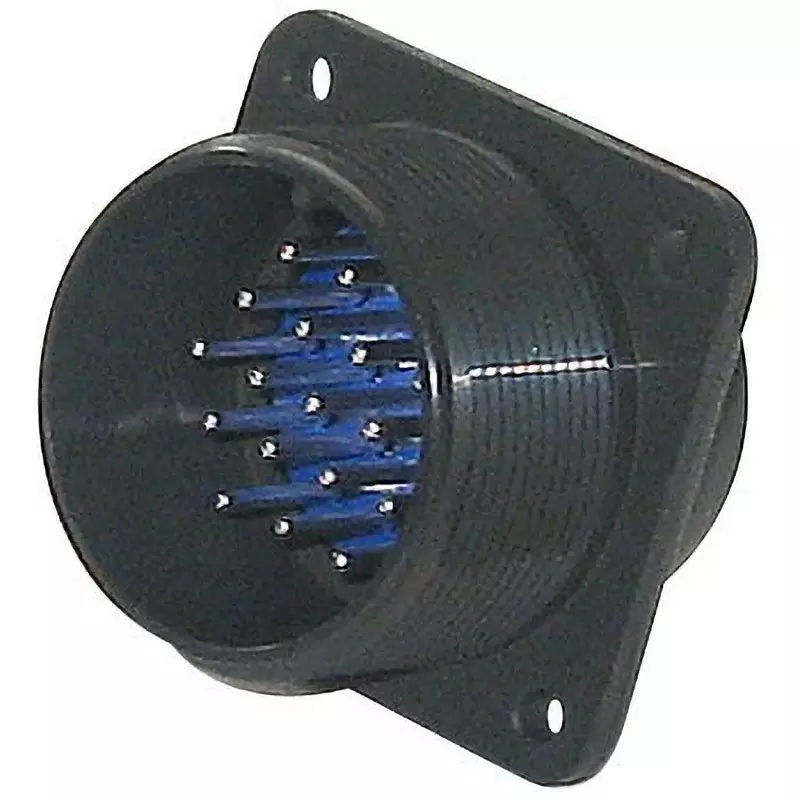

| Type of Product | Box Receptacle |
Model No |
D/MS3102A16S-5P |
No. of Pole |
3 |
Monotaro ID |
34596606 |
Type of Product |
Box Receptacle |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
16S |

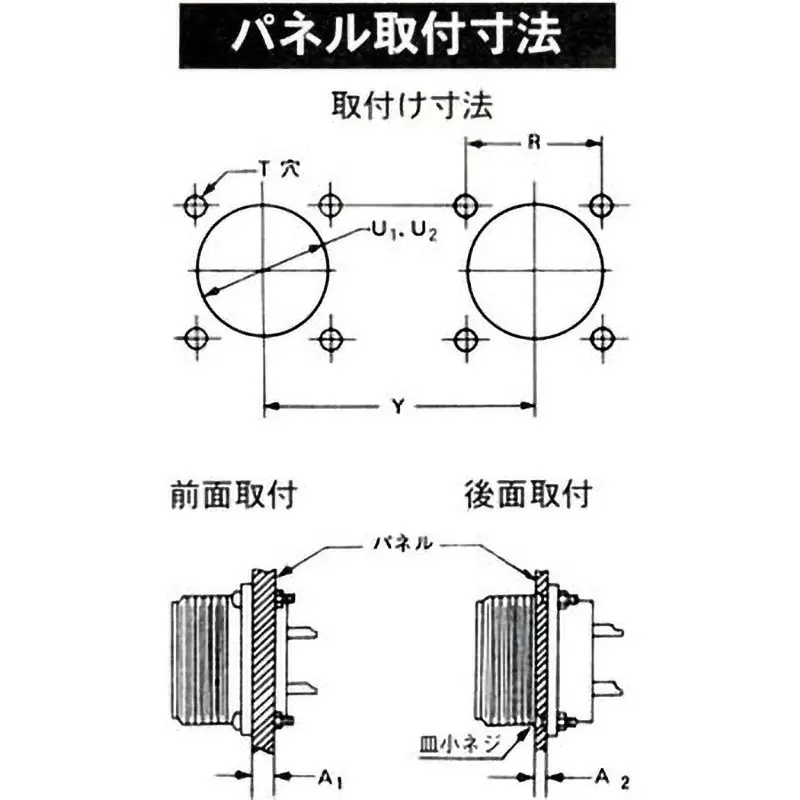

Mounting Screw Hole Spacing R (mm) |
24.61(±0.13) |
Double Mounting Interval Y (mm) |
56 or more |
Mounting Hole Diameter (Φmm) |
3.05(-0.12 to +0.25) |
Compatible Cable |
1.25 mm² |

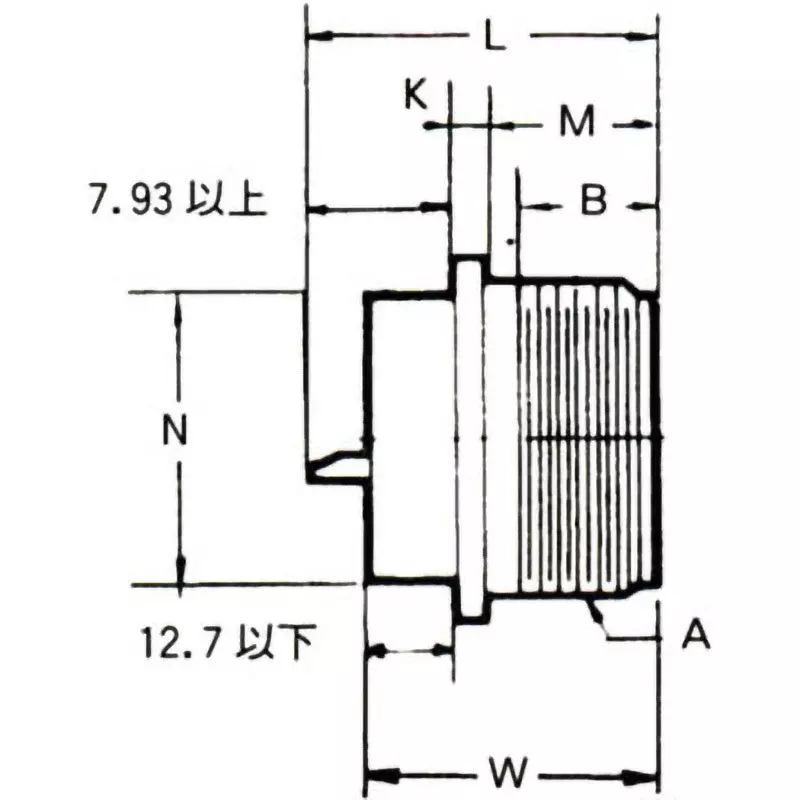

Flange Position M (mm) |
14.28(-0 to +0.78) |
Connecting Screw A |
1-20 UNEF |
Effective Screw Length B (mm) |
9.53 Or More |
Flange Thickness (mm) |
2.1(±0.5) |
Contact Size |
3-#16 |
Overall Length L |
30.25 mm (±1.5) |
Mounting Hole Spacing |
24.61 mm (±0.12) |
Flange Width |
32.5 mm (±0.5) |
