| Model No | D/MS3100A28-15P |
| No. of Pole | 35 |
| Monotaro ID | 34594664 |

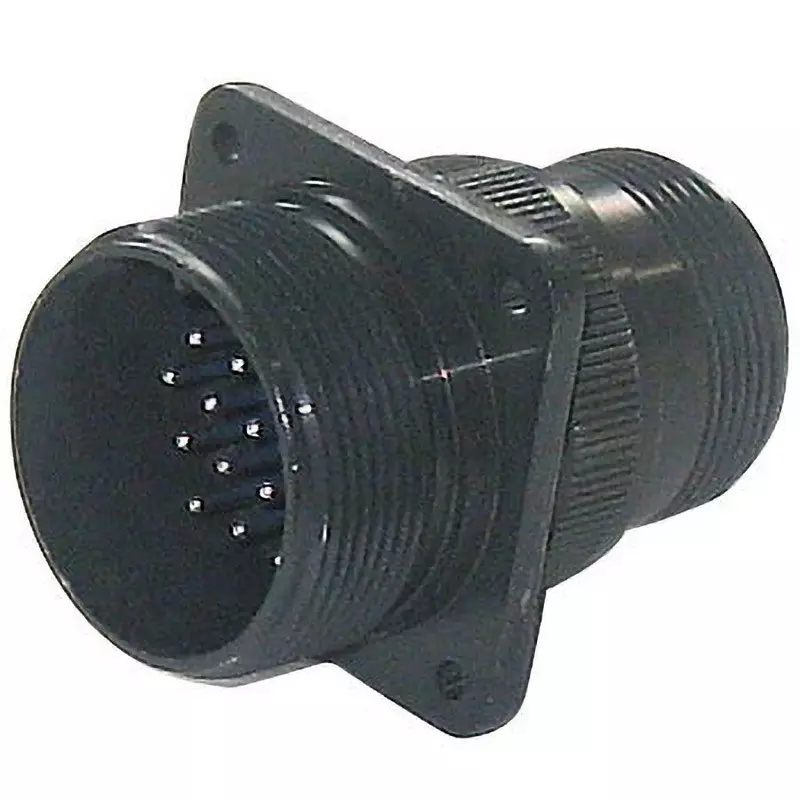

| Type of Product | Wall Receptacle Solid Shell |
Model No |
D/MS3100A28-15P |
No. of Pole |
35 |
Monotaro ID |
34594664 |
Type of Product |
Wall Receptacle Solid Shell |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
28 |

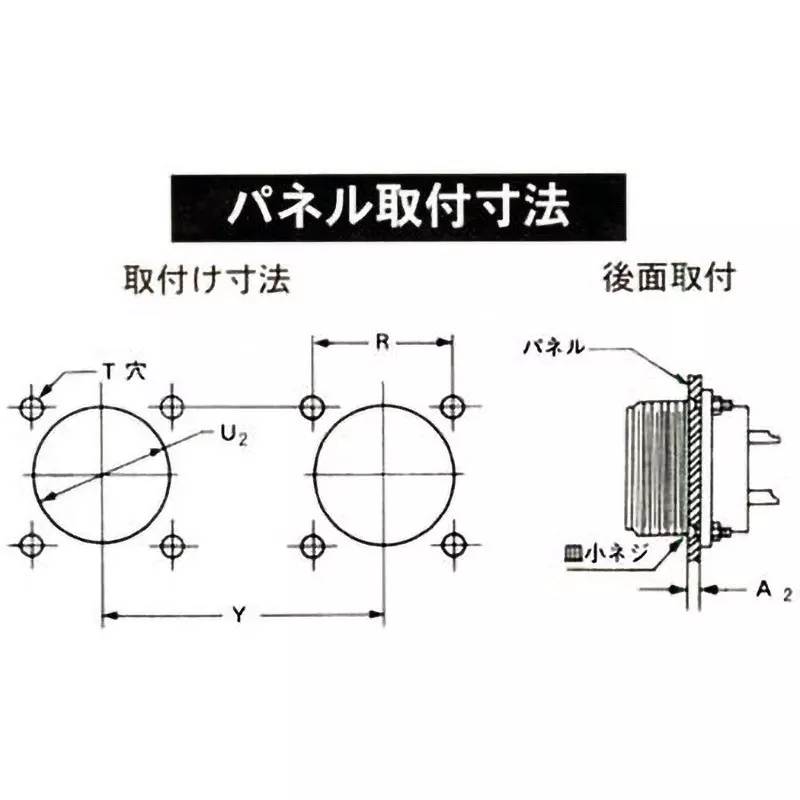

Mounting Hole Diameter (Φmm) |
3.74 |
Compatible Cable |
1.25 mm² |
Flange Position M (mm) |
20.63(-0 to +0.78) |
Connecting Screw A |
1 3/4-18 UNS |
Effective Screw Length B (mm) |
15.88 Or More |
Flange Thickness (mm) |
3.2(±0.5) |

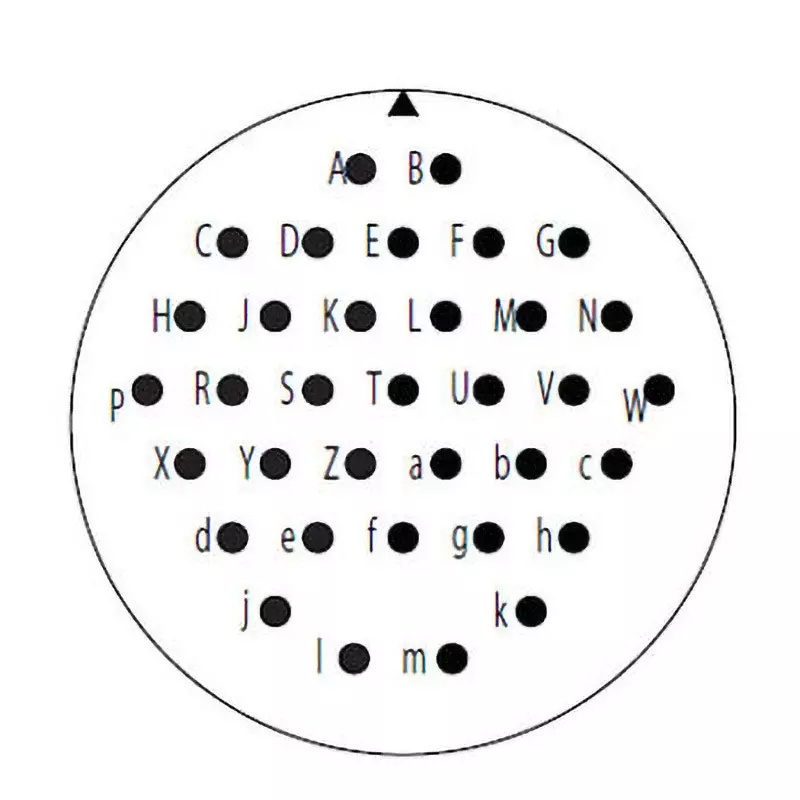

Contact Size |
35-#16 |
Overall Length L |
57.2 mm (±1.5) |
Mounting Hole Spacing |
39.67 mm (±0.12) |
Flange Width |
50.8 mm (±0.5) |
Mounting Screw |
1 7/16-18 UNEF |
Effective Screw Height W (mm) |
9.53 Or More |
