| Model No | D/MS3102A36-5P |
| No. of Pole | 4 |
| Monotaro ID | 34597762 |
| Type of Product | Box Receptacle |
Model No |
D/MS3102A36-5P |
No. of Pole |
4 |
Monotaro ID |
34597762 |
Type of Product |
Box Receptacle |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
150 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
36 |

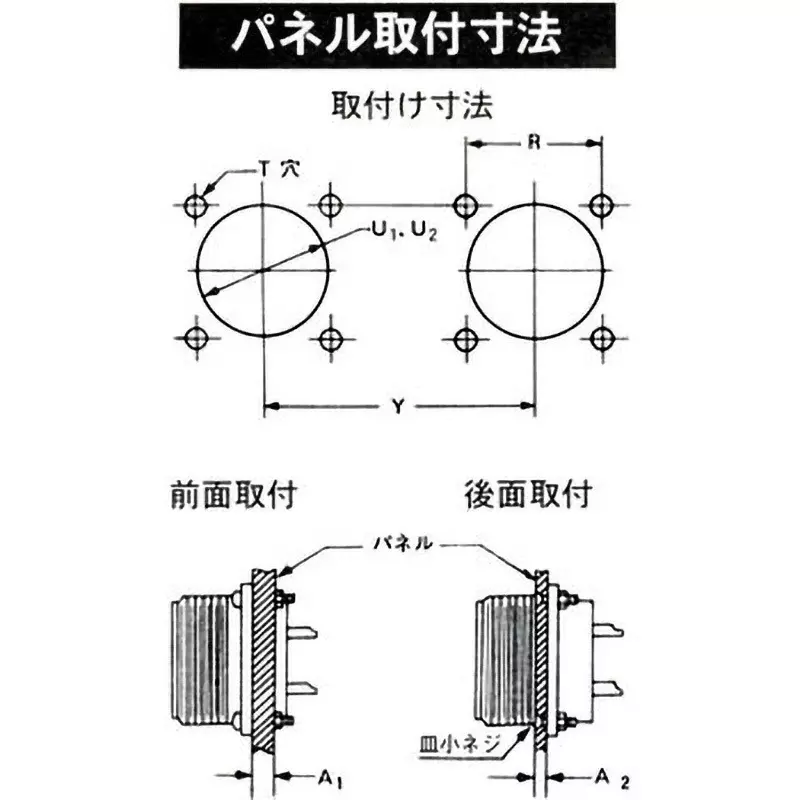

Mounting Screw Hole Spacing R (mm) |
49.23(±0.13) |
Double Mounting Interval Y (mm) |
92 or more |
Mounting Hole Diameter (Φmm) |
4.4(-0.12 to +0.25) |
Compatible Cable |
50 mm² |

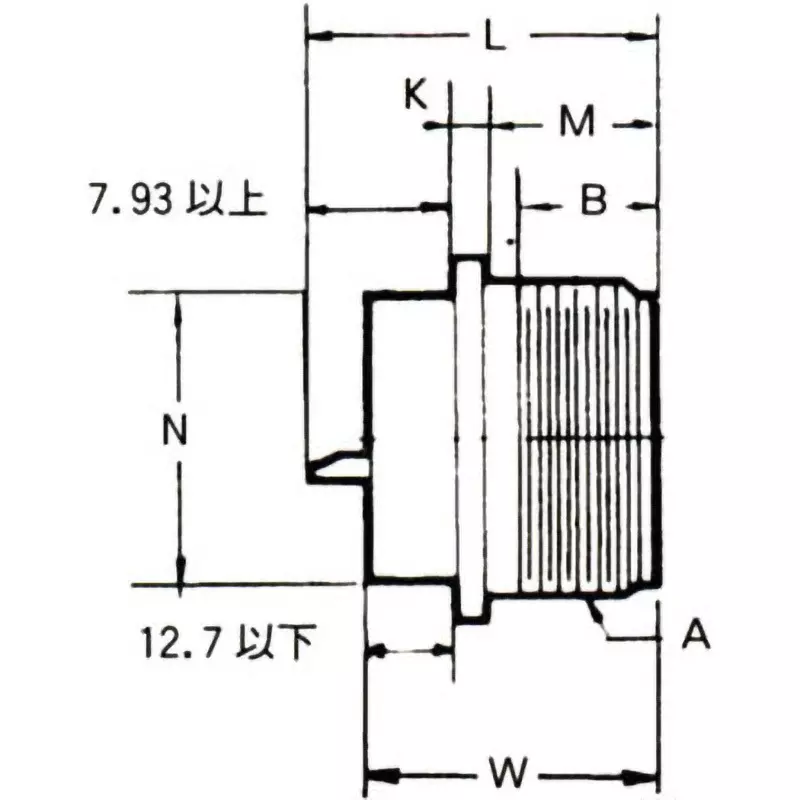

Flange Position M (mm) |
22.23(-0 to +0.78) |
Connecting Screw A |
2 1/4-16UN |
Effective Screw Length B (mm) |
15.88 Or More |
Flange Thickness (mm) |
3.7(±0.5) |

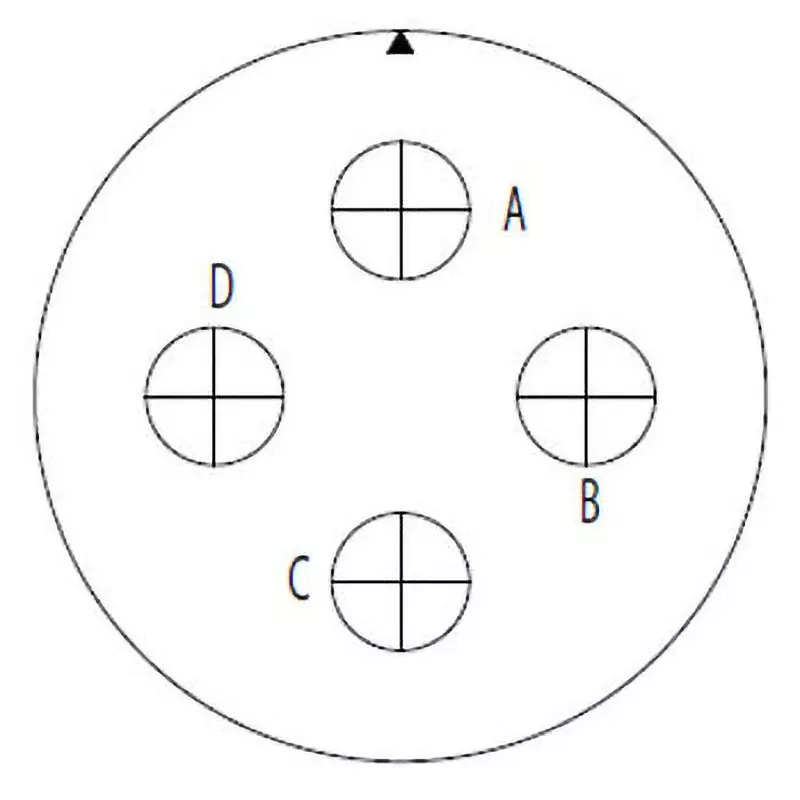

Contact Size |
4-#0 |
Overall Length L |
49.22 mm (±1.5) |
Mounting Hole Spacing |
49.23 mm (±0.12) |
Flange Width |
63.5 mm (±0.5) |
