| Model No | D/MS3102A20-17P |
| No. of Pole | 6 |
| Monotaro ID | 34596983 |
| Type of Product | Box Receptacle |
Model No |
D/MS3102A20-17P |
No. of Pole |
6 |
Monotaro ID |
34596983 |
Type of Product |
Box Receptacle |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13/23 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
20 |

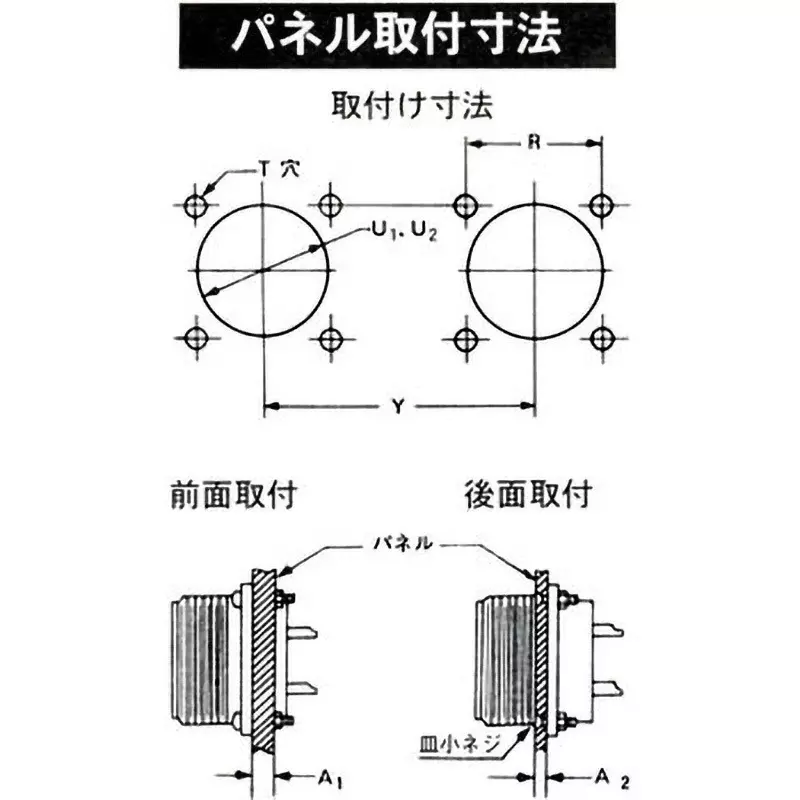

Mounting Screw Hole Spacing R (mm) |
29.36(±0.13) |
Double Mounting Interval Y (mm) |
62 or more |
Mounting Hole Diameter (Φmm) |
3.05(-0.12 to +0.25) |
Compatible Cable |
(#12)3.50, (#16)1.25 mm² |

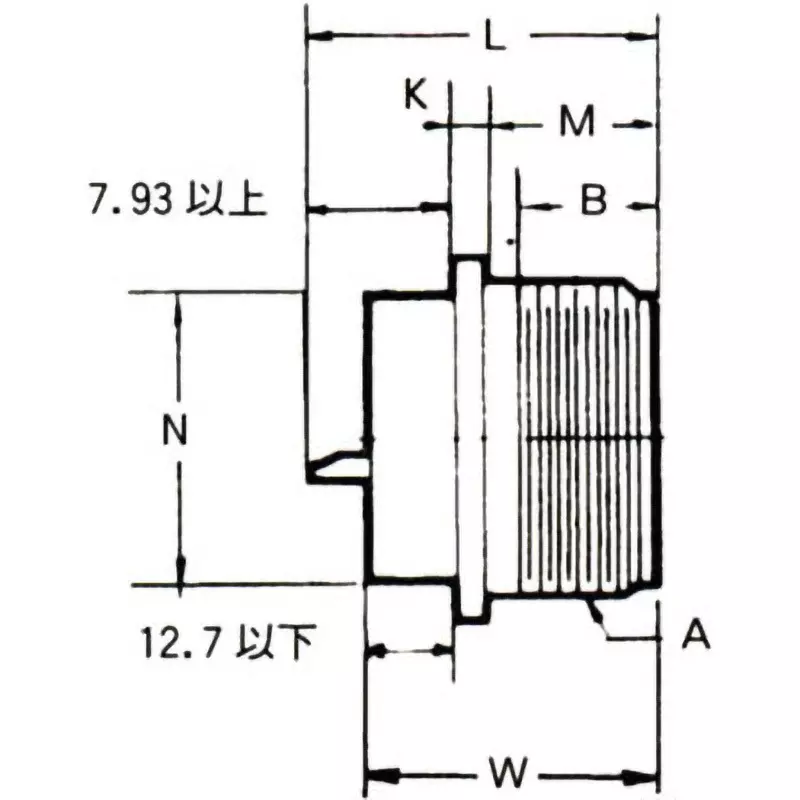

Flange Position M (mm) |
19.05(-0 to +0.78) |
Connecting Screw A |
1 1/4-18 UNEF |
Effective Screw Length B (mm) |
15.88 Or More |
Flange Thickness (mm) |
3.2(±0.5) |
Contact Size |

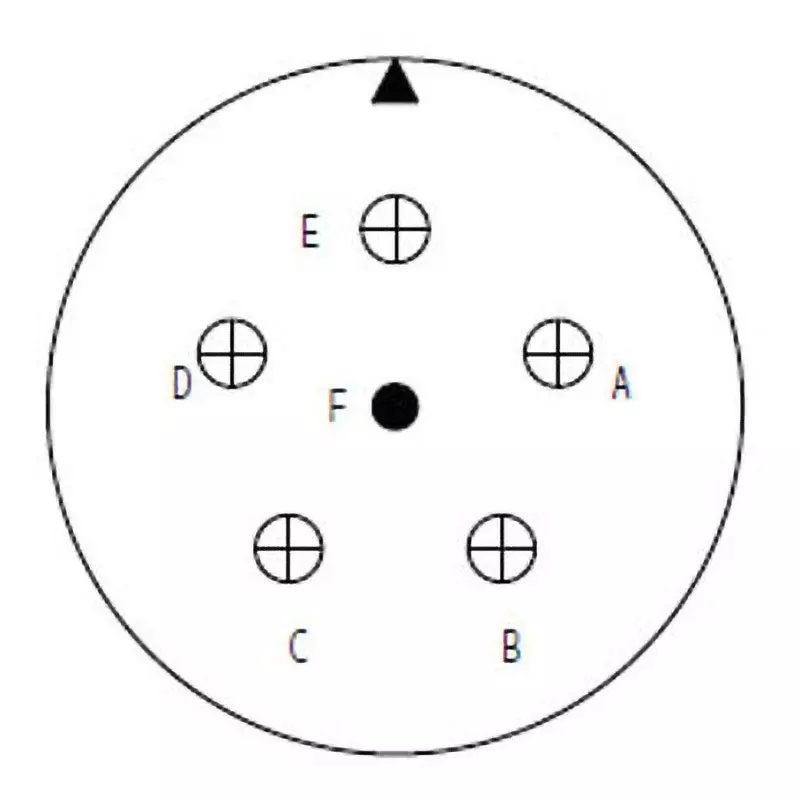

5-#12, 1-#16 |
Overall Length L |
49.22 mm (±1.5) |
Mounting Hole Spacing |
29.36 mm (±0.12) |
Flange Width |
38.1 mm (±0.5) |
