| Model No | D/MS3101A28-11P |
| No. of Pole | 22 |
| Monotaro ID | 34596021 |

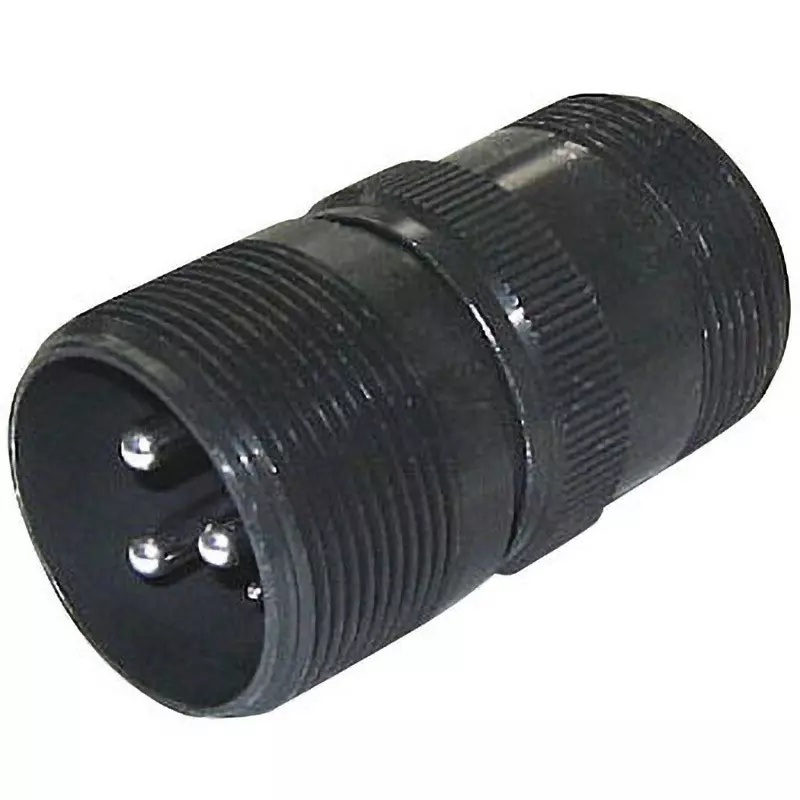

| Type of Product | Cable Receptacle Solid Shell |
Model No |
D/MS3101A28-11P |
No. of Pole |
22 |
Monotaro ID |
34596021 |
Type of Product |
Cable Receptacle Solid Shell |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13/23 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |

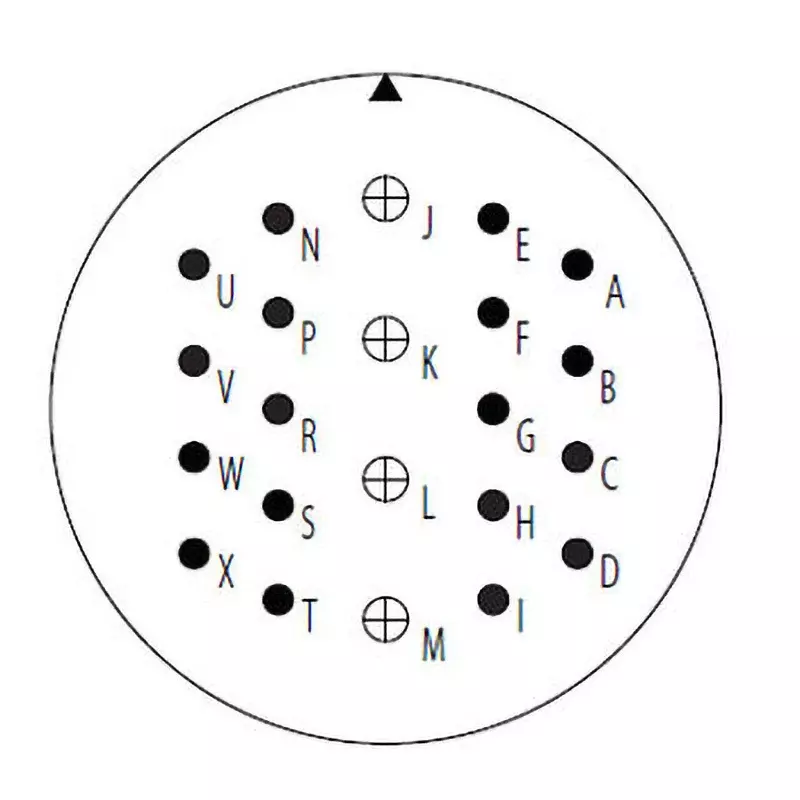

Sequence Number |
28-11 |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
28 |
Compatible Cable |
(#12)3.50, (#16)1.25 mm² |

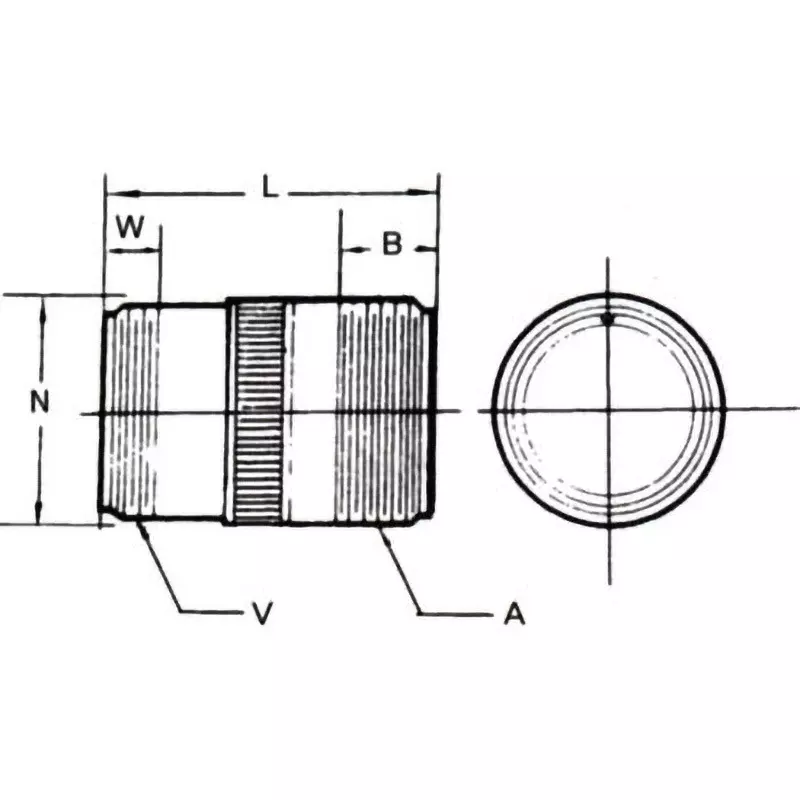

Connecting Screw A |
1 3/4-18 UNS |
Effective Screw Length B (mm) |
15.88 Or More |
Contact Size |
4-#12, 18-#16 |
Overall Length L |
57.2 mm (±1.5) |
Mounting Screw |
1 7/16-18 UNEF |
Applicable Wire Range AWG |
(#12)12 to 14, (#16)16 to 22 |
Effective Screw Height W (mm) |
9.53 Or More |
Outer Diameter (Φmm) |
44.52(±0.5) |
