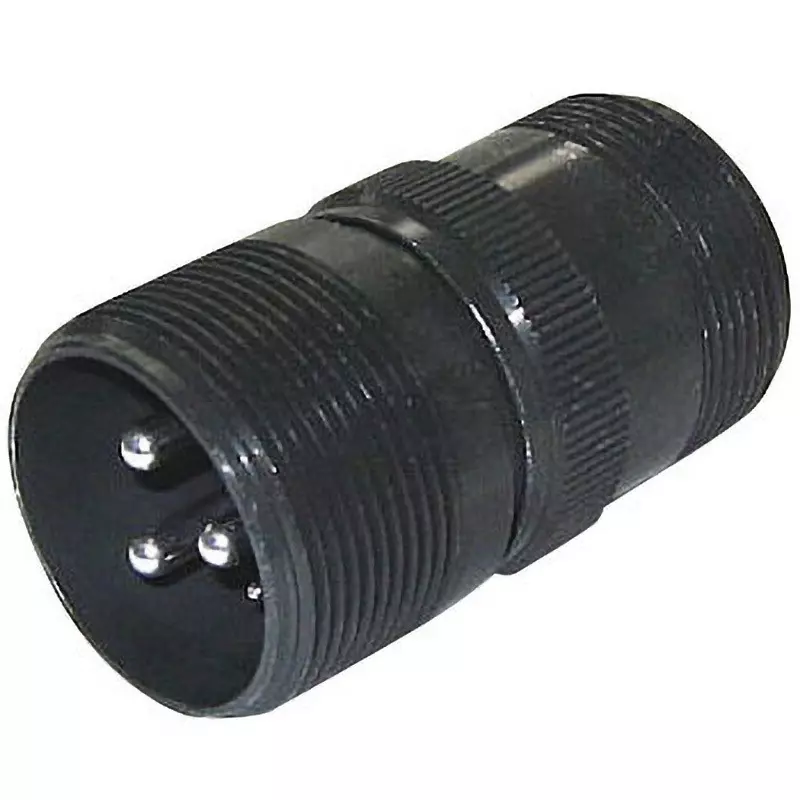

| Model No | D/MS3101A18-22P |
| No. of Pole | 3 |
| Monotaro ID | 34595443 |
| Type of Product | Cable Receptacle Solid Shell |
Model No |
D/MS3101A18-22P |
No. of Pole |
3 |
Monotaro ID |
34595443 |
Type of Product |
Cable Receptacle Solid Shell |
Type |
Round Type |
Rated Voltage (V) |
AC 900/DC 1250 |
Rated Current (A) |
13 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |

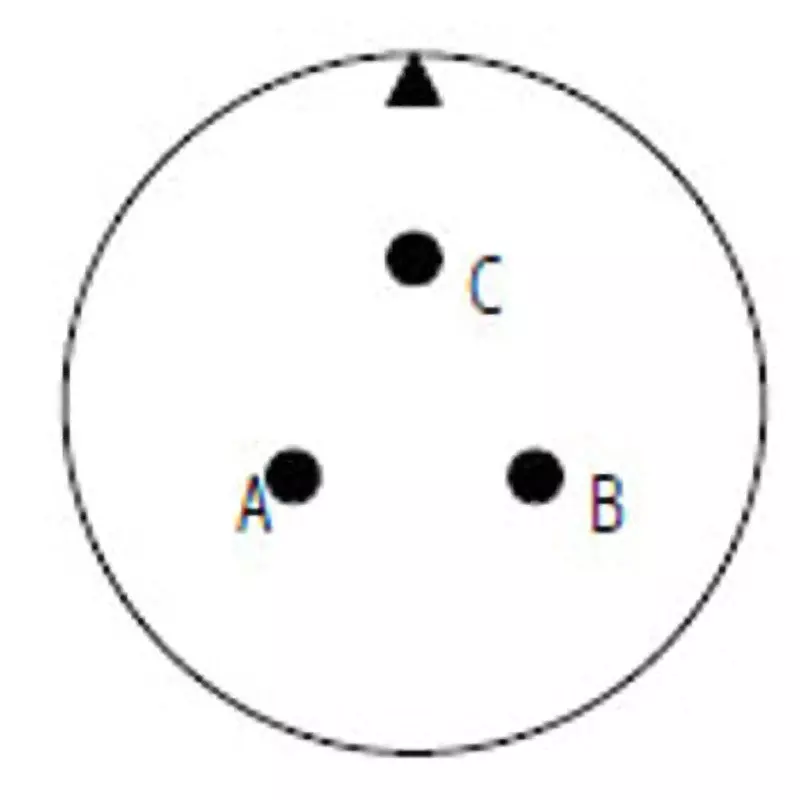

Sequence Number |
18-22 |
Connection Type |
Screw |
Shape Type |
Male |
Shell Size |
18 |
Compatible Cable |
1.25 mm² |

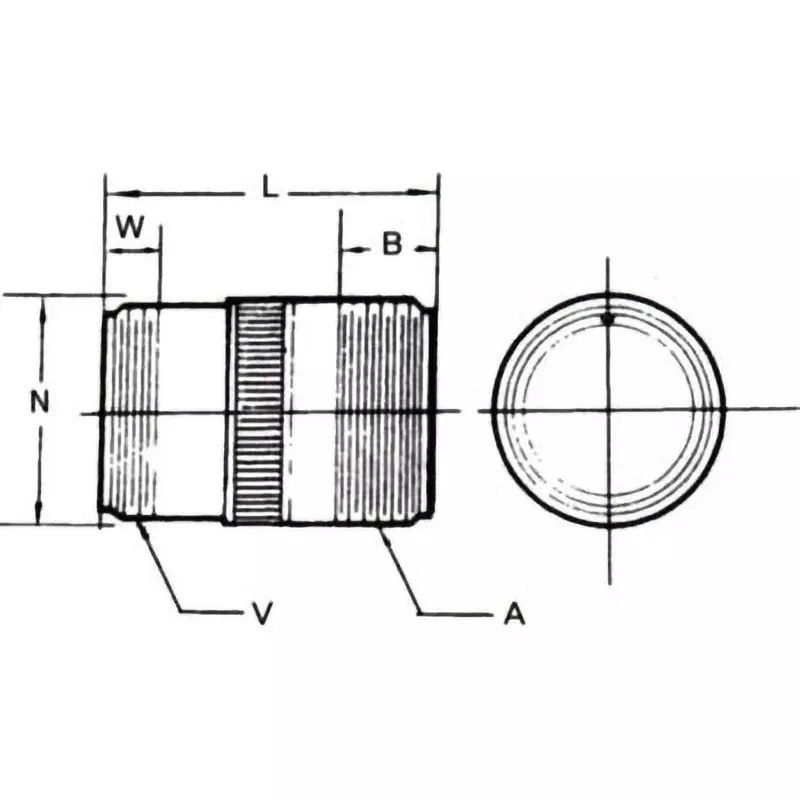

Connecting Screw A |
1 1/8-18 UNEF |
Effective Screw Length B (mm) |
15.88 Or More |
Contact Size |
3-#16 |
Overall Length L |
51.1 mm (±1.5) |
Mounting Screw |
1-20 UNEF |
Applicable Wire Range AWG |
16 to 22 |
Effective Screw Height W (mm) |
9.53 Or More |
Outer Diameter (Φmm) |
28.64(±0.5) |
