Ships within 19 days
View
View
View
View

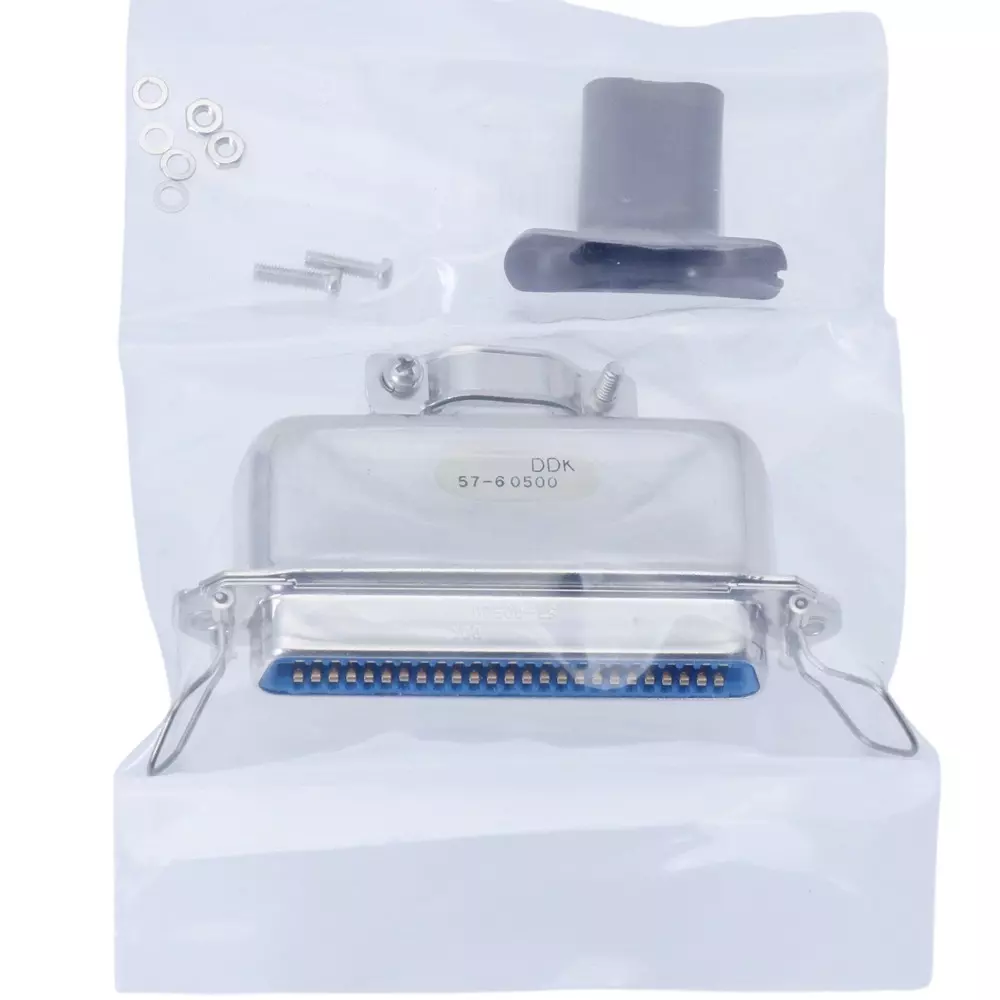

| Model No | 57-60500(R1) |
| Monotaro ID | 46524075 |
| Type of Product | Receptacle |
| Type | Receptacle for cable relay |
Model No |
57-60500(R1) |
Monotaro ID |
46524075 |
Type of Product |
Receptacle |
Type |
Receptacle for cable relay |
Rated Voltage (V) |
AC 500(RMS.) |
Rated Current (A) |
5 / Contact |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Material |
Copper alloy / Au plating , Brass / Ni plating (Applicable to 20 types), Vinyl chloride (applicable to 30 and 60 types) |
Shape |
Solder cup type |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Insulation Resistance (MOhm) |
1000 or more at 500 V DC |
Contact Resistance (ohm) |
5 or less at DC 5 Amp |
Applicable Wire Range Twisted Wire (mm²) |
0.2 (conductor cross section) or AWG24 |
Applicable Wire range |
Φ0.65 mm (Conductor Diameter) Or Awg22 |
Withstand voltage (V) |
AC 1.200 (RMS) for 1 minute |
Operating Temperature Range |
-55 to +105℃ |
Insulator Material |
DAP resin (UL94V-0) / blue |
No of Core |
50 |
Type of Sign |
Soldering type |
Material (Shell) / Finish |
Brass or steel / Ni plating |
