| Model No | D/MS3102A36-9S |
| No. of Pole | 31 |
| Monotaro ID | 34597796 |

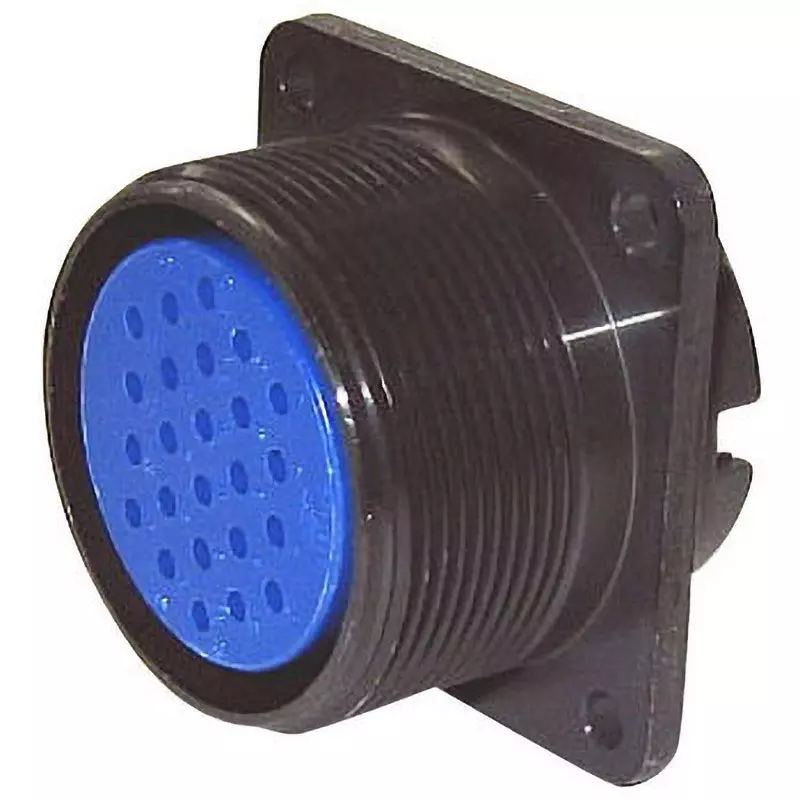

| Type of Product | Box Receptacle |
Model No |
D/MS3102A36-9S |
No. of Pole |
31 |
Monotaro ID |
34597796 |
Type of Product |
Box Receptacle |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13/23/46/80 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
36 |

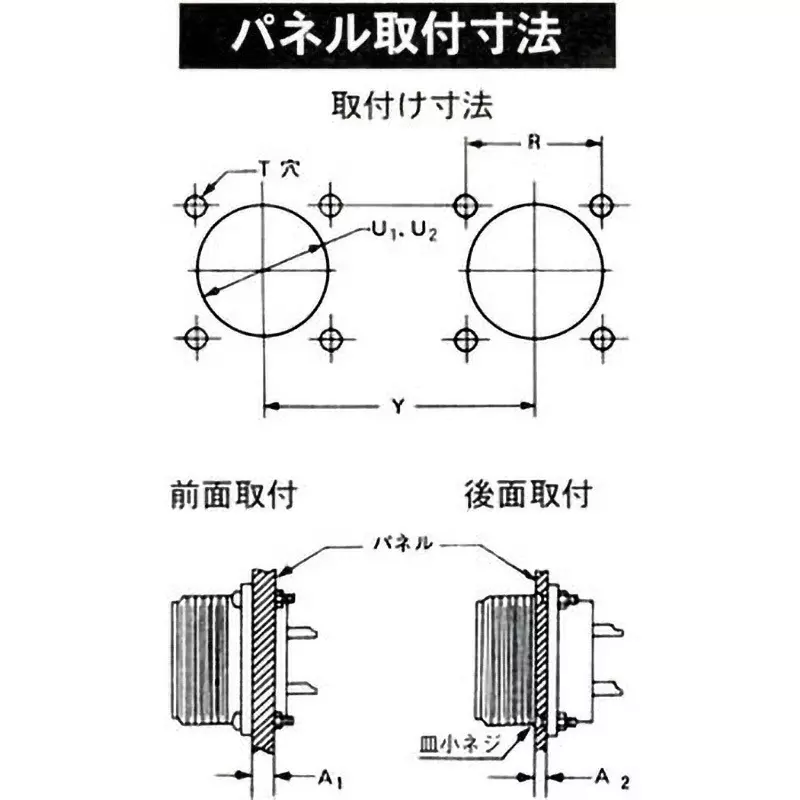

Mounting Screw Hole Spacing R (mm) |
49.23(±0.13) |
Double Mounting Interval Y (mm) |
92 or more |
Mounting Hole Diameter (Φmm) |
4.4(-0.12 to +0.25) |
Compatible Cable |
(#4)22, (#8)8, (#12)3.5, (#16)1.25 mm² |

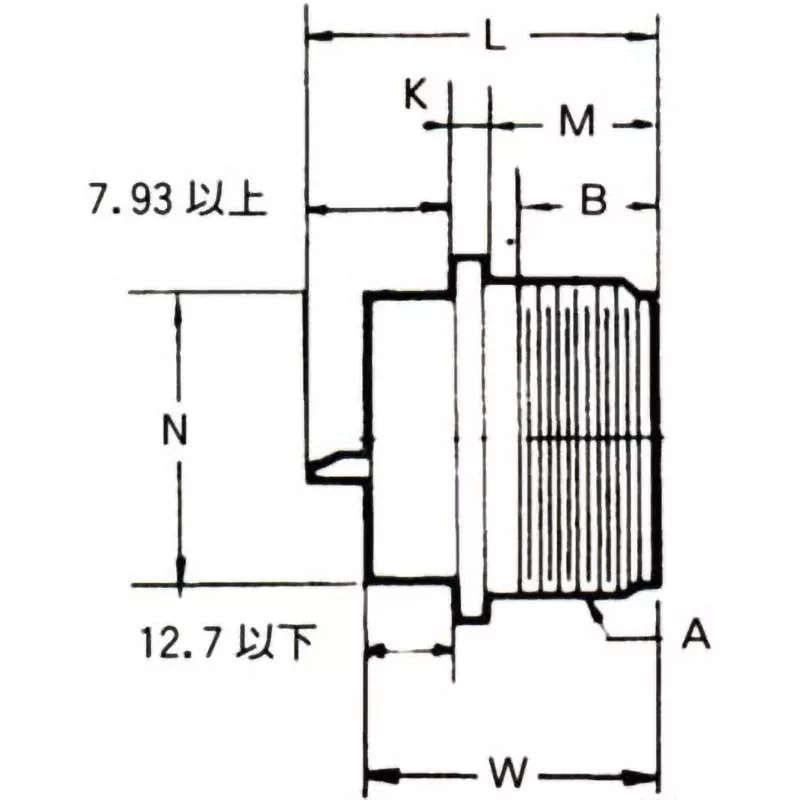

Flange Position M (mm) |
22.23(-0 to +0.78) |
Connecting Screw A |
2 1/4-16UN |
Effective Screw Length B (mm) |
15.88 Or More |
Flange Thickness (mm) |
3.7(±0.5) |
Contact Size |

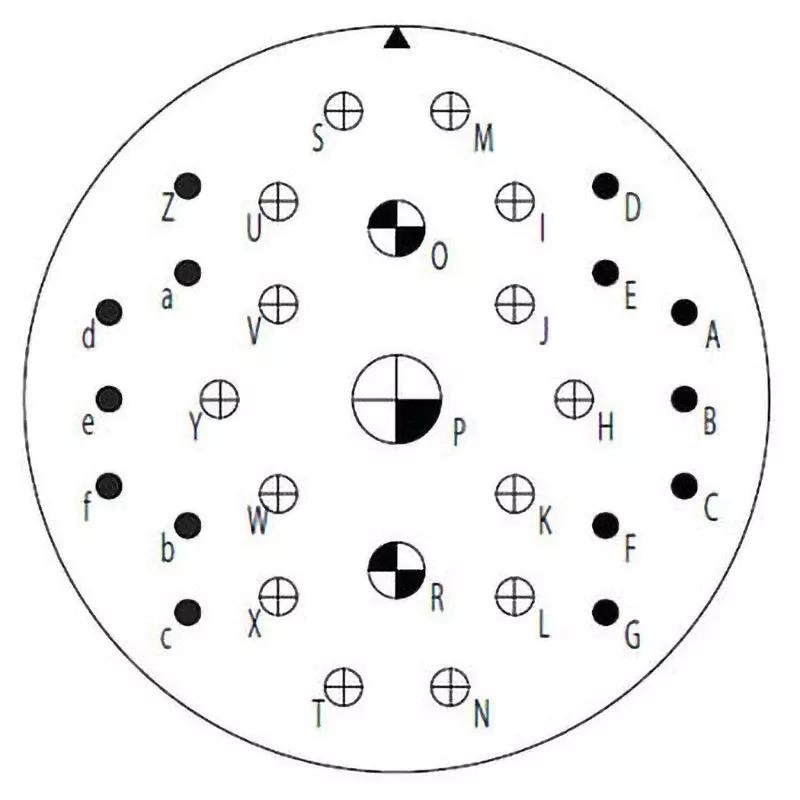

1-#4, 2-#8, 14-#12, 14-#16 |
Overall Length L |
49.22 mm (±1.5) |
Mounting Hole Spacing |
49.23 mm (±0.12) |
Flange Width |
63.5 mm (±0.5) |
