| Model No | D/MS3101A22-14S |
| No. of Pole | 19 |
| Monotaro ID | 34595732 |

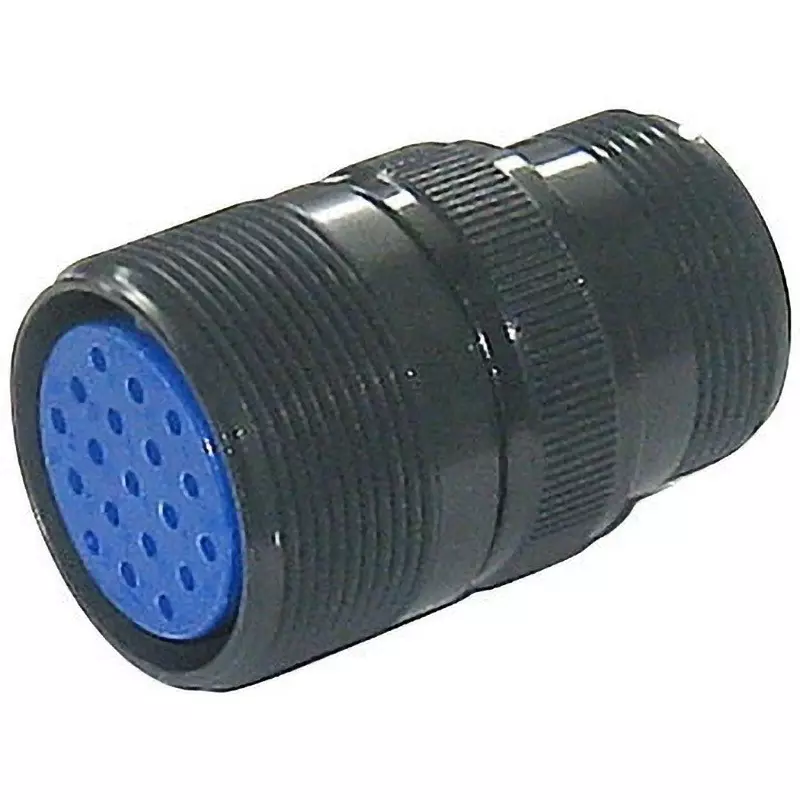

| Type of Product | Cable Receptacle Solid Shell |
Model No |
D/MS3101A22-14S |
No. of Pole |
19 |
Monotaro ID |
34595732 |
Type of Product |
Cable Receptacle Solid Shell |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC 700 |
Rated Current (A) |
13 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
22-14 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
22 |
Compatible Cable |
1.25 mm² |

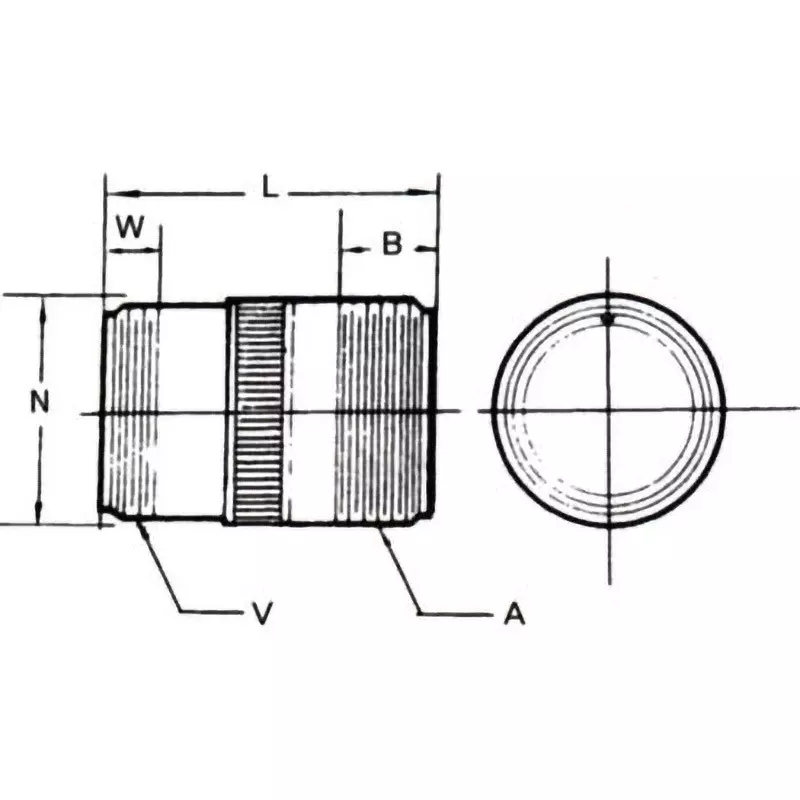

Connecting Screw A |
1 3/8-18 UNEF |
Effective Screw Length B (mm) |
15.88 Or More |
Contact Size |

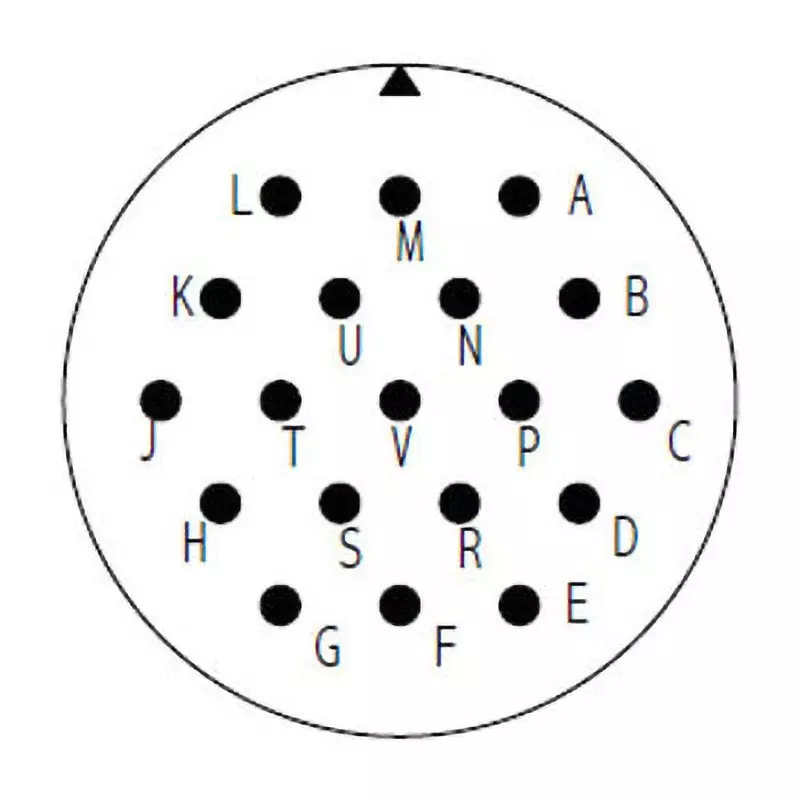

19-#16 |
Overall Length L |
54 mm (±1.5) |
Mounting Screw |
1 3/16-18 UNEF |
Applicable Wire Range AWG |
16 to 22 |
Effective Screw Height W (mm) |
9.53 Or More |
Outer Diameter (Φmm) |
34.99(±0.5) |
