| Model No | D/MS3101A22-23S |
| No. of Pole | 8 |
| Monotaro ID | 34595793 |

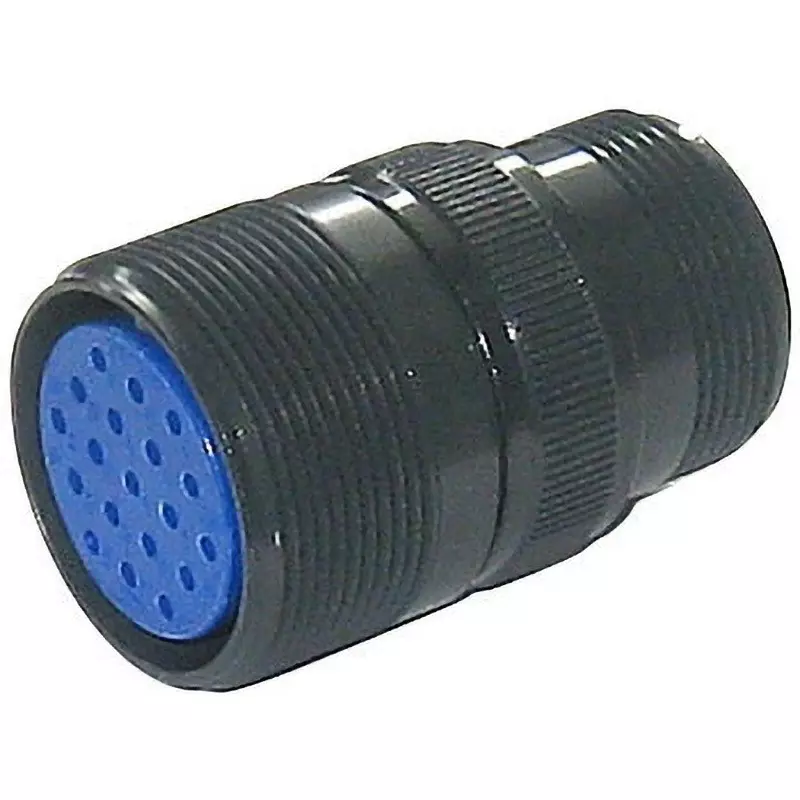

| Type of Product | Cable Receptacle Solid Shell |
Model No |
D/MS3101A22-23S |
No. of Pole |
8 |
Monotaro ID |
34595793 |
Type of Product |
Cable Receptacle Solid Shell |
Type |
Round Type |
Rated Voltage (V) |
AC 500/DC700, AC 500/DC700 |
Rated Current (A) |
23 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Connection Method |
Solder |
Sequence Number |
22-23 |
Connection Type |
Screw |
Shape Type |
Female |
Shell Size |
22 |
Compatible Cable |
3.5 mm² |

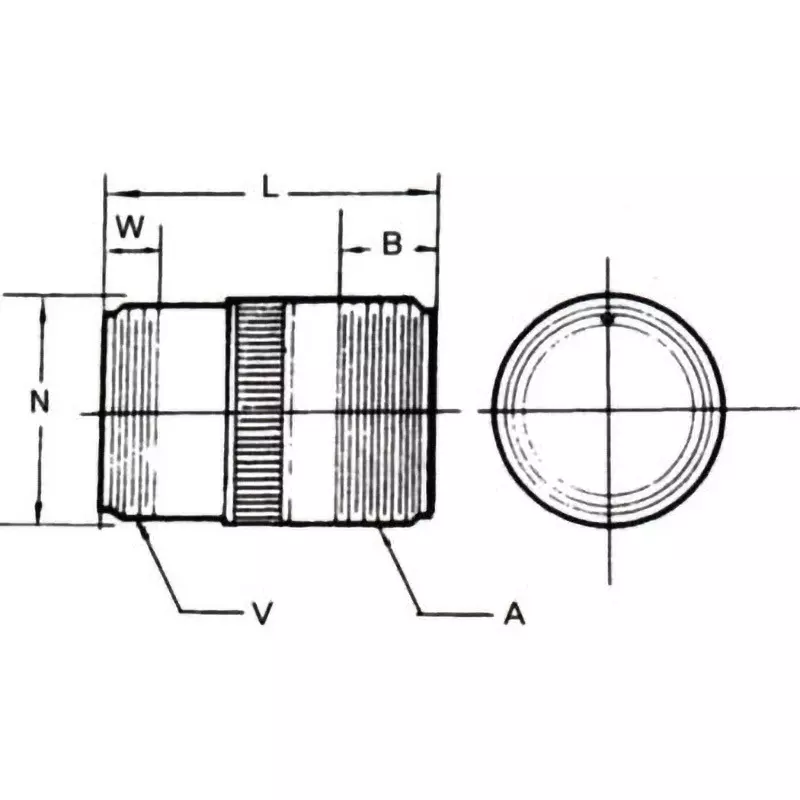

Connecting Screw A |
1 3/8-18 UNEF |
Effective Screw Length B (mm) |
15.88 Or More |
Contact Size |

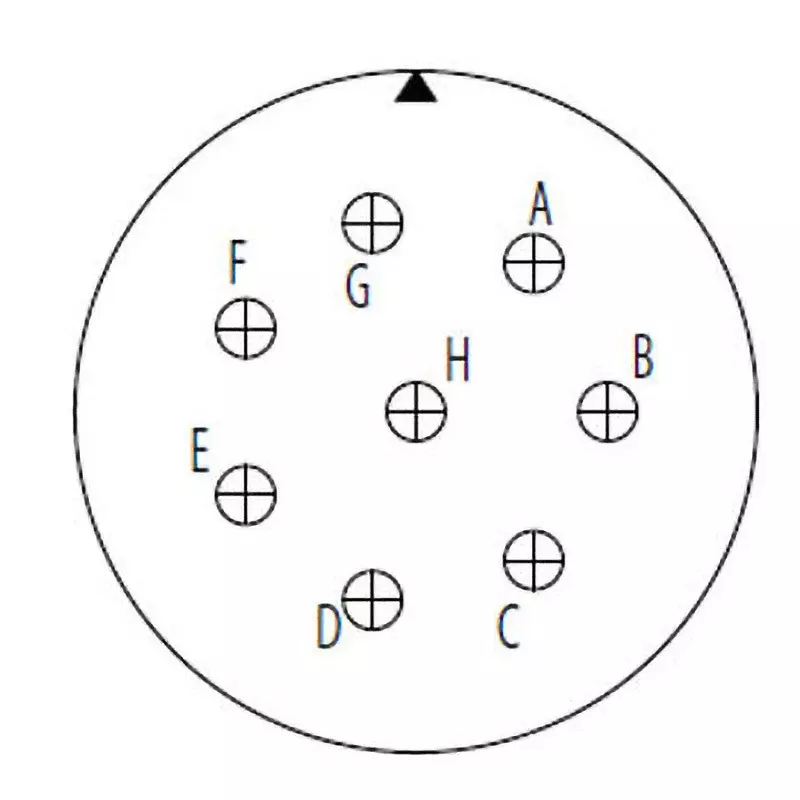

8-#12 |
Overall Length L |
54 mm (±1.5) |
Mounting Screw |
1 3/16-18 UNEF |
Applicable Wire Range AWG |
12 to 14 |
Effective Screw Height W (mm) |
9.53 Or More |
Outer Diameter (Φmm) |
34.99(±0.5) |
