| Model No | NR-202-RF |
| No. of Pole | 2 |
| Monotaro ID | 34822191 |

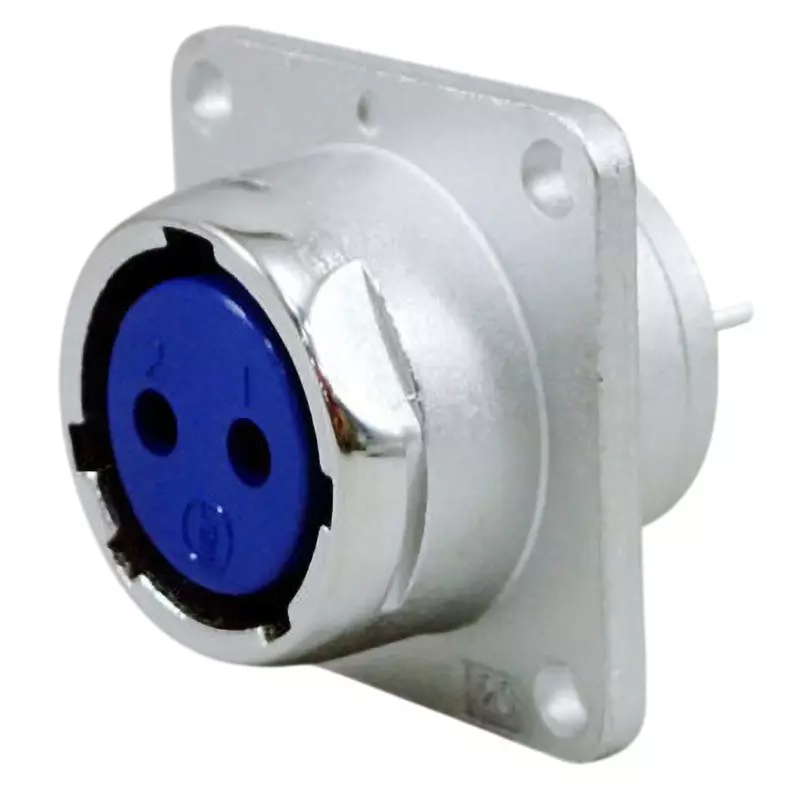

| Type of Product | Metal Connector Panel Mount Receptacle |
Model No |
NR-202-RF |
No. of Pole |
2 |
Monotaro ID |
34822191 |
Type of Product |
Metal Connector Panel Mount Receptacle |
Type |
Round type |
Rated Voltage (V) |
250 |
Rated Current (A) |
15 |
Contact Material |
Copper alloy / silver plating |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Contact Type |
Female |
Connection Type |
One touch |
Connector Shape |
RF receptacle |
Shell Size |
20 |
RoHS Directive |
Correspondence |
Insulation Resistance (MOhm) |
2000 |
Specifications |
Reverse core (power supply side) |
Suitable Cable Outer Dia. (Φmm) |
10.0 to 12.5 |
Contact Resistance (ohm) |
3 mΩ or less |
Operating Temperature Range |
-40 to +100℃ |
Insulator Material |
Synthetic resin |
Material (Shell) / Finish |
Zinc alloy/satin chrome plating |
Conductor Cross Section Area |
2 mm² |
Trusco Part No. |
470-7419 |
