Ships within 25 days
View
View
View
View
| Model No | NJC-244-RM |

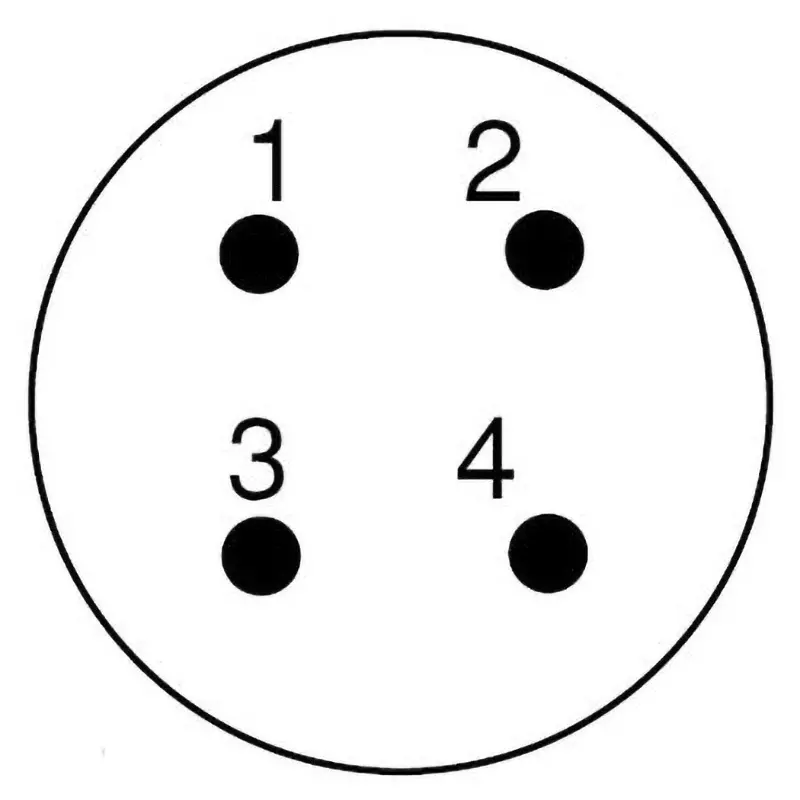

| No. of Pole | 4 |
| Monotaro ID | 8556861 |
| Type of Product | Metal Connector Panel Mounting Receptacle |
Model No |
NJC-244-RM |
No. of Pole |
4 |
Monotaro ID |
8556861 |
Type of Product |
Metal Connector Panel Mounting Receptacle |
Type |
Round type |
Rated Voltage (V) |
250 |
Rated Current (A) |
15 |
Contact Material |
Copper alloy / silver plating |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Standard |
JIS C 5432 compliant product available/Product Safety electrical Appliance and Material compliant product available |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Contact Type |
Male |
Connection Type |
Screw |
Connector Shape |
RM receptacle |
Shell Size |
24 |
Insulation Resistance (MOhm) |
5000 |
Specifications |
Positive core (equipment side) |
Suitable Cable Outer Dia. (Φmm) |
11.5 to 14.0 |
Contact Resistance (ohm) |
3 mΩ or less |
Operating Temperature Range |
-40 to +100℃ |
Insulator Material |
Synthetic resin |
Material (Shell) / Finish |
Zinc alloy/satin chrome plating |
Material (Gasket) |
Synthetic rubber |
Conductor Cross Section Area |
2 mm² |
