| Model No | ENJW28SC5ER |
| Monotaro ID | 18677086 |

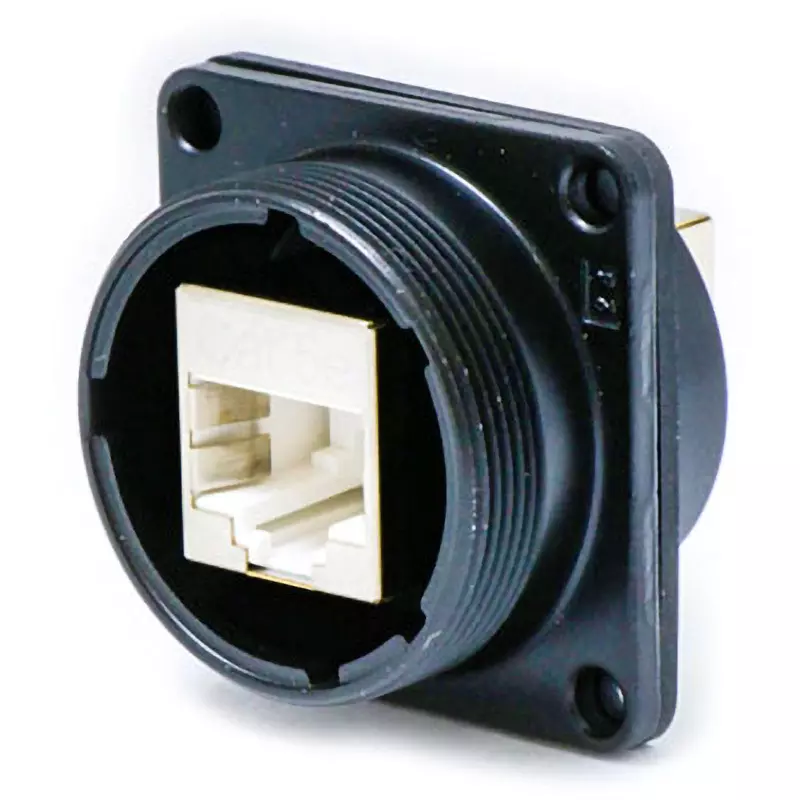

| Type of Product | Ethernet Connector Panel Mount Receptacle |
| Type | Square |
Model No |
ENJW28SC5ER |
Monotaro ID |
18677086 |
Type of Product |
Ethernet Connector Panel Mount Receptacle |
Type |
Square |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Connection Method |
Solder |
Contact Type |
Female |
Connection Type |
Screw |
Shell Size |
28 |
RoHS Directive |
Correspondence |
Insulation Resistance (MOhm) |
500 |
Contact Resistance (ohm) |
20 mΩ or less |
Operating Temperature Range |
-25 to +60℃ |
Insulator Material |
Synthetic resin |
Material (Gasket) |
Synthetic rubber |
Lock |
Screw lock method |
Material/Finish |
Shell: Aluminum alloy / Special treatment, Insulator: Synthetic resin, Packing: Synthetic rubber |
Connector Type |
ENJW28SC5EP |
Withstand voltage (V / min) |
1000 |
Waterproof Specifications |
IP-67 equivalent |
