| Model No | NWPC-403-R |
| No. of Pole | 3 |
| Monotaro ID | 39278136 |

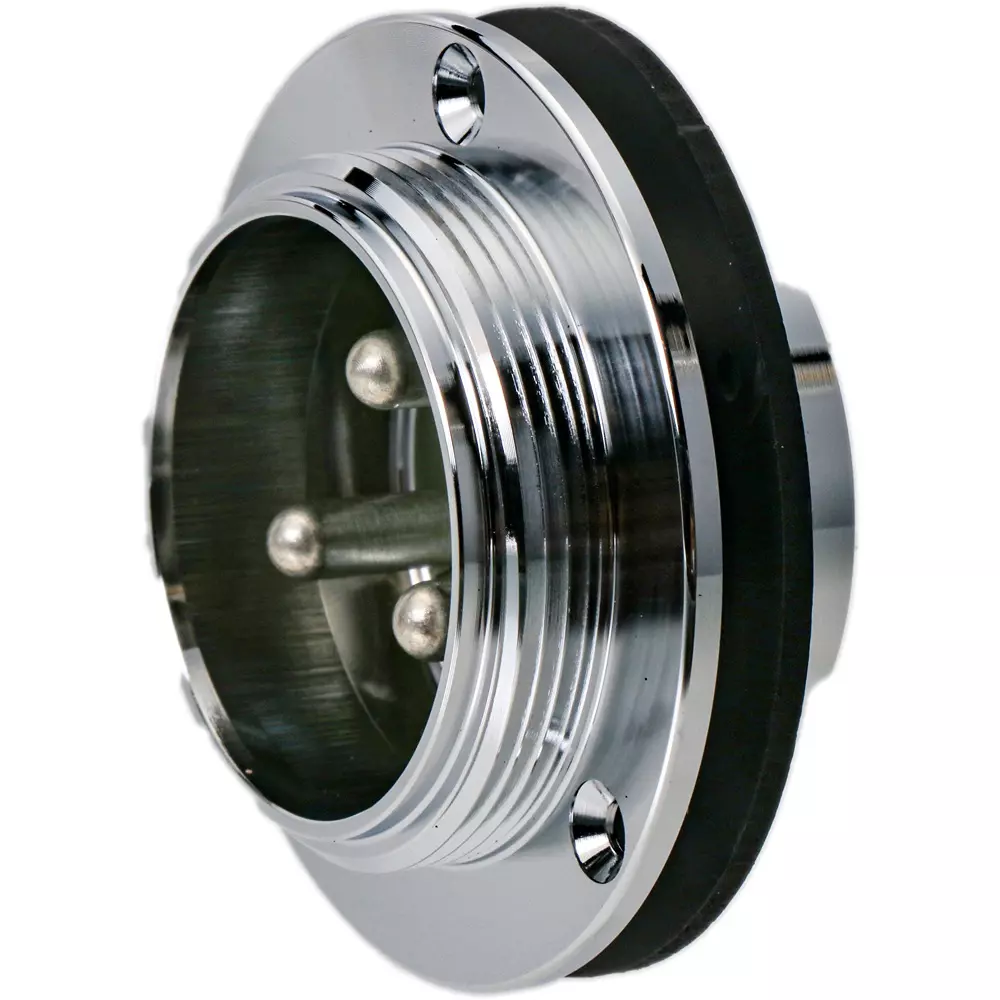

| Type of Product | Metal Connector Panel Mounting Receptacle |
Model No |
NWPC-403-R |
No. of Pole |
3 |
Monotaro ID |
39278136 |
Type of Product |
Metal Connector Panel Mounting Receptacle |
Type |
Round type |
Rated Voltage (V) |
250 |
Rated Current (A) |
30 |
Contact Material |
Copper alloy / silver plating |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Contact Type |
Male |
Connection Type |
Screw |
Connector Shape |
Receptacle |
Shell Size |
40 |
Insulation Resistance (MOhm) |
2000 |
Specifications |
Positive core (equipment side) |
Suitable Cable Outer Dia. (Φmm) |
11.0 to 24.0 |
Contact Resistance (ohm) |
3 mΩ or less |
Operating Temperature Range |
-40 to +85℃ |
Insulator Material |
Synthetic resin |
Material (Shell) / Finish |
Brass / chrome plating |
Material (Gasket) |
Synthetic rubber |
Conductor Cross Section Area |
5.5 mm² |
