| Model No | NCS-252-R |

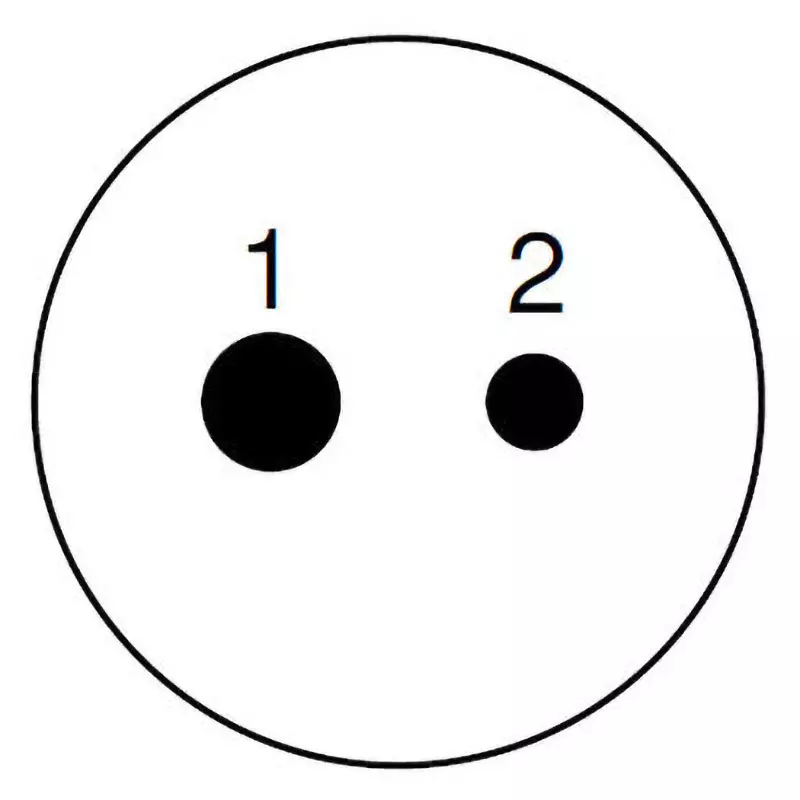

| No. of Pole | 2 |
| Monotaro ID | 8557936 |

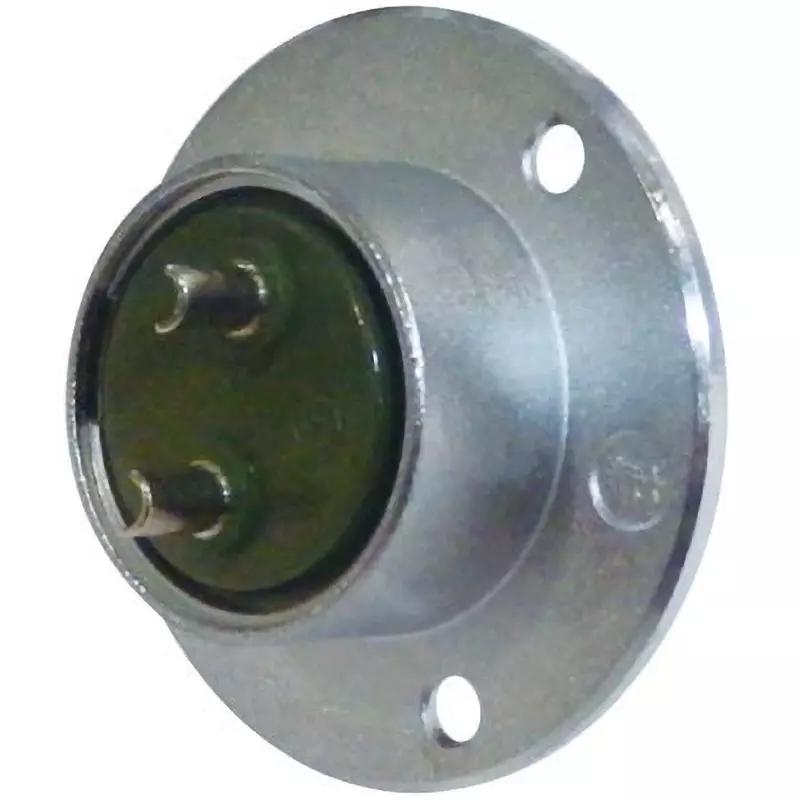

| Type of Product | Metal Connector Panel Mounting Receptacle |
Model No |
NCS-252-R |
No. of Pole |
2 |
Monotaro ID |
8557936 |
Type of Product |
Metal Connector Panel Mounting Receptacle |
Type |
Round type |
Rated Voltage (V) |
250 |
Rated Current (A) |
10 |
Suitable For |
NCS-252-P |
Contact Material |
Copper alloy / nickel plating |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Standard |
Electrical Appliance and Material Safety Law |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Connection Type |
Screw |
Connector Shape |
Receptacle |
Insulation Resistance (MOhm) |
2000 |
Specifications |
Positive core (equipment side) |
Suitable Cable Outer Dia. (Φmm) |
9.5 to 11.5 |
Contact Resistance (ohm) |
3 mΩ or less |
Operating Temperature Range |
-40 to +120℃ |
Insulator Material |
Synthetic resin |
Material (Shell) / Finish |
Zinc alloy or brass/chrome plating or special chemical treatment (16 color type) |
Material (Gasket) |
Synthetic rubber |
Conductor Cross Section Area |
2 mm² |
Trusco Part No. |
413-2378 |
