Ships within 25 days
View
View
View
View
| Model No | NJW-165-RF |
| No. of Pole | 5 |
| Monotaro ID | 39275083 |

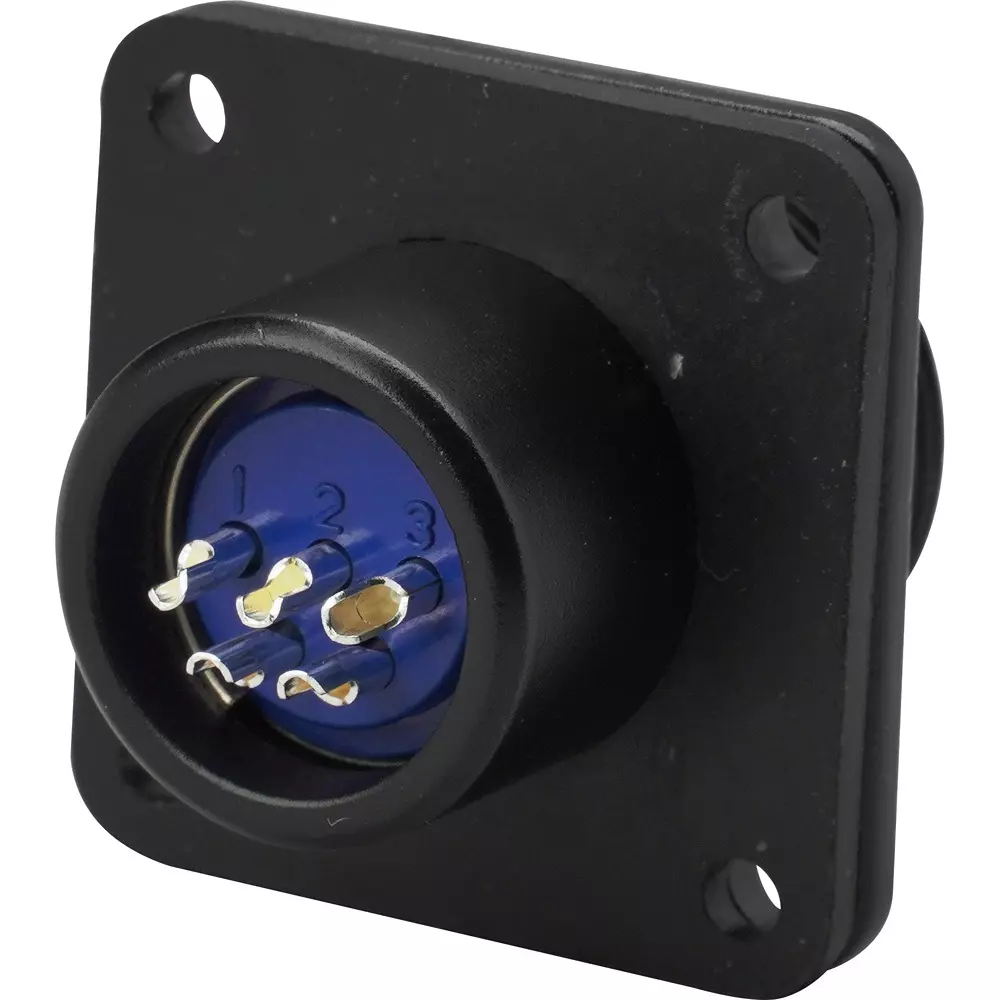

| Type of Product | Metal Connector Panel Mounting Receptacle |
Model No |
NJW-165-RF |
No. of Pole |
5 |
Monotaro ID |
39275083 |
Type of Product |
Metal Connector Panel Mounting Receptacle |
Type |
Round type |
Rated Voltage (V) |
125 |
Rated Current (A) |
5 |
Contact Material |
Copper alloy / silver plating |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Shape |
Straight |
Standard |
Electrical Appliance and Material Safety Law |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Contact Type |
Female |
Connection Type |
Screw |
Connector Shape |
Receptacle |
Shell Size |
16 |
Insulation Resistance (MOhm) |
1000 |
Specifications |
Reverse core (power supply side) |
Suitable Cable Outer Dia. (Φmm) |
4.0 to 4.8, 5.7 to 11.0 |
Contact Resistance (ohm) |
5 mΩ or less |
Operating Temperature Range |
-25 to +85℃ |
Insulator Material |
Synthetic resin |
Material (Shell) / Finish |
Zinc alloy/special chemical treatment |
Material (Gasket) |
Synthetic rubber |
Conductor Cross Section Area |
0.5 mm² |
