| Model No | GBPC15005-E4 |
| Mounting Type | Screw Mount |

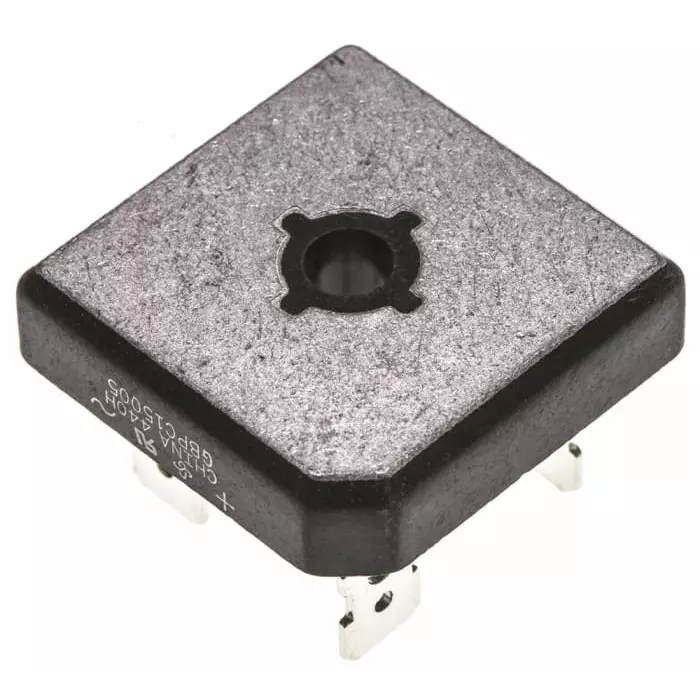

| Type of Product | Bridge Rectifier |
| Minimum Operating Temperature | -55 °C |
Model No |
GBPC15005-E4 |
Mounting Type |
Screw Mount |
Type of Product |
Bridge Rectifier |
Minimum Operating Temperature |
-55 °C |
Configuration |
Single |
Dimension |
28.8 x 28.8 x 7.62 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls Ltd |
Package Type |
GBPC |
Pin Count |
4 |
Maximum Operating Temperature |
+150 °C |
Height |
7.62 mm |
Length |
28.8 mm |
Width |
28.8 mm |
Peak Non-Repetitive Forward Surge Current |
300 Amp |
Peak Reverse Repetitive Voltage |
50 V |
Bridge Type |
Single Phase |
Peak Reverse Current |
5 µA |
Peak Average Forward Current |
15 Amp |
Peak Forward Voltage |
1.1 V |
