| Model No | ZM4733A-GS08 |
| Mounting Type | Surface Mount |

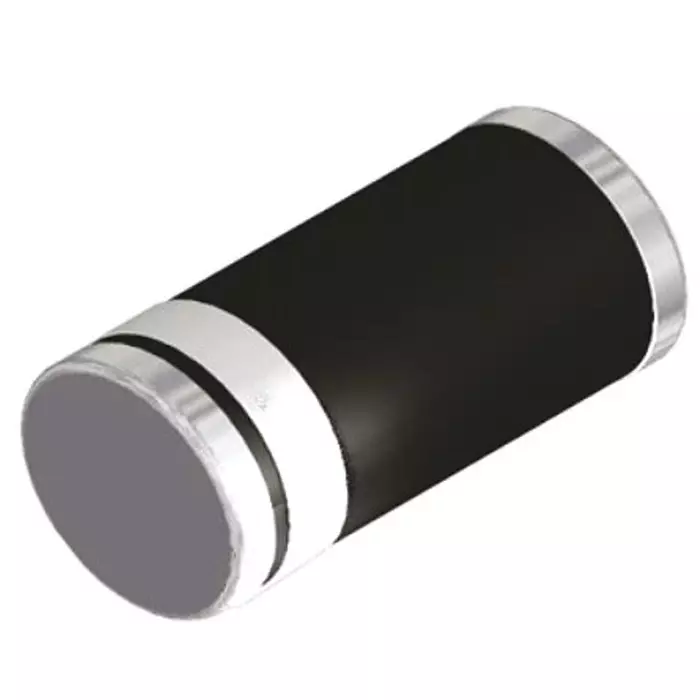

| Type of Product | Zener Diode |
| Dimension | 2.6 (Dia.) x 5.2 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
ZM4733A-GS08 |
Mounting Type |
Surface Mount |
Type of Product |
Zener Diode |
Dimension |
2.6 (Dia.) x 5.2 mm |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Single |
Nominal Zener Voltage |
5.1 V |
Number of Elements Per Chip |
1 |
Zener Type |
General Purpose |
Package Type |
DO-213AB |
Voltage Tolerance |
0.05 |
Pin Count |
2 |
Power Dissipation |
1 W |
Test Current |
49 mA |
Maximum Operating Temperature |
+175 °C |
Maximum Zener Impedance |
7Ω |
Maximum Reverse Leakage Current |
10 µA |
Automotive Standard |
AEC-Q101 |
