| No. Of Pin | 2 |
| Packaging Type | DO-214AB (SMC) |
| Model No | SMCJ170CA-E3/57T |
| Type of Product | Bidirectional TVS Diode |
No. Of Pin |
2 |
Packaging Type |
DO-214AB (SMC) |
Model No |
SMCJ170CA-E3/57T |
Type of Product |
Bidirectional TVS Diode |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Vishay |
Number of Elements Per Chip |
1 |
Maximum Clamping Voltage |
275 |
Minimum Breakdown Voltage |
189 |
Maximum Reverse Stand-off Voltage |
170 |
Maximum Peak Pulse Current |
5.5 |
Pack of |
10 Pcs |
Monotaro ID |
48893566 |
Import Country |
Direct Import from Japan |
Specifications |

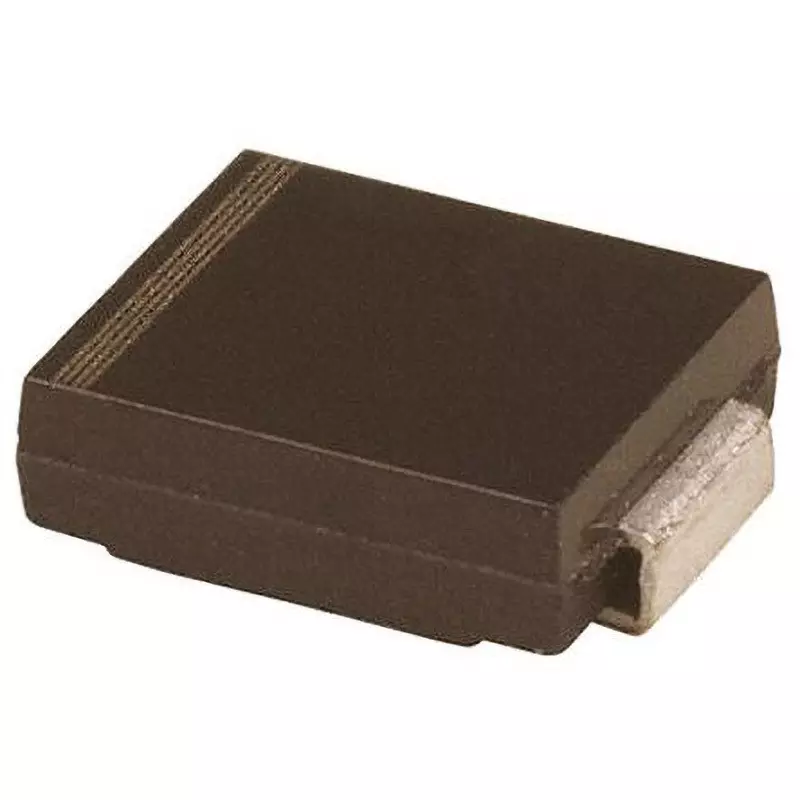

TRANSZORBR Transient Voltage Suppressor, SMT Unidirectional 1500 W, SMCJ Series, Vishay Semiconductor |
RoHS Directive |
Correspondence |
Rated Power Consumption (W) |
1500 |
Operating Temperature Range |
-55 to +150 |
Surface Mount Device |
Surface mount |
Direction Type |
Phase direction |
Test Current (A) |
1 |
