| Model No | VS-36MB40A |
| Mounting Type | Screw Mount |

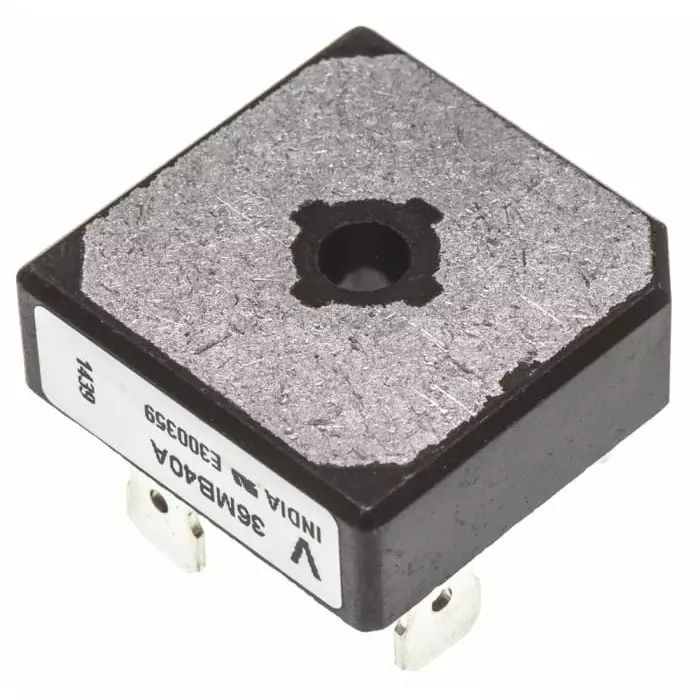

| Type of Product | Bridge Rectifier |
| Minimum Operating Temperature | -55 °C |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
VS-36MB40A |
Mounting Type |
Screw Mount |
Type of Product |
Bridge Rectifier |
Minimum Operating Temperature |
-55 °C |
Configuration |
Single |
Dimension |
28.5 x 28.5 x 9.8 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls Ltd |
Package Type |
D 34 |
Pin Count |
4 |
Maximum Operating Temperature |
+150 °C |
Height |
9.8 mm |
Length |
28.5 mm |
Width |
28.5 mm |
Diode Technology |
Silicon Junction |
Peak Non-Repetitive Forward Surge Current |
500 Amp |
Peak Reverse Repetitive Voltage |
400 V |
Bridge Type |
Single Phase |
Peak Reverse Current |
10 µA |
Peak Average Forward Current |
35 Amp |
Peak Forward Voltage |
1.14 V |
