| Model No | VS-26MT60 |
| Mounting Type | Through Hole |
| Type of Product | Bridge Rectifier |
| Minimum Operating Temperature | -55 °C |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
VS-26MT60 |
Mounting Type |
Through Hole |
Type of Product |
Bridge Rectifier |
Minimum Operating Temperature |
-55 °C |
Configuration |
Single |

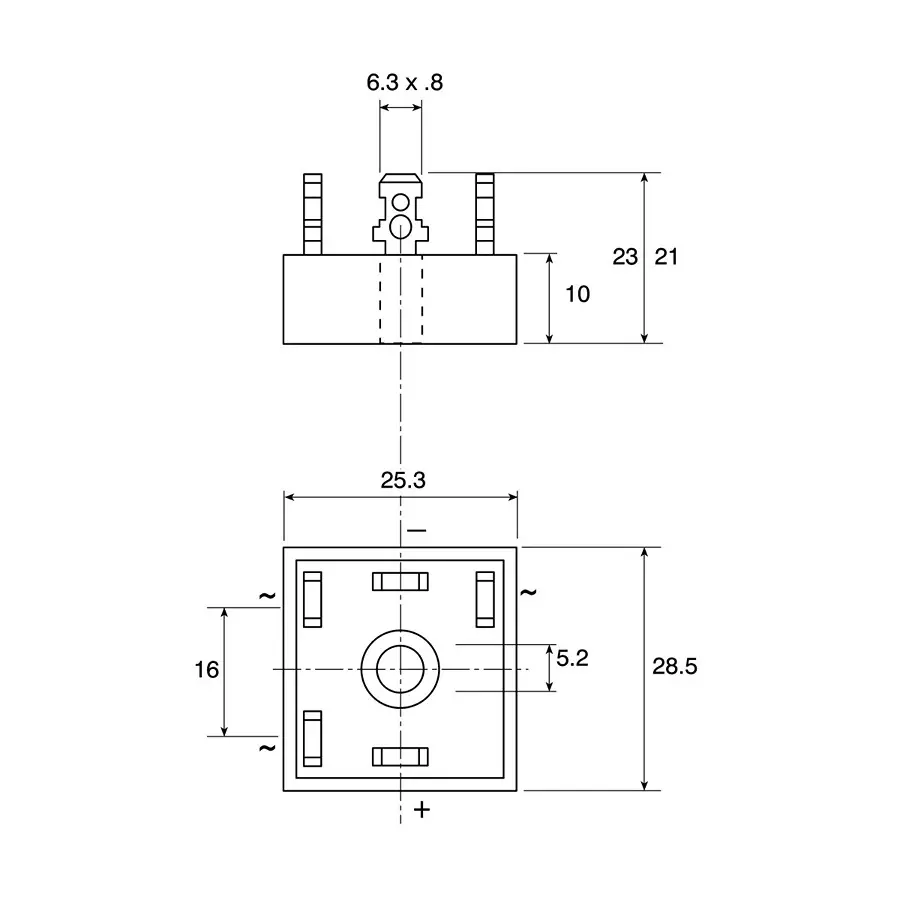

Dimension |
28.5 x 28.5 x 10 mm |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls Ltd |
Package Type |
D 63 |
Pin Count |
5 |
Maximum Operating Temperature |
+150 °C |
Height |
10 mm |
Length |
28.5 mm |
Width |
28.5 mm |
Peak Non-Repetitive Forward Surge Current |
375 Amp |
Peak Reverse Repetitive Voltage |
600 V |
Bridge Type |
Three Phase |
Peak Reverse Current |
200 µA |
Peak Average Forward Current |
25 Amp |
Peak Forward Voltage |
1.26 V |
