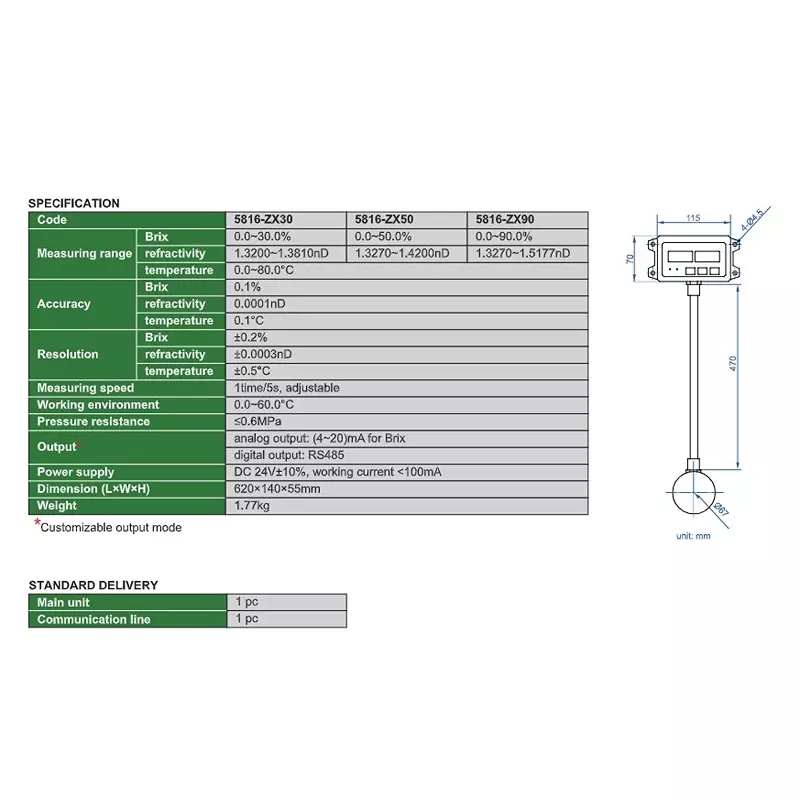

| Resolution | Brix: ±0.2%, Refractivity: ±0.0003 nD, Temperature: ±0.5°C |
| Accuracy | Brix: 0.1%, Refractivity: 0.0001 nD, Temperature: 0.1°C |
| Power Supply | 24 V DC ± 10%, Working Current < 100 mA |
| Dimension | 620x140x55 mm |
Resolution |
Brix: ±0.2%, Refractivity: ±0.0003 nD, Temperature: ±0.5°C |
Accuracy |
Brix: 0.1%, Refractivity: 0.0001 nD, Temperature: 0.1°C |
Power Supply |
24 V DC ± 10%, Working Current < 100 mA |
Dimension |
620x140x55 mm |
Weight |
1.77 Kg |
Model No |
5816-ZX50 |
Type of Product |

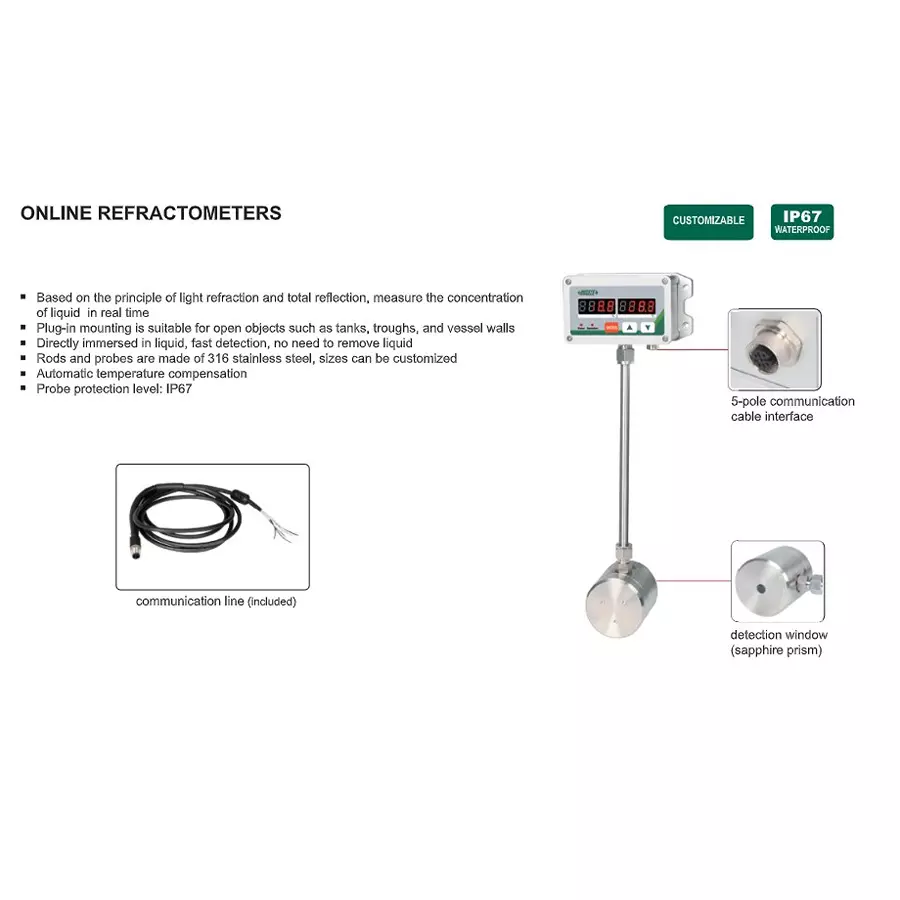

Online Refractometer |
Package Contains |
1 x Main Unit, 1 x Communication Line |
Temperature Range |
0-80°C |
Country of Origin |
China |
Operating Temperature |
0 to 60°C |
Name of Manufacturer/Packer/Importer |
INSZIE |
Measuring speed |
1 time/5 s, Adjustable |
Refractivity |
1.3270 - 1.4200 nD |
Output |
Analog: 4-20 mA for Brix, Digital : RS485 |
Brix |
0-50% |
Pressure Resistance |
≤0.6 MPa |
Measurement Object |
Water Based Coolant, Sugar, Juice |
Reading Method |
Scale |
