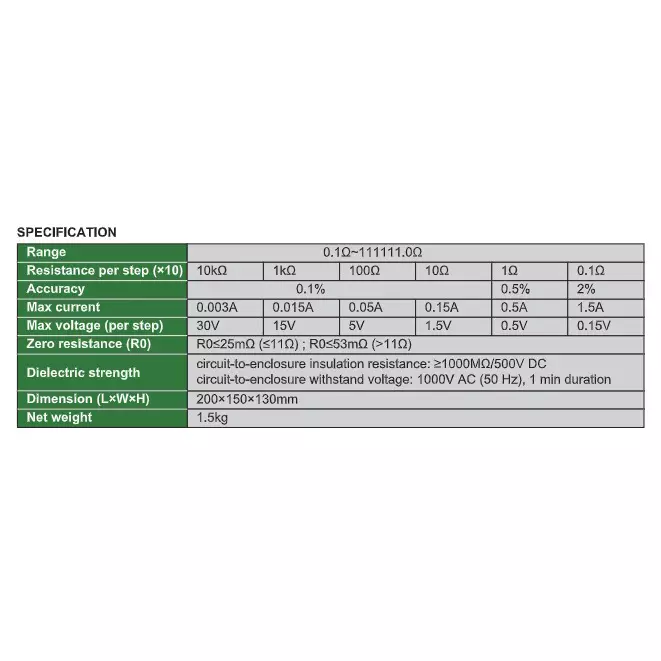

| Accuracy | Basic: 0.1% |
| Model No | 9680-ZX21A |

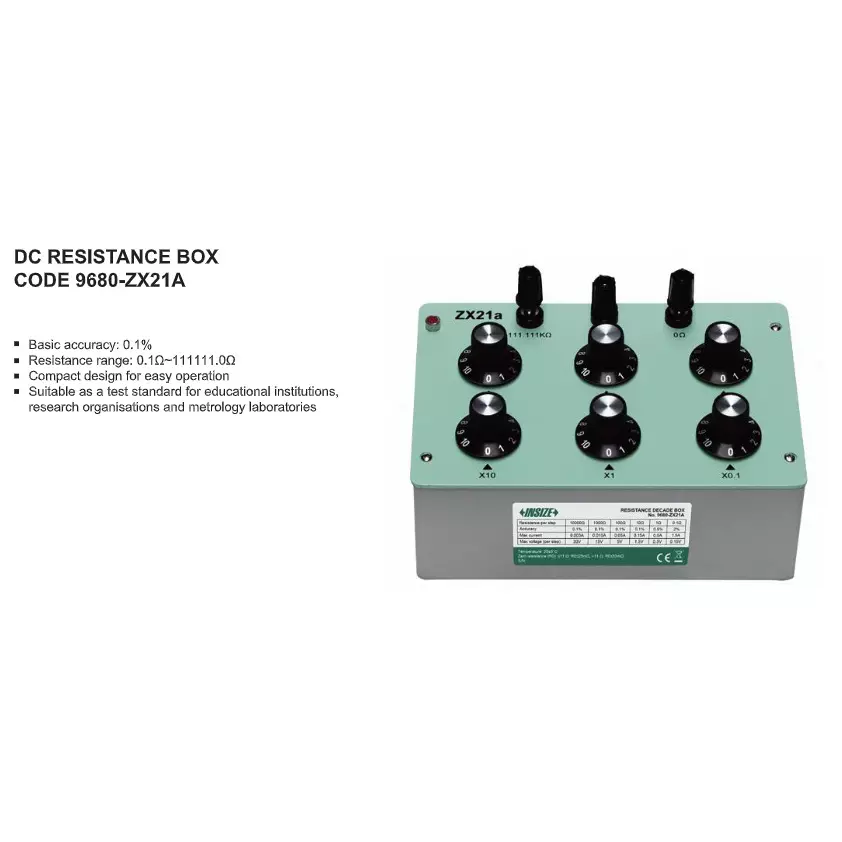

| Type of Product | DC Resistance Box |
| Country of Origin | China |
Accuracy |
Basic: 0.1% |
Model No |
9680-ZX21A |
Type of Product |
DC Resistance Box |
Country of Origin |
China |
Dimension |
200x150x130 mm |
Name of Manufacturer/Packer/Importer |
INSIZE |
Resistance |
Zero: R0≤25 mΩ, (≤11 Ω), R0≤53 mΩ (>11 Ω) |
Maximum Voltage |
30 V, 15 V, 5 V, 1.5 V, 0.5 V, 0.15 V |
Suitable For |
Educational Institutions, Research Organisations And Metrology Laboratories |
Resistance Range |
0.1 Ω - 111111.0 Ω |
Insulation Resistance |
Circuit to Enclosure: ≥1000 MΩ/500 V DC |
Net Weight |
1.5 Kg |
Design |
Compact |
Maximum Current |
0.003 A, 0.015 A, 0.05 A, 0.15 A, 0.5 A, 1.5 A |
Withstand Voltage |
Circuit to Enclosure: 1000 V AC (50 Hz) |
