| Type of Product | Air Riveter |
| Model No | R2A2 |
| Air Pressure | 0.5 to 0.6(MPa) |
| Country of Origin | Japan |
Type of Product |
Air Riveter |
Model No |
R2A2 |
Air Pressure |
0.5 to 0.6(MPa) |
Country of Origin |
Japan |
Rivet Diameter |
Φ4.8, Φ6.4 mm Optional: High strength rivet S bolt |
Name of Manufacturer/Packer/Importer |
Lobtex Co., Ltd. |
Included Components |
Nosepiece (for Φ4.8, Φ6.4), guide pipe (for Φ4.8, Φ6.4) |
Jaw |
CJL (Super Hard Large) |
Monotaro ID |
7450847 |
Import Country |
Direct Import from Japan |
RoHS Directive |
Correspondence |
Noise Level (dB) |
Equivalent sound pressure level LAeq 80 or less |
Stroke (mm) |
25 |

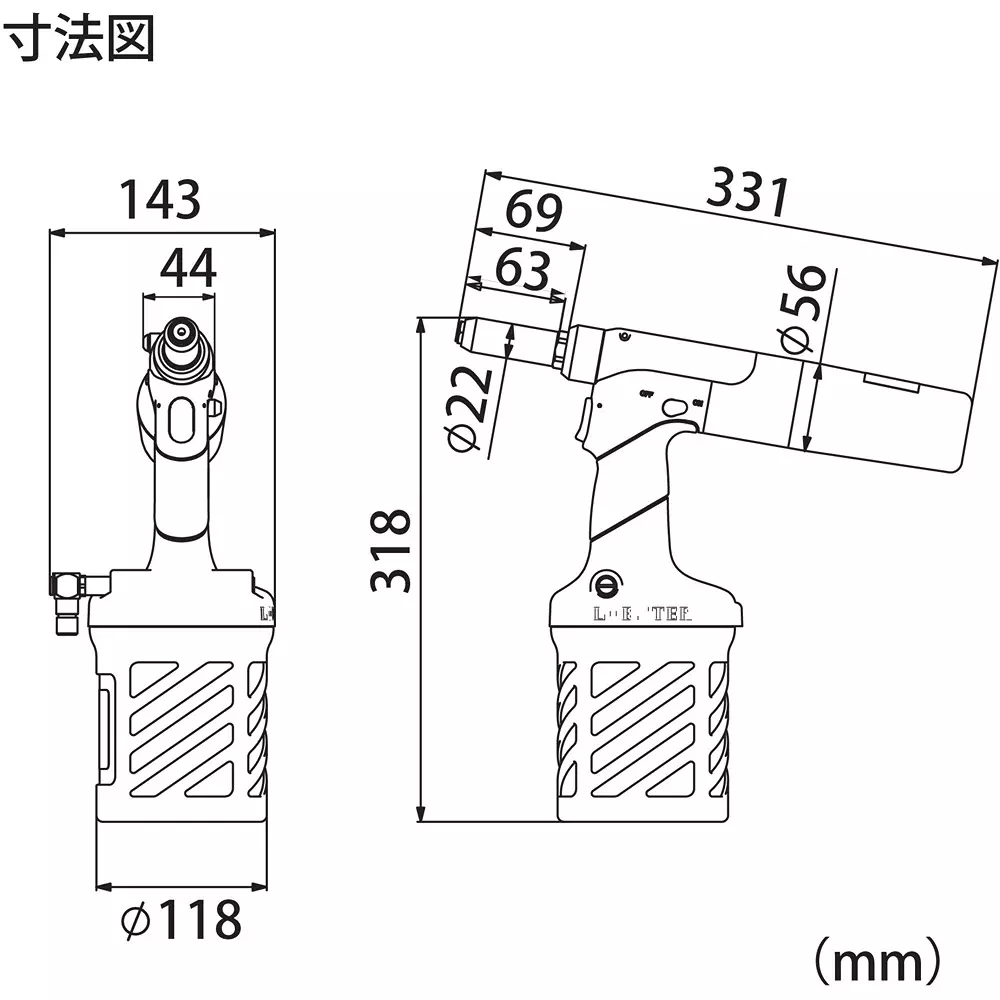

Dimensions (L x B x H / T) (mm) |
331x318x143 |
Range (mm) |
4.8, 6.4 |
Output |
Tool pulling force 18.5kN (air pressure 0.6MPa suction) |
Overall Length (mm) |
331 |
Air Volume |
(Usage) Air consumption per minute: 105/min L or less (air pressure 0.6 MPa when suctioning) |
Trusco Part No. |
668-8577 |
Specification Class |
Vacuum ON/OFF switch included |
