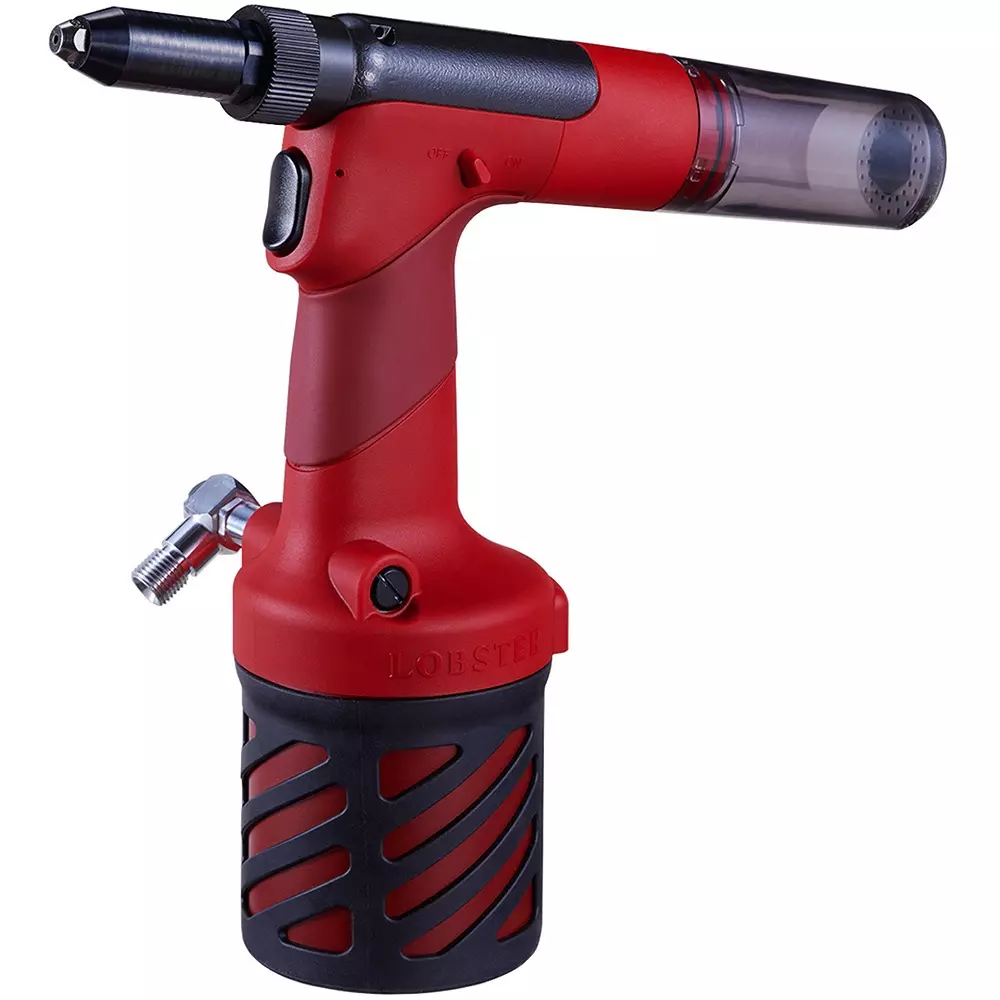

| Type of Product | Air Riveter |
| Model No | R2A1 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Lobtex Co., Ltd. |
Type of Product |
Air Riveter |
Model No |
R2A1 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Lobtex Co., Ltd. |
Monotaro ID |
70383366 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
1.25 (excluding cover) |
Noise Level (dB) |
(Equivalent sound level LAeq) 75 or less |
Stroke (mm) |
19 |
Range (mm) |
Φ2.4, Φ3.2, Φ4.0, Φ4.8 |
Tensile Strength (kN) |
9.0 (air pressure 0.6MPa, when suctioning) |

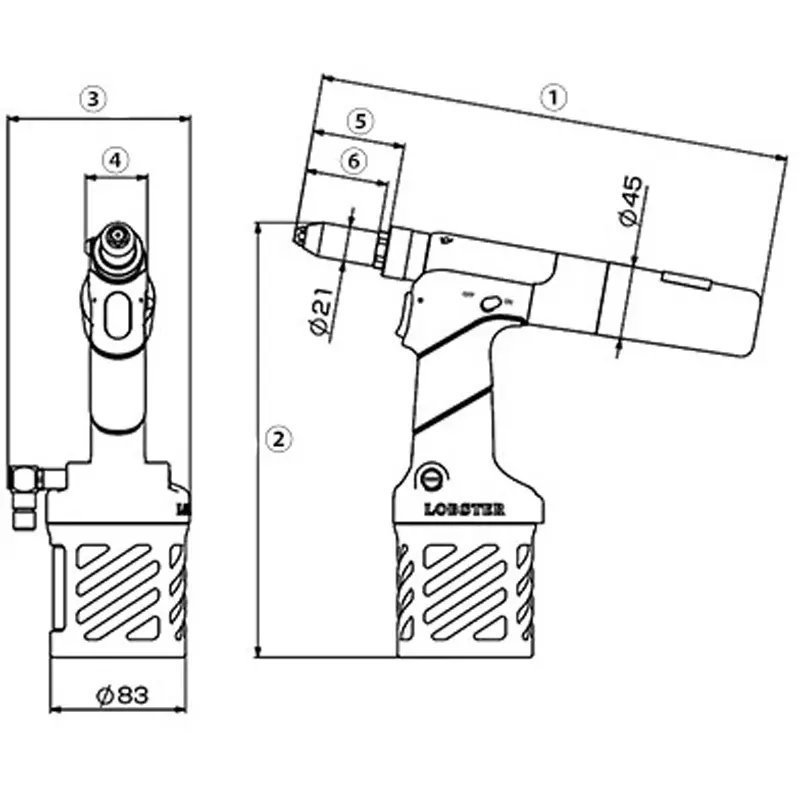

Dimensions 2 (mm) |
267 |
Dimensions 1 (mm) |
290 |
Suitable Air Pressure (MPa) |
0.5 to 0.6 |
Dimensions 4 (mm) |
38 |
Dimensions 3 (mm) |
112 |
Dimensions 5 (mm) |
57 |
Set Contents |
Nosepiece (Φ2.4, Φ3.2, Φ4.0, Φ4.8), guide pipe (for Φ2.4, Φ3.2), guide pipe collar (for Φ4.0, Φ4.8) |
Dimensions 6 (mm) |
51 |
