| Type of Product | Air Riveter |
| Model No | AR011HX |
| Jaw | Super hard jaw medium / large |
| Country of Origin | Japan |
Type of Product |
Air Riveter |
Model No |
AR011HX |
Jaw |
Super hard jaw medium / large |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Lobtex Co., Ltd. |
Monotaro ID |
49359862 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
773-2694 |
Mass (Kg) |
2.1 |
Working Air Pressure (MPa) |
0.5 to 0.6 |
Range (mm) |
2.4, 3.2, 4.0, 4.8, 6.4 |
Stroke (mm) |
16.5 |

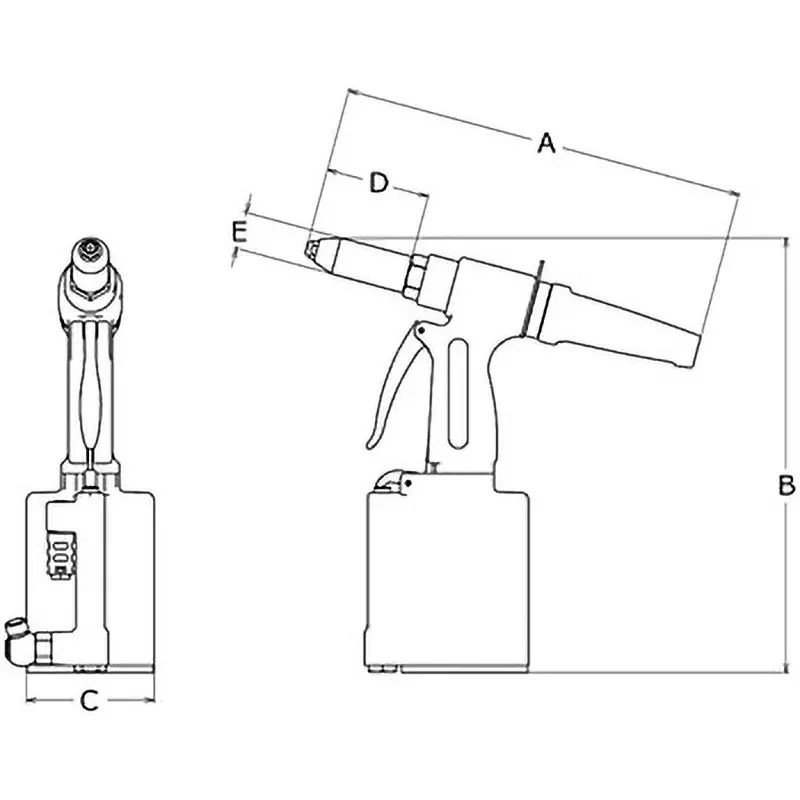

Dimension B (Φmm) |
312 |
Dimension C (Φmm) |
90 |
Dimension E (Φmm) |
25 |
Dimension A (Φmm) |
272 |
Dimension D (Φmm) |
77 |
Specification Class |
(tool tension) 14kN |
