Ships within 25 days
View
View
View
View
| Type of Product | Elbow LHSA (Left Thread) |
| Model No | LHSA10ML |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Type of Product |
Elbow LHSA (Left Thread) |
Model No |
LHSA10ML |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10300315 |

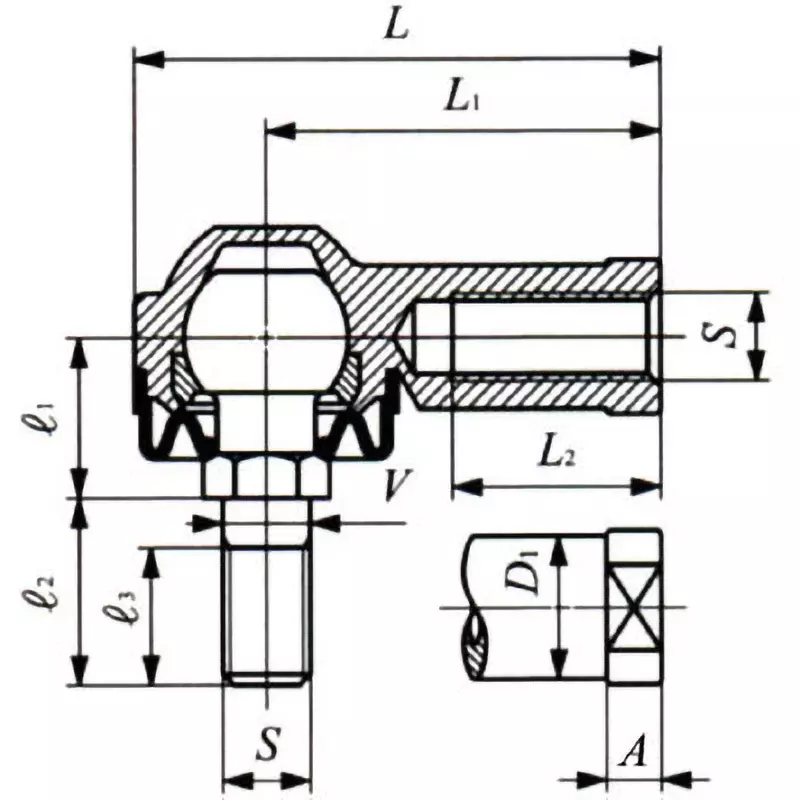

Mass (g) |
106 g |
Dimension L (mm) |
57 |
Dimension L1 |
43 mm |
Dimension L2 |
23 mm |
Dimension D2 (mm) |
19 |
Dimension L3 (mm) |
17 |
Dimension D1 (mm) |
15 |
Remark |
Grease-filled product. |
Specifications |
1N≒0.102Kgf |
Dimension W1 (mm) |
17 |
Screw Direction |
Left-hand thread |
S (screw) |
M10×1.5 |
Dimension P |
12 mm |
Dimension V (mm) |
10 |
Dimensions D (mm) |
28 |
Dimensions A (mm) |
6.5 |
Dimension W2 (mm) |
17 |
