| Type of Product | Elbow LHS (Right Thread) |
| Model No | LHS12 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Type of Product |
Elbow LHS (Right Thread) |
Model No |
LHS12 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10300561 |
Mass (g) |
160 g |

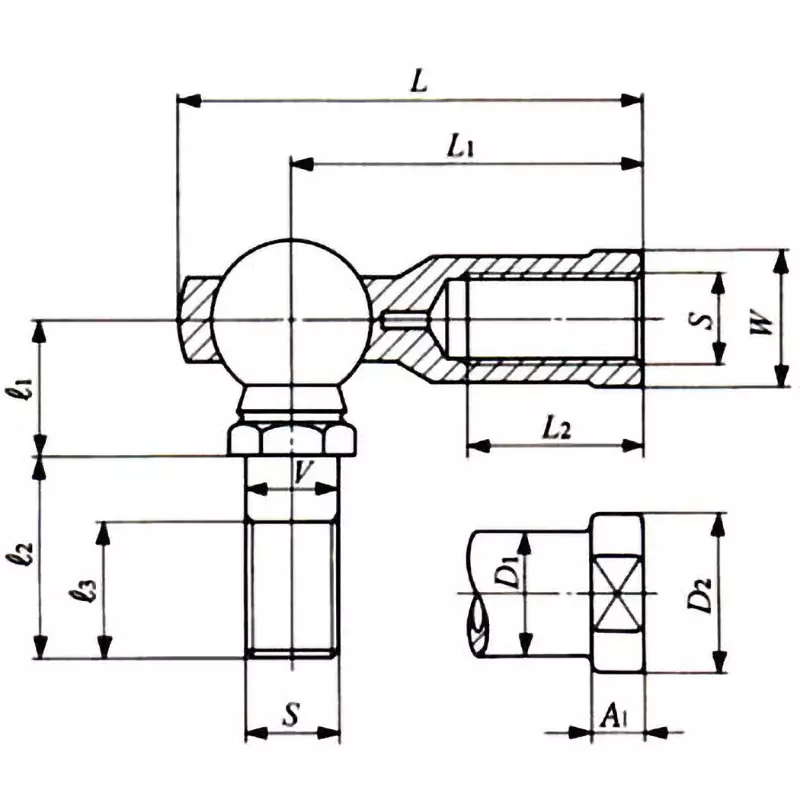

Dimension L (mm) |
66 |
Dimension L1 |
50 mm |
Dimension L2 |
27 mm |

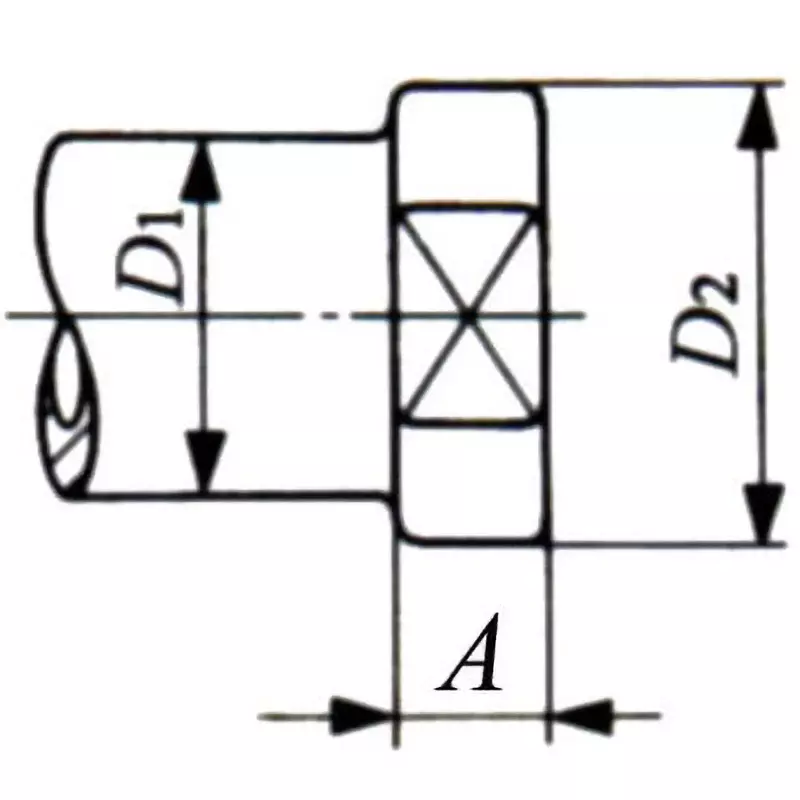

Dimension D2 (mm) |
22 |
Dimension W |
19 mm |
Dimension L3 (mm) |
20 |
Dimension D1 (mm) |
17.5 |
Remark |
Grease is not sealed. Use proper lubrication. |
Specifications |
1N≒0.102Kgf |
Screw Direction |
Right-handed screw |
S (screw) |
M12×1.75 |
Dimension P |
17 mm |
Dimension V (mm) |
12 |

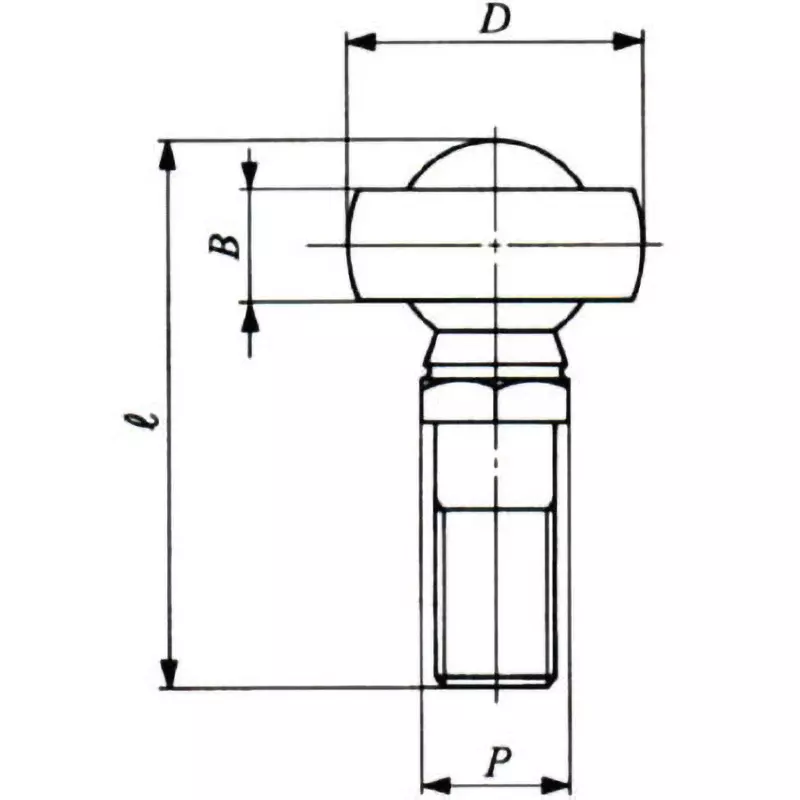

Dimensions D (mm) |
32 |
Dimensions A (mm) |
6.5 |
Static load capacity (N) |
12400 |
