Ships within 25 days
View
View
View
View
| Type of Product | L-Ball LHS (Left-Hand Thread) |
| Model No | LHS18L |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Type of Product |
L-Ball LHS (Left-Hand Thread) |
Model No |
LHS18L |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10300491 |
Mass (g) |
445 g |

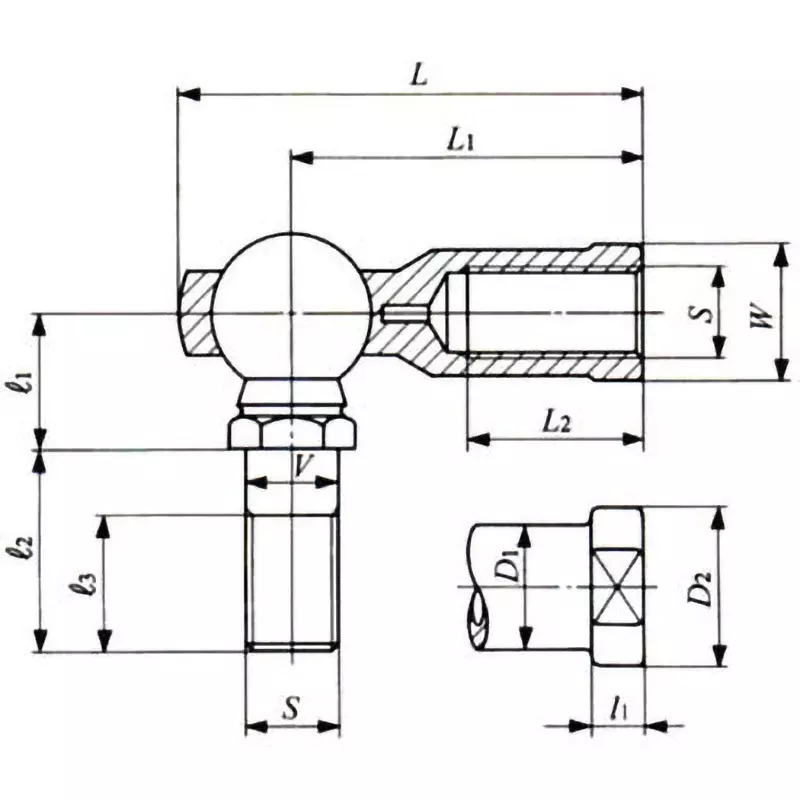

Dimension L (mm) |
93.5 |
Dimension L1 |
71 mm |
Dimension L2 |
40 mm |
Dimension D2 (mm) |
31 |
Dimension W |
27 mm |
Dimension L3 (mm) |
25 |

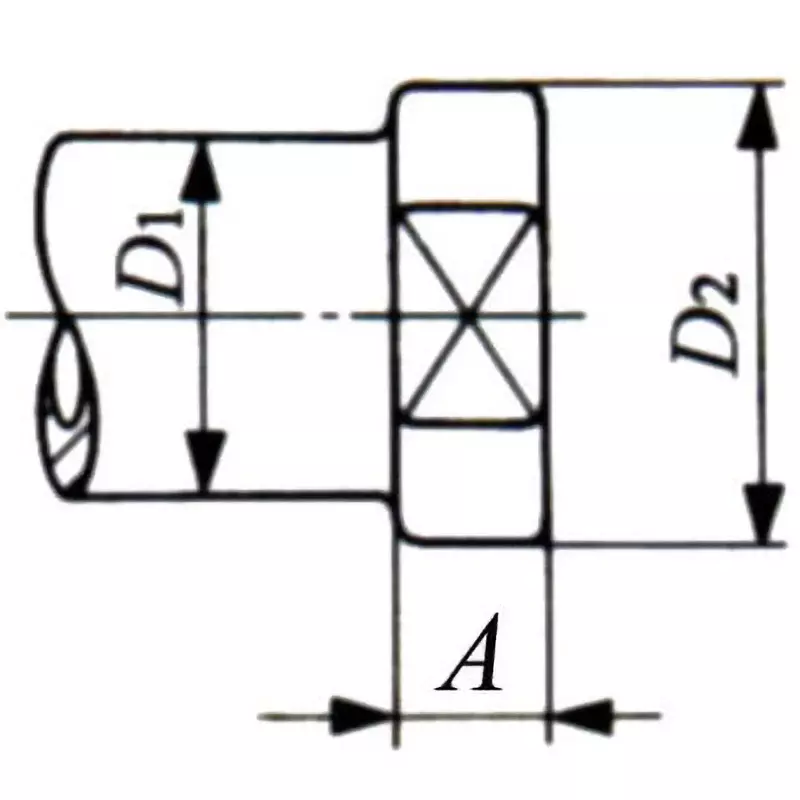

Dimension D1 (mm) |
25 |
Remark |
Grease is not sealed. Use proper lubrication. |
Specifications |
1N≒0.102Kgf |
Screw Direction |
Left-hand thread |
S (screw) |
M18×1.5 |
Dimension P |
22 mm |
Dimension V (mm) |
18 |
Dimensions D (mm) |
45 |
Dimensions A (mm) |
10 |
Diameter (Φmm) |
31.75 (ball) |
