| Type of Product | Elbow LHSA (Left Thread) |
| Model No | LHSA12L |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Type of Product |
Elbow LHSA (Left Thread) |
Model No |
LHSA12L |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10300324 |
Mass (g) |
180 g |

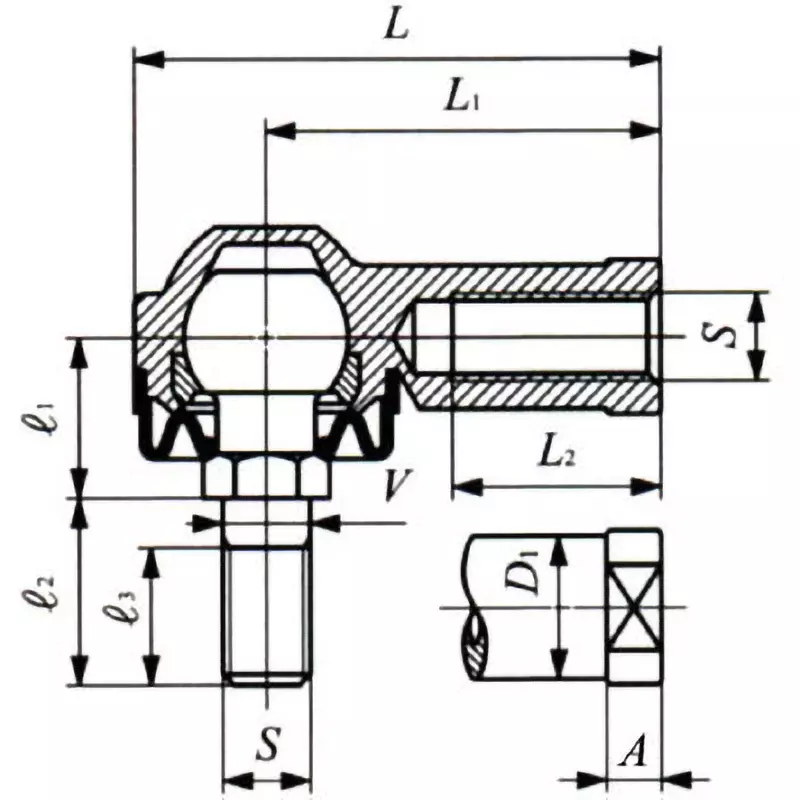

Dimension L (mm) |
67 |
Dimension L1 |
50 mm |
Dimension L2 |
27 mm |
Dimension D2 (mm) |
22 |
Dimension L3 (mm) |
20 |
Dimension D1 (mm) |
17.5 |
Remark |
Grease-filled product. |
Specifications |
1N≒0.102Kgf |

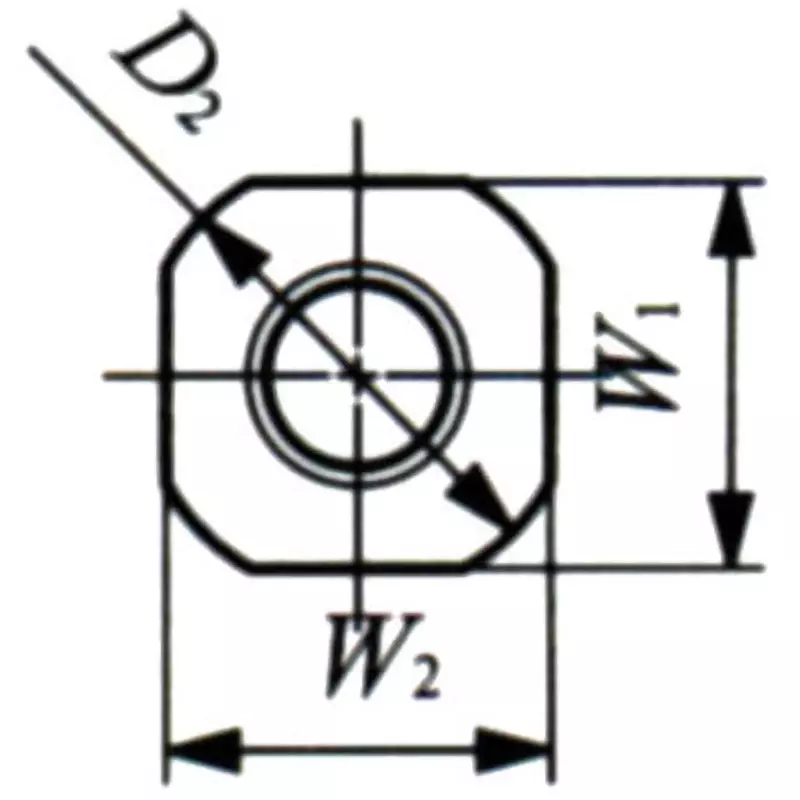

Dimension W1 (mm) |
19 |
Screw Direction |
Left-hand thread |
S (screw) |
M12×1.75 |
Dimension P |
14 mm |
Dimension V (mm) |
12 |

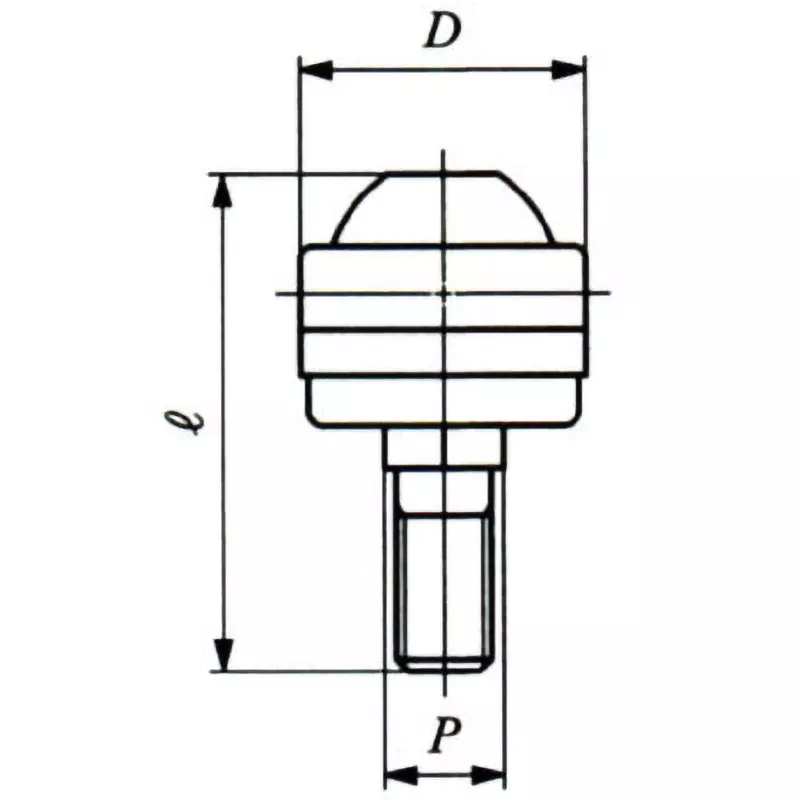

Dimensions D (mm) |
34 |
Dimensions A (mm) |
6.5 |
Dimension W2 (mm) |
19 |
