| Type of Product | L-Ball LHS (Left-Hand Thread) |
| Model No | LHS16L |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Type of Product |
L-Ball LHS (Left-Hand Thread) |
Model No |
LHS16L |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10300482 |
Mass (g) |
300 g |

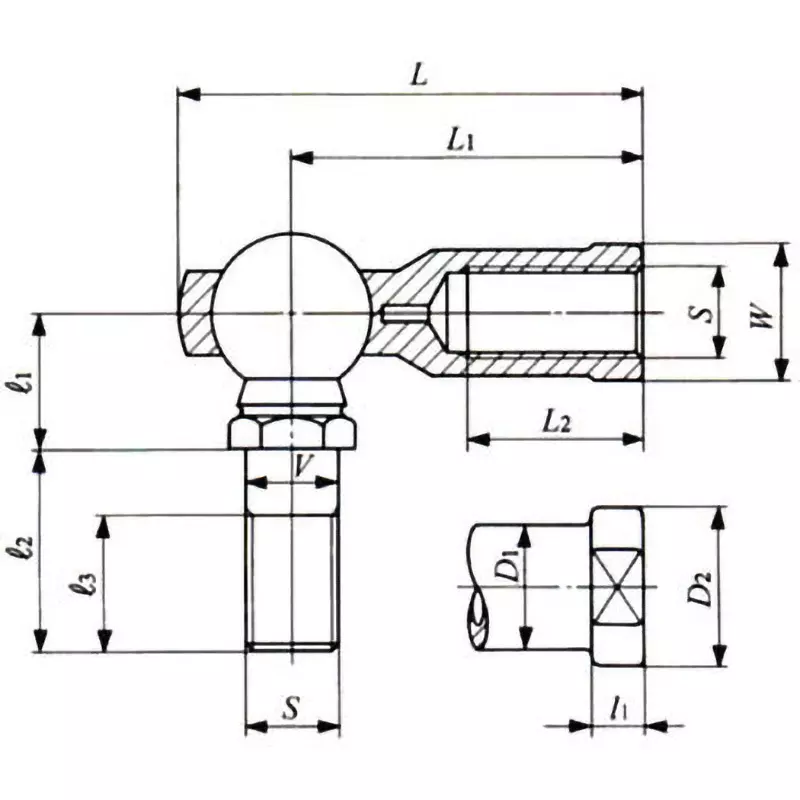

Dimension L (mm) |
84 |
Dimension L1 |
64 mm |
Dimension L2 |
36 mm |
Dimension D2 (mm) |
27 |
Dimension W |
22 mm |
Dimension L3 (mm) |
23 |
Dimension D1 (mm) |
22 |
Remark |
Grease is not sealed. Use proper lubrication. |
Specifications |
1N≒0.102Kgf |
Screw Direction |
Left-hand thread |
S (screw) |
M16×2 |
Dimension P |
19 mm |
Dimension V (mm) |
16 |
Dimensions D (mm) |
40 |
Dimensions A (mm) |
8 |
Diameter (Φmm) |
28.575 (ball) |
