| Type of Product | L-Ball LHS (Left-Hand Thread) |
| Model No | LHS10L |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Type of Product |
L-Ball LHS (Left-Hand Thread) |
Model No |
LHS10L |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10300455 |
Mass (g) |
102 g |

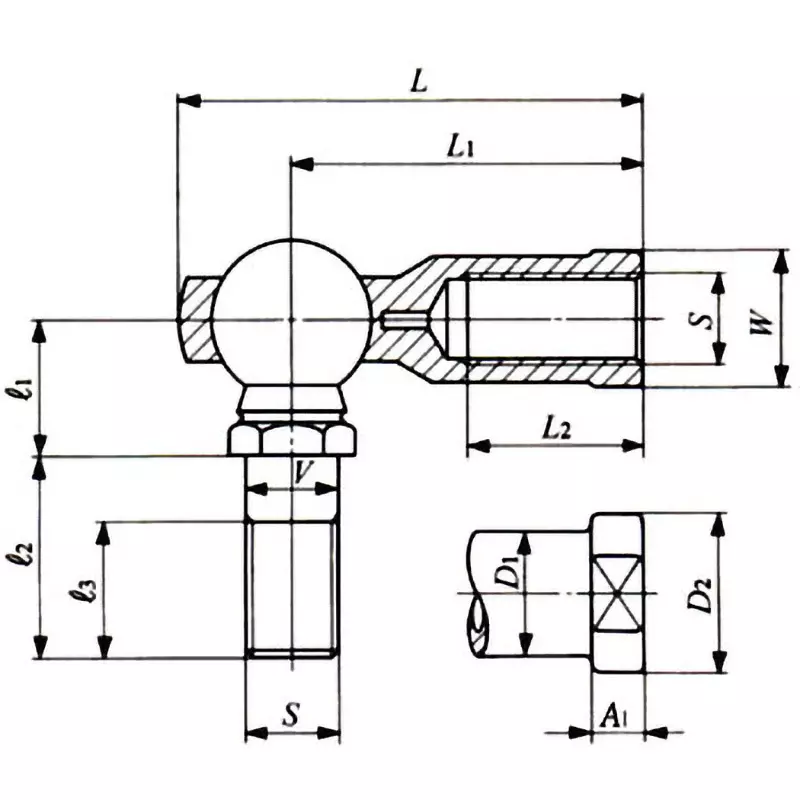

Dimension L (mm) |
57 |
Dimension L1 |
43 mm |
Dimension L2 |
23 mm |

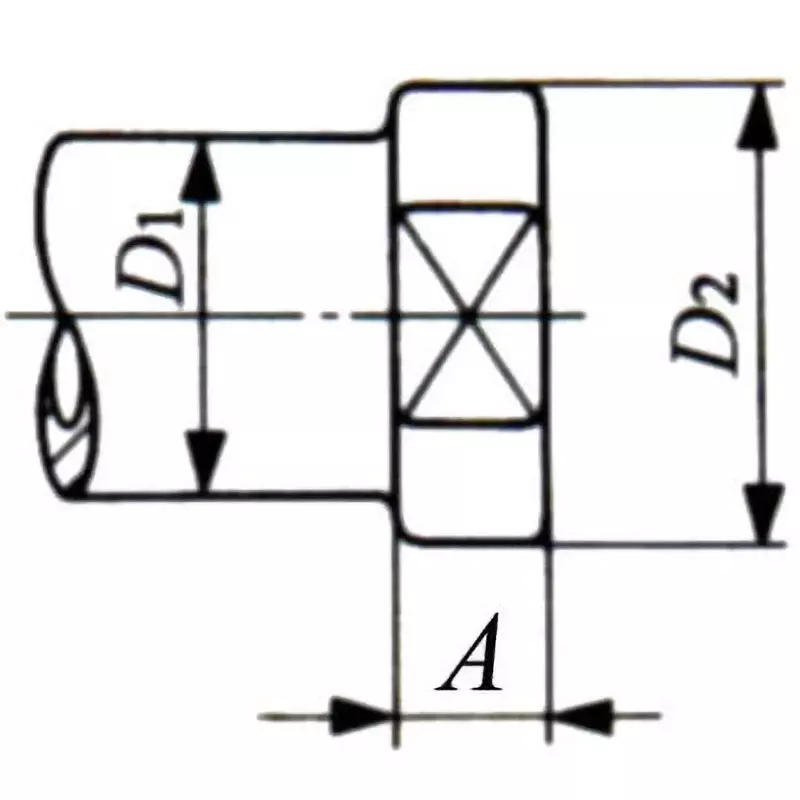

Dimension D2 (mm) |
19 |
Dimension W |
17 mm |
Dimension L3 (mm) |
18 |
Dimension D1 (mm) |
15 |
Remark |
Grease is not sealed. Use proper lubrication. |
Specifications |
1N≒0.102Kgf |
Screw Direction |
Left-hand thread |
S (screw) |
M10×1.5 |
Dimension P |
13 mm |
Dimension V (mm) |
10 |

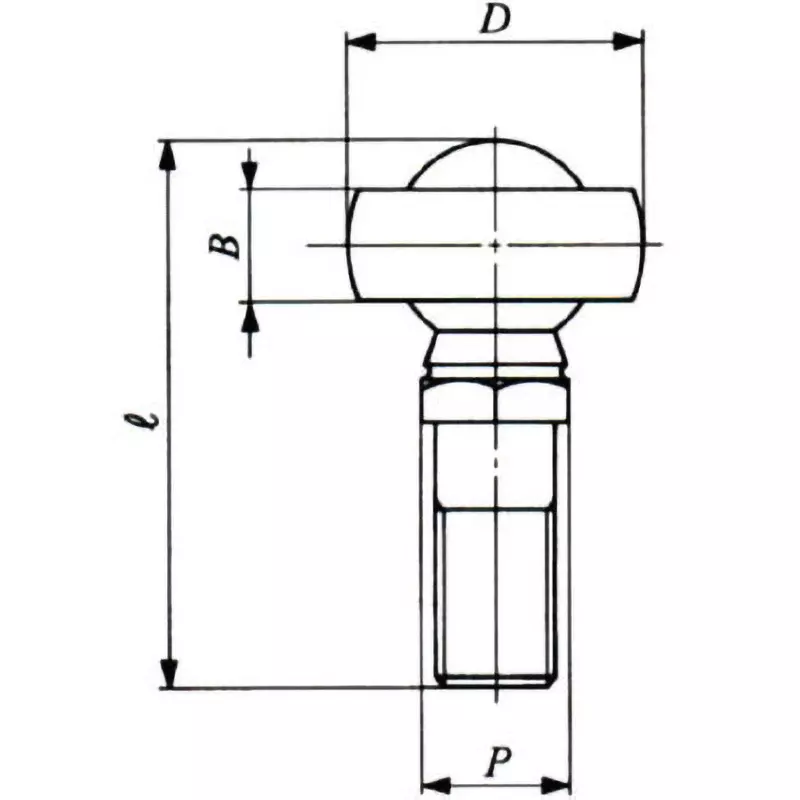

Dimensions D (mm) |
28 |
Dimensions A (mm) |
6.5 |
Static load capacity (N) |
7640 |
