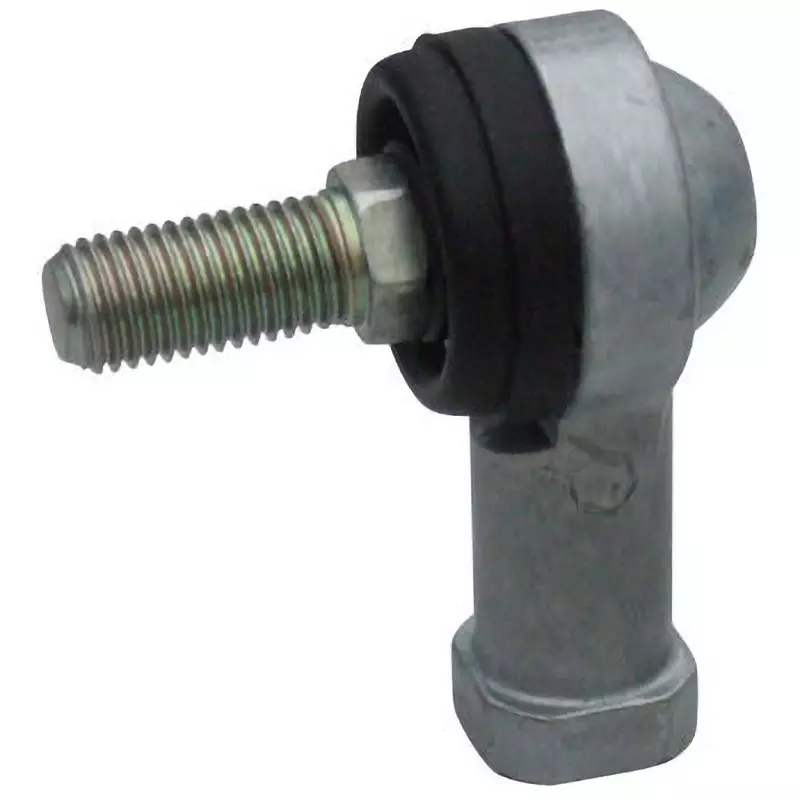

| Type of Product | Elbow LHSA (Left Thread) |
| Model No | LHSA14L |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Type of Product |
Elbow LHSA (Left Thread) |
Model No |
LHSA14L |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10300333 |
Mass (g) |
260 g |

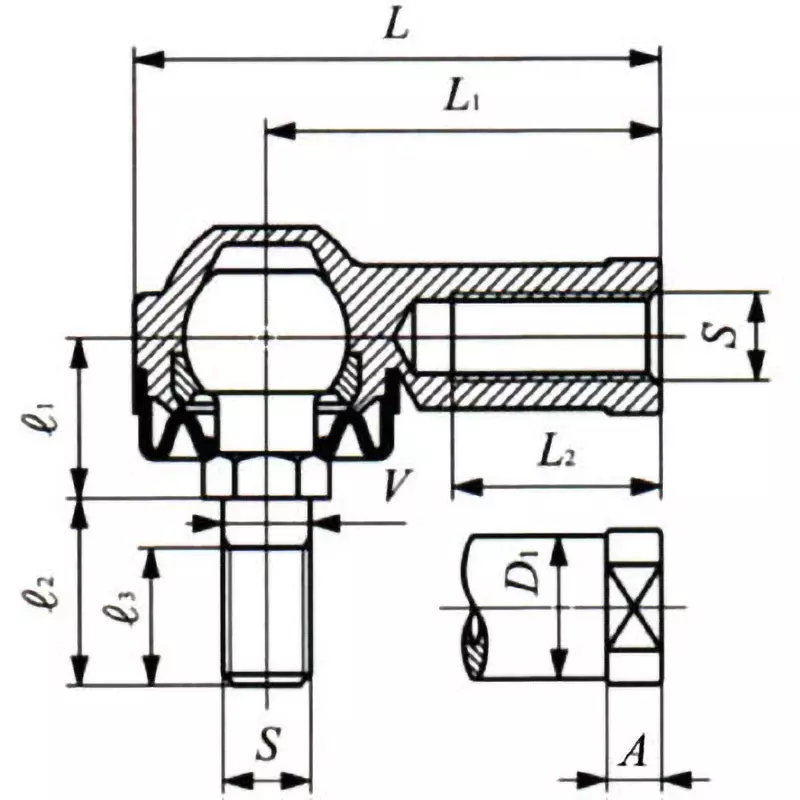

Dimension L (mm) |
76 |
Dimension L1 |
57 mm |
Dimension L2 |
30 mm |
Dimension D2 (mm) |
25 |
Dimension L3 (mm) |
22 |
Dimension D1 (mm) |
20 |
Remark |
Grease-filled product. |
Specifications |
1N≒0.102Kgf |

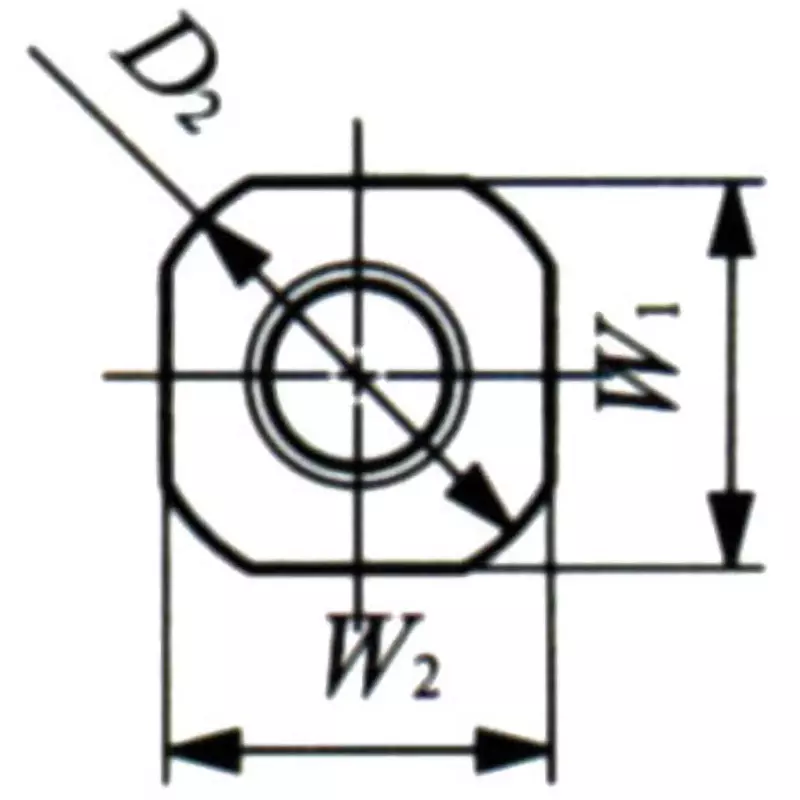

Dimension W1 (mm) |
22 |
Screw Direction |
Left-hand thread |
S (screw) |
M14×2 |
Dimension P |
17 mm |
Dimension V (mm) |
14 |
Dimensions D (mm) |
38 |
Dimensions A (mm) |
8 |
Dimension W2 (mm) |
22 |
