| Type of Product | Elbow LHS (Right Thread) |
| Model No | LHS14 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Type of Product |
Elbow LHS (Right Thread) |
Model No |
LHS14 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10300577 |
Mass (g) |
227 g |

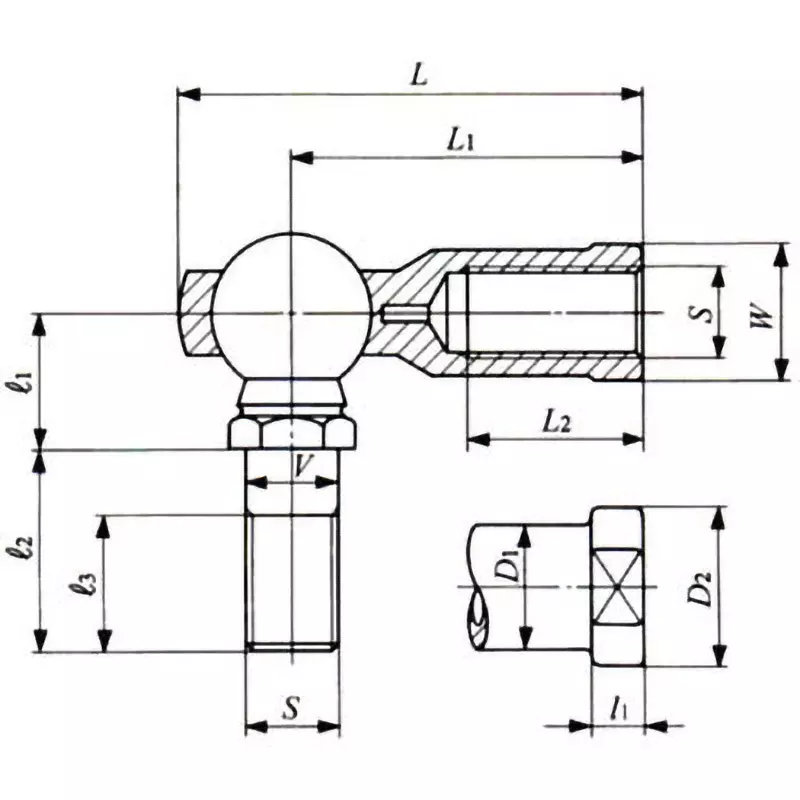

Dimension L (mm) |
75 |
Dimension L1 |
57 mm |
Dimension L2 |
30 mm |

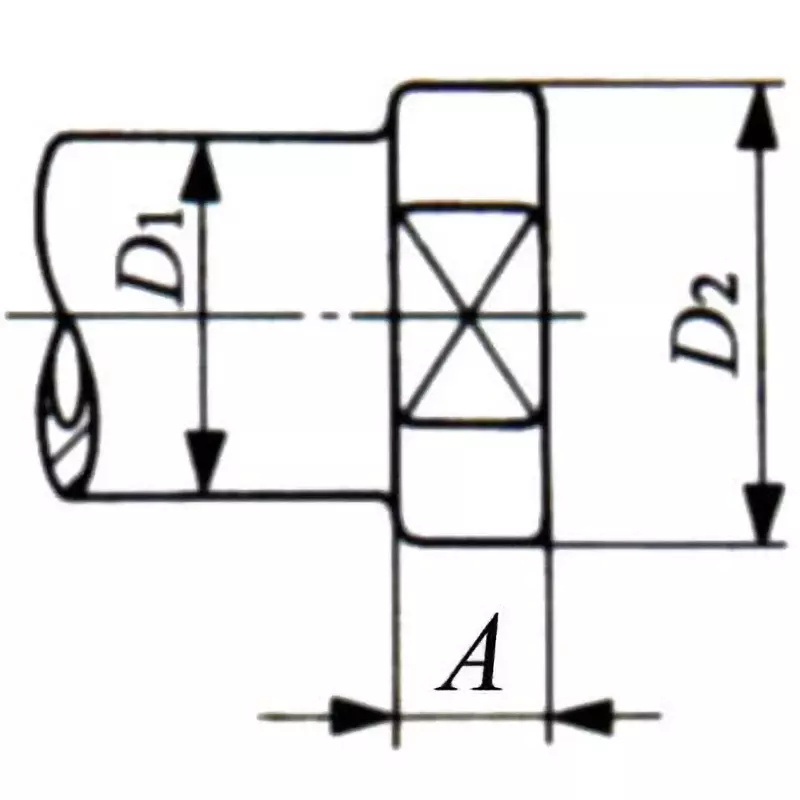

Dimension D2 (mm) |
25 |
Dimension W |
22 mm |
Dimension L3 (mm) |
22 |
Dimension D1 (mm) |
20 |
Remark |
Grease is not sealed. Use proper lubrication. |
Specifications |
1N≒0.102Kgf |
Screw Direction |
Right-handed screw |
S (screw) |
M14×2 |
Dimension P |
17 mm |
Dimension V (mm) |
14 |

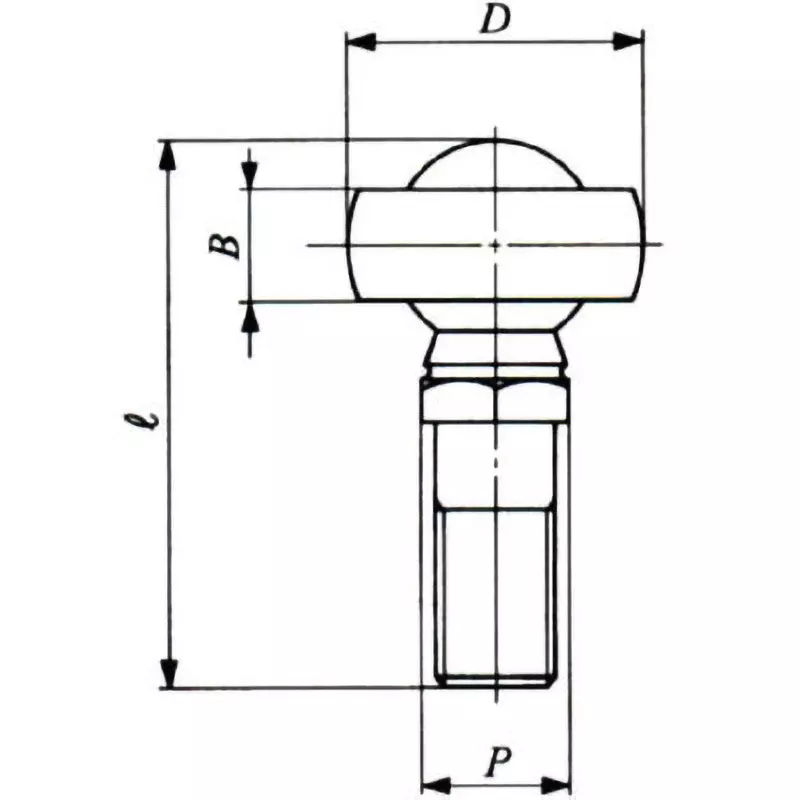

Dimensions D (mm) |
36 |
Dimensions A (mm) |
8 |
Static load capacity (N) |
14600 |
