| Type of Product | L-Ball LHS (Left-Hand Thread) |
| Model No | LHS22L |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Type of Product |
L-Ball LHS (Left-Hand Thread) |
Model No |
LHS22L |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10300516 |
Mass (g) |
765 g |
Dimension L (mm) |
111 |
Dimension L1 |
84 mm |
Dimension L2 |
47 mm |

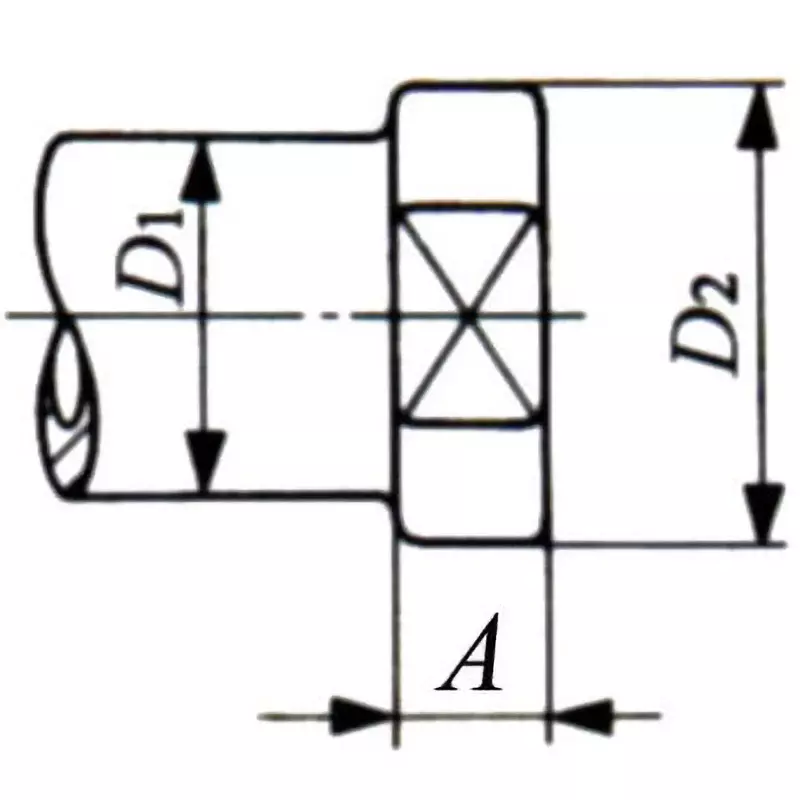

Dimension D2 (mm) |
37 |
Dimension W |
32 mm |
Dimension L3 (mm) |
30 |
Dimension D1 (mm) |
30 |
Remark |
Grease is not sealed. Use proper lubrication. |
Specifications |
1N≒0.102Kgf |
Screw Direction |
Left-hand thread |
S (screw) |
M22×1.5 |

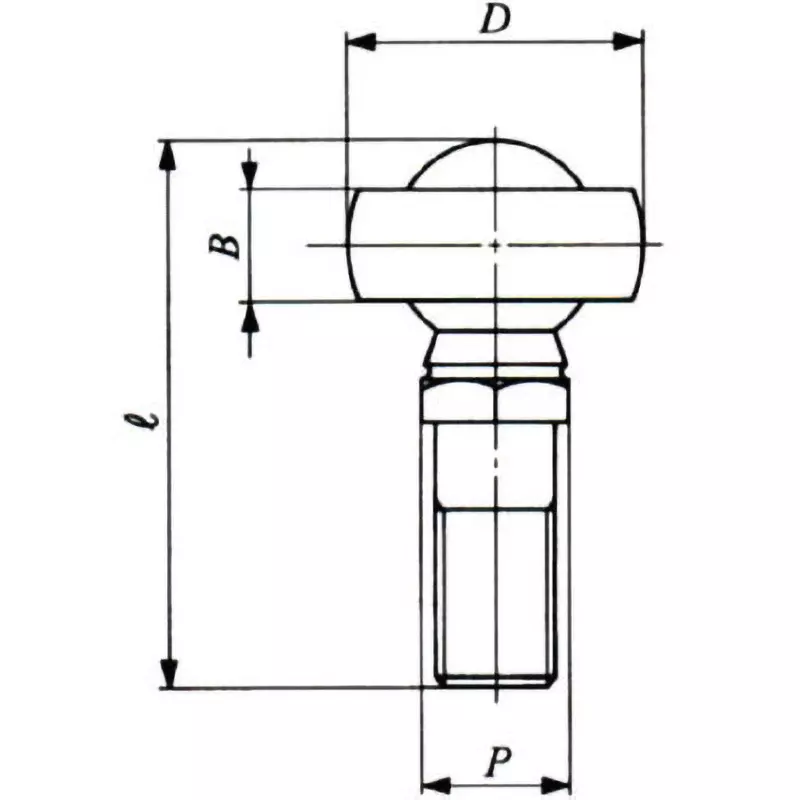

Dimension P |
27 mm |
Dimension V (mm) |
22 |
Dimensions D (mm) |
54 |
Dimensions A (mm) |
12 |
Diameter (Φmm) |
38.1 (ball) |
