Ships within 19 days
Dimension d
Model No
View
View
View
View

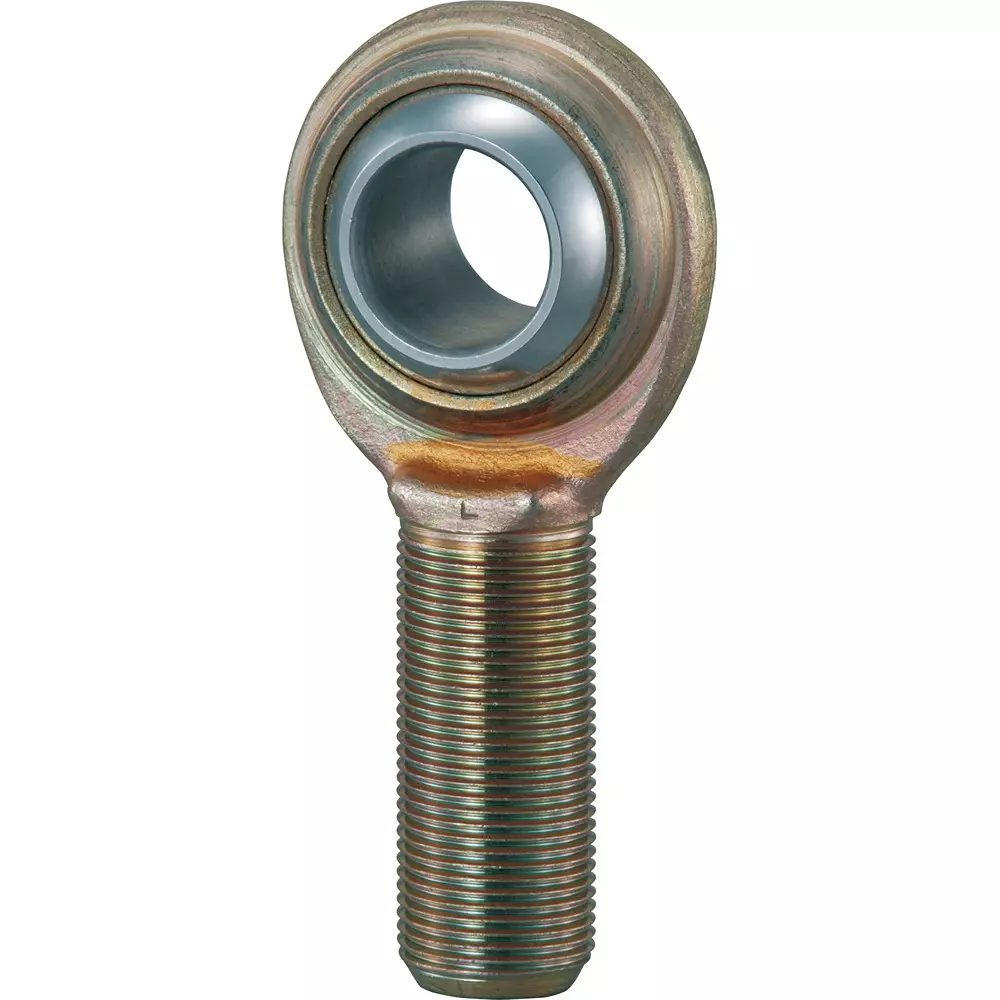

| Type of Product | Rod End |
| Model No | NOS12T |
| Thread Type | Right-Hand Thread Type |
| Material | Holder: S35C (chromate treatment) Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating, but inner ring inner diameter is not treated) Bush: Self-lubricating synthetic resin |
Type of Product |
Rod End |
Model No |
NOS12T |
Thread Type |
Right-Hand Thread Type |
Material |
Holder: S35C (chromate treatment) Spherical inner ring: SUJ2 HRC58 or higher (hard chrome plating, but inner ring inner diameter is not treated) Bush: Self-lubricating synthetic resin |
Country of Origin |
Japan |
Type |
Oil-Free Male Threaded Type |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
6335567 |
Mass (g) |
85 |
Dimension B (Φmm) |
12 |
Dimension L (mm) |
69 |
Dimension L1 |
54 mm |
Dimension L2 |
33 mm |
JIS Class |
JIS Class 2 |
Dimension S |
M12x1.75 mm |
RoHS Directive |
Correspondence |
Width B1 (mm) |
16 |
Dimension C |
0.5 mm |
Dimension D1 (mm) |
15.4 |
Dimension d |
12 mm |
